15. Make sure that all parts are properly tightened before you use the treadmill. Keep the included hex keys
in a secure place. One of the hex keys is used to adjust the walking belt (see page 20). To protect the floor or
carpet, place a mat under the treadmill.
13. Attach the Latch Housing (48) to the Left Upright
(53) with two #10 x 1” Screws (58); start both
Screws, and then tighten both of them.
58
48
53
13
14. Raise the treadmill to the storage position (see
HOW TO FOLD THE TREADMILL FOR STOR-
AGE on page 17). Attach an Incline Leg (95) to
each side of the Frame (51) with an M8 x 52mm
Bolt (82), two M8 Flat Washers (72), and an M8
Nut (46) as shown. Note: Do not overtighten
the Nuts. The Incline Legs should rotate eas-
ily.
Adjust the Incline Legs (95) to the desired in-
cline (see page 16).
Lower the treadmill (see page 18).
95
72
82
46
72
72
46
95
82
72
14

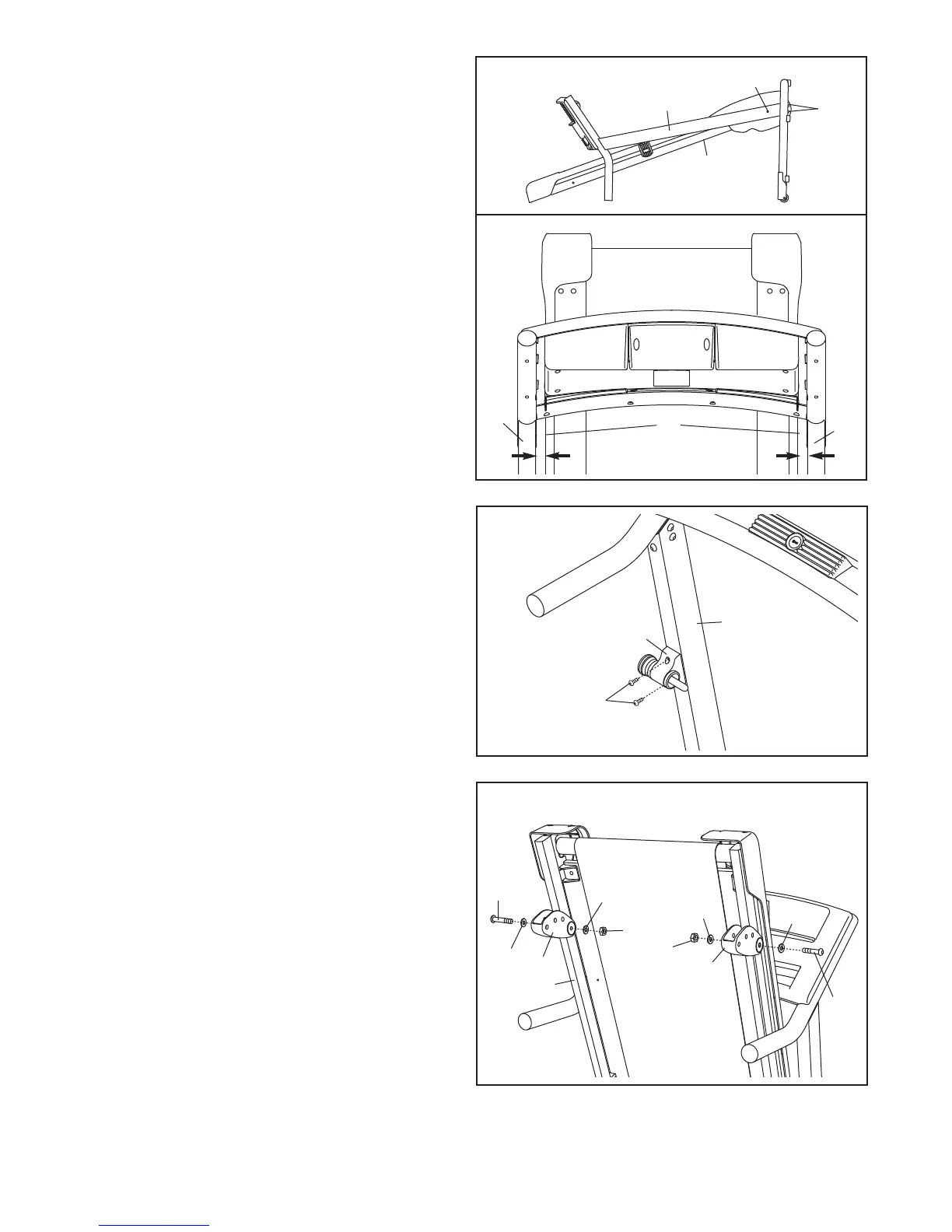

12. See the lower drawing. Position the Uprights
(53, 54) so that the treadmill Frame (51) is cen-
tered between the Uprights.
Firmly tighten the two M10 x 110mm Bolts (1)
a
nd the four M10 x R0710Amm Bolts (2). Be
careful not to overtighten the M10 x 110mm
Bolts.
Raise the Uprights (53, 54).
12
2
51
1
53
51
54
Top View
11
51
53, 54
