10. Set the Console (91) on the Uprights (53, 54).
Make sure that no wires are pinched. Start
four M8 x 15mm Bolts (8) with four M8 Star
Washers (5) into the Uprights as shown. Do not
tighten the Bolts yet.
10
8
8
5
5
91
54
53
11. Start an M8 x 15mm Bolt (8) with an M8 Star
Washer (5) into each Upright (53, 54). Then,
firmly tighten all six M8 x 15mm Bolts (8).
With the help of a second person, carefully
lower the Uprights (53, 54) to the floor.
11
8
8
8
5
8
5
54
53

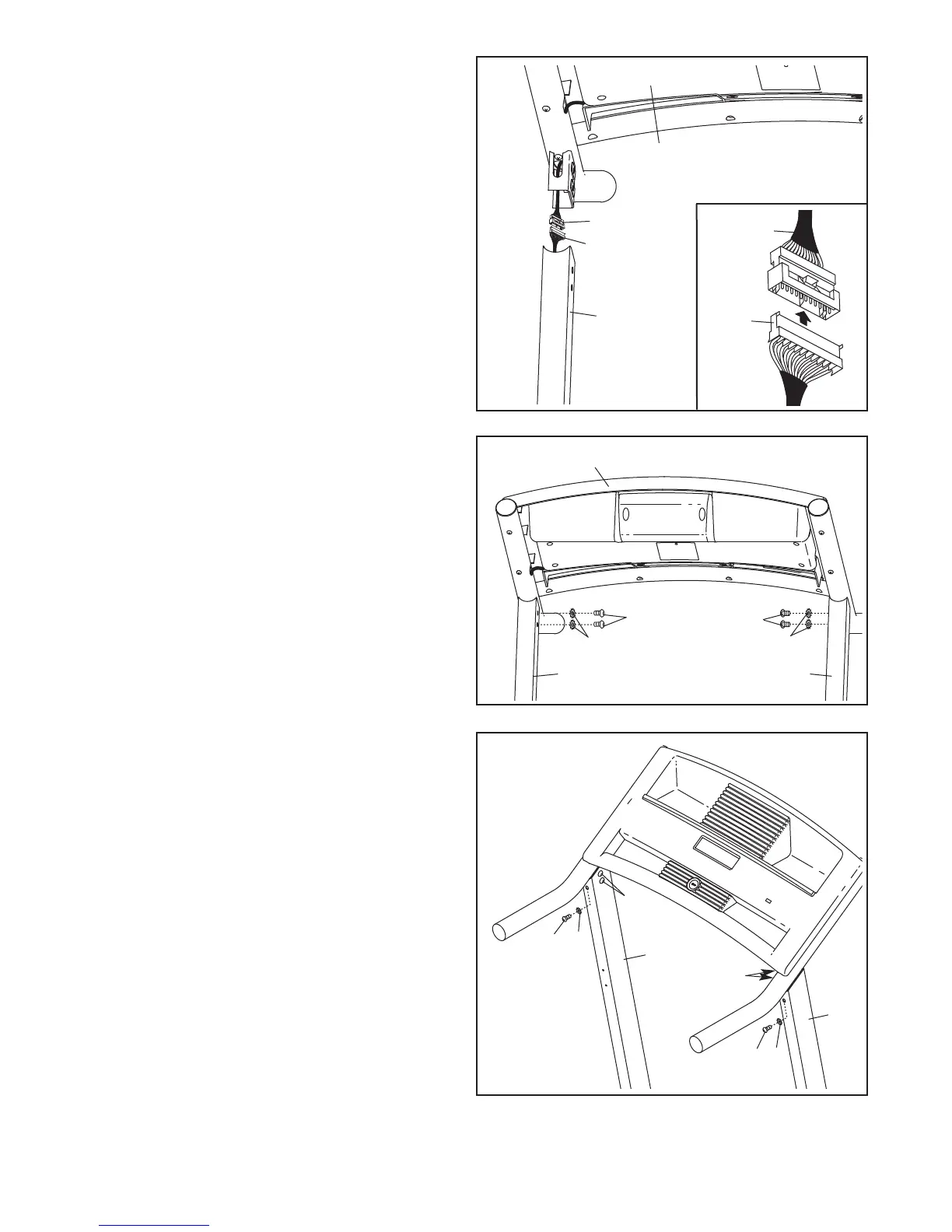

9. With the help of a second person, hold the
C
onsole (91) near the Right Upright (54).
Connect the Wire Harness (39) to the console
wire. See the inset drawing. The connectors
s
hould slide together easily and snap into
place. If they do not, turn one connector and try
again. IF THE CONNECTORS ARE NOT CON-
NECTED PROPERLY, THE CONSOLE MAY
BE DAMAGED WHEN THE POWER IS
TURNED ON. Remove the wire tie from the
Wire Harness. Insert the connectors and the ex-
cess wire downward into the Right Upright (54).
9
9
1
54
39
Console Wire
39
10
Console
Wire
To Next Page
