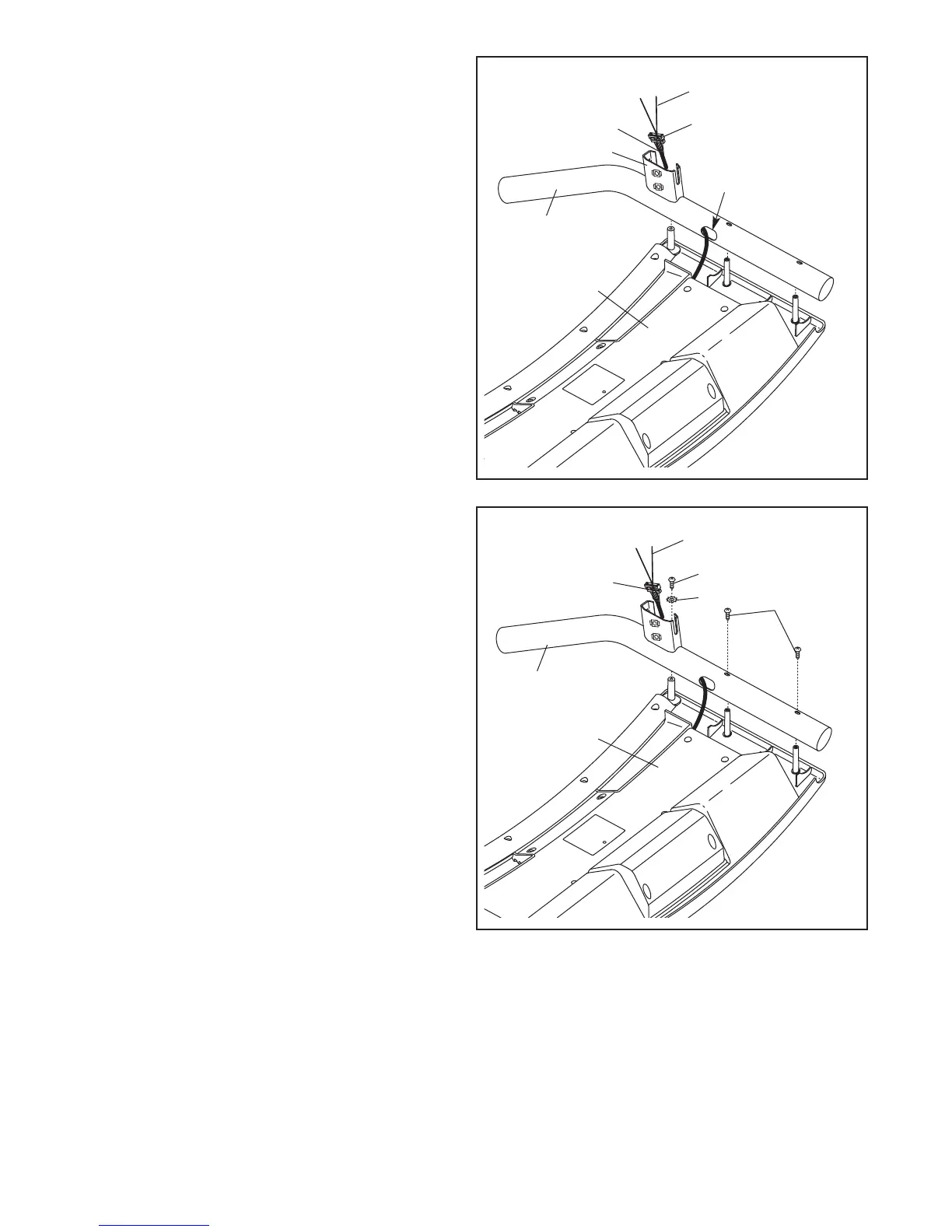

7. Set the Console (91) face down on a soft sur-
f
ace to avoid scratching it. Identify the Right
Handrail (33), which has a large hole in the loca-
tion shown. Hold the Right Handrail near the
Console.
Next, insert the console wire into the large hole
in the side of the Right Handrail (33). Using
needlenose pliers, carefully grasp the connector
and pull the console wire out of the hole near
the bracket on the Right Handrail.
7
Console Wire
Connector
Wire Tie
Large
Hole
33
Bracket
91
8. Set the Right Handrail (33) on the Console (91).
Make sure that the console wire is not
pinched. Start a 16mm Screw (85) with an M5
Star Washer (7) into the Right Handrail, and
then start two 19mm Screws (10) into the Right
Handrail. Tighten the 16mm Screw and then
tighten the two 19mm Screws; do not over-
tighten the Screws.
Attach the Left Handrail (not shown) to the
Console (91) in the same way. Note: There is
no wire on the left side.
8
33
Console Wire
85
7
10
91
Wire Tie
To Next Page
