10
7

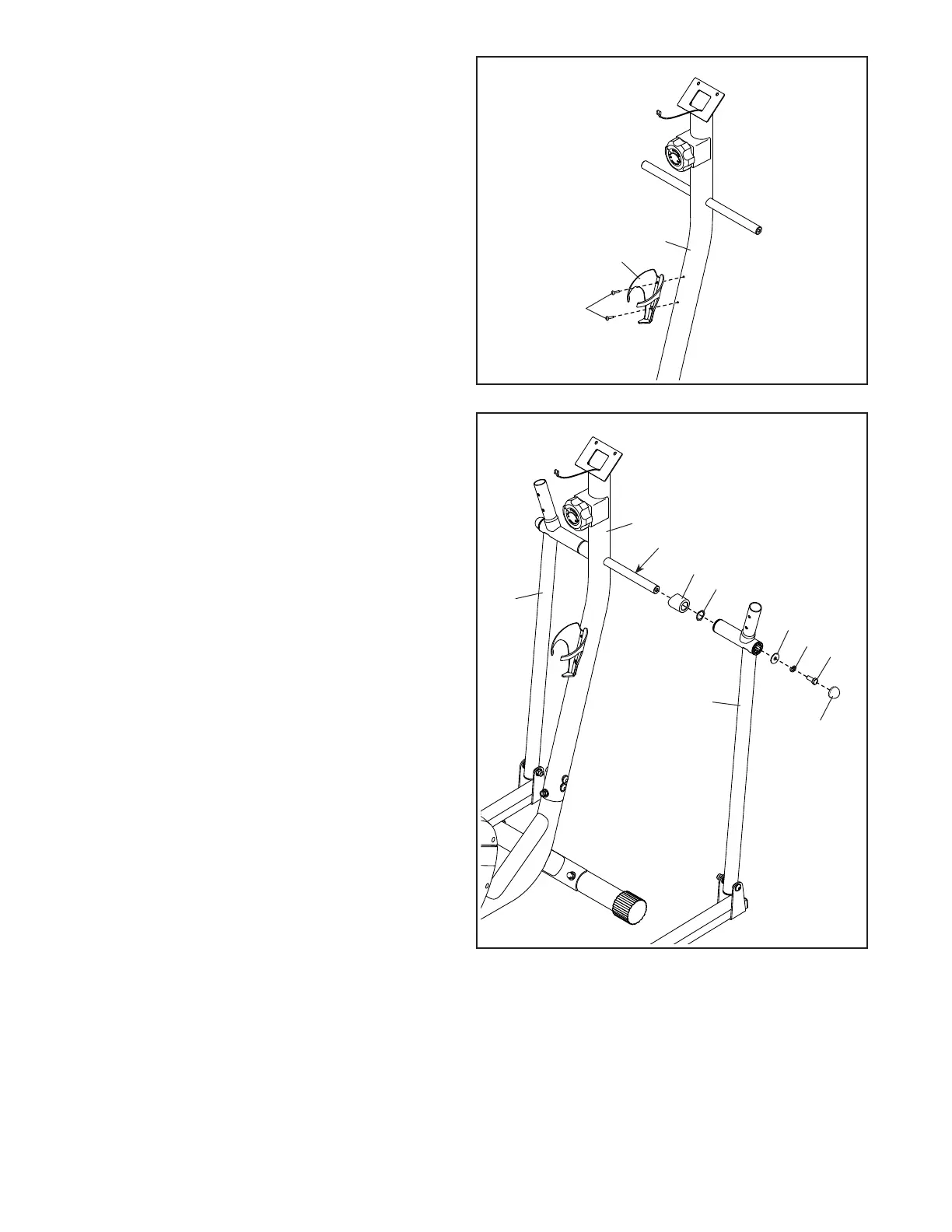

8. Identify the Right Lower Arm (11).
Using a plastic bag to keep your fingers clean,
apply a generous amount of the included grease
to the right axle on the Upright (2).
Next, orient a Spacer (46), a Pivot Wave
Washer (57), and the Right Lower Arm (11) as
shown and slide them onto the right axle on the
Upright (2).
Attach the Right Lower Arm (11) with an
M8 x 20mm Hex Screw (77), an M8 Split Washer
(90), and a Pivot Washer (67). Then, press a
Pivot Cap (39) firmly onto the Hex Screw.
Attach the Left Lower Arm (10) in the
same way.
Grease
8
7. Attach the Water Bottle Holder (41) to the
Upright (2) with two M4 x 16mm Flange Screws
(95); start both Flange Screws, and then
tighten them.
41
95
2
46
57
67
77
90
39
11
2
10
