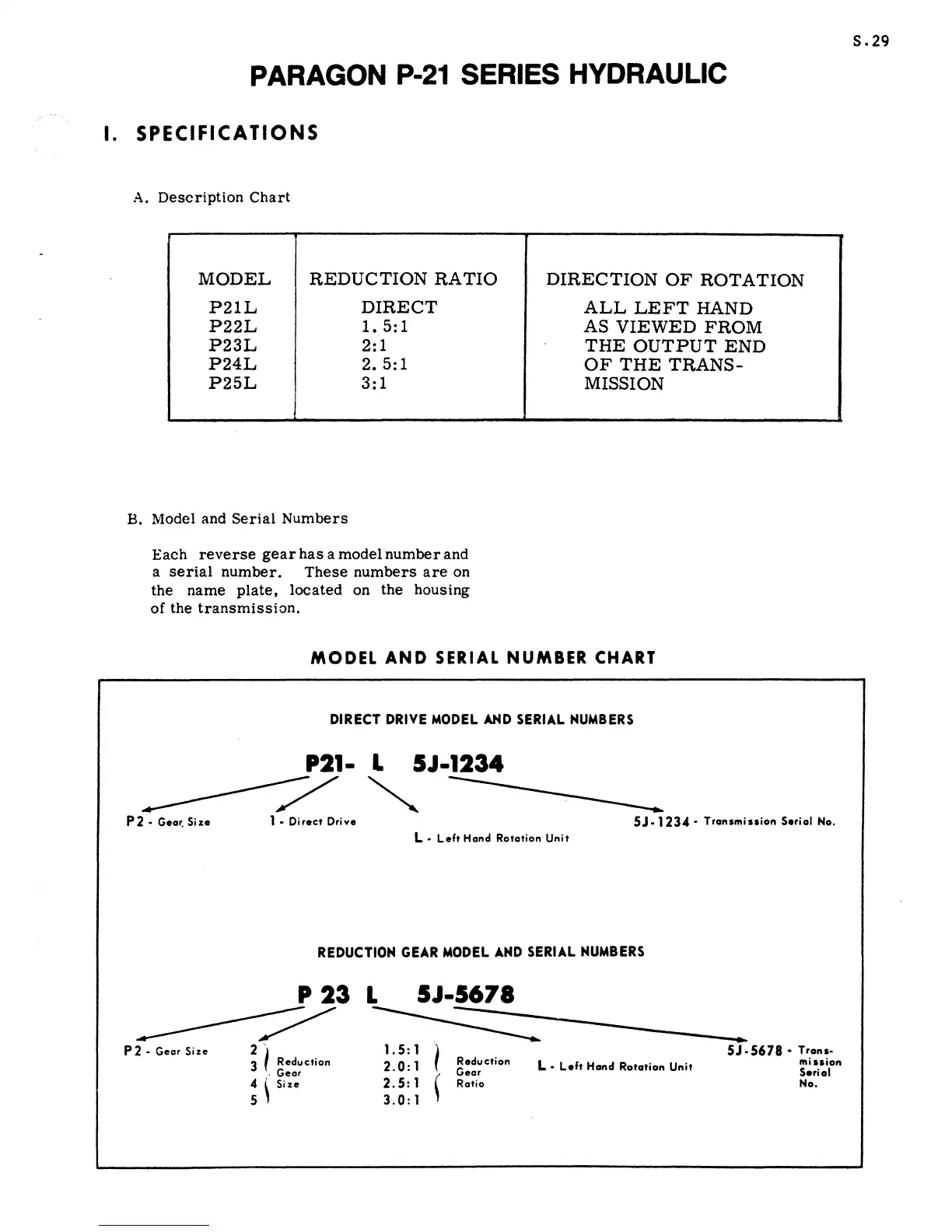

PARAGON P-21 SERIES HYDRAULIC
I. SPECIFICATIONS
A. Description Chart
MODEL REDUCTION RATIO
P21L DIRECT
P22L 1. 5:1
P23L 2:1
P24L 2.5:1
P25L 3:1
B. Model and Serial Numbers
Each reverse gear has a model number and
a
serial number. These numbers are on
the name
plate, located on the housing
of the
transmission.
DIRECTION OF ROTATION
ALL LEFT HAND
AS VIEWED FROM
THE OUTPUT END
OF THE TRANS-
MISSION
MODEL AND SERIAL NUMBER CHART
DIRECT DRIVE MODEL AND SERIAL NUMBERS
'21- L 5J-1234
.------------? '"
P2· Gear. Size
1
- Direct Drive
5J.1234· Transmission Serial No.
L· Left Hand Rotation Unit
REDUCTION GEAR MODEL AND SERIAL NUMBERS
'23
~
P2·GeorSize 2)
3 f Reduction
. Geor
: \ Size
L 5J-5678
--------=::::::----------
1.5: 1) 5J.5678 - Trans-
2 O· 1 f Reduction L - Left Hand Rotation Unit mi .-ion
. • Gear Se,i 01
2.5: 1 \ Ratio No.
3.0: 1
5.29
