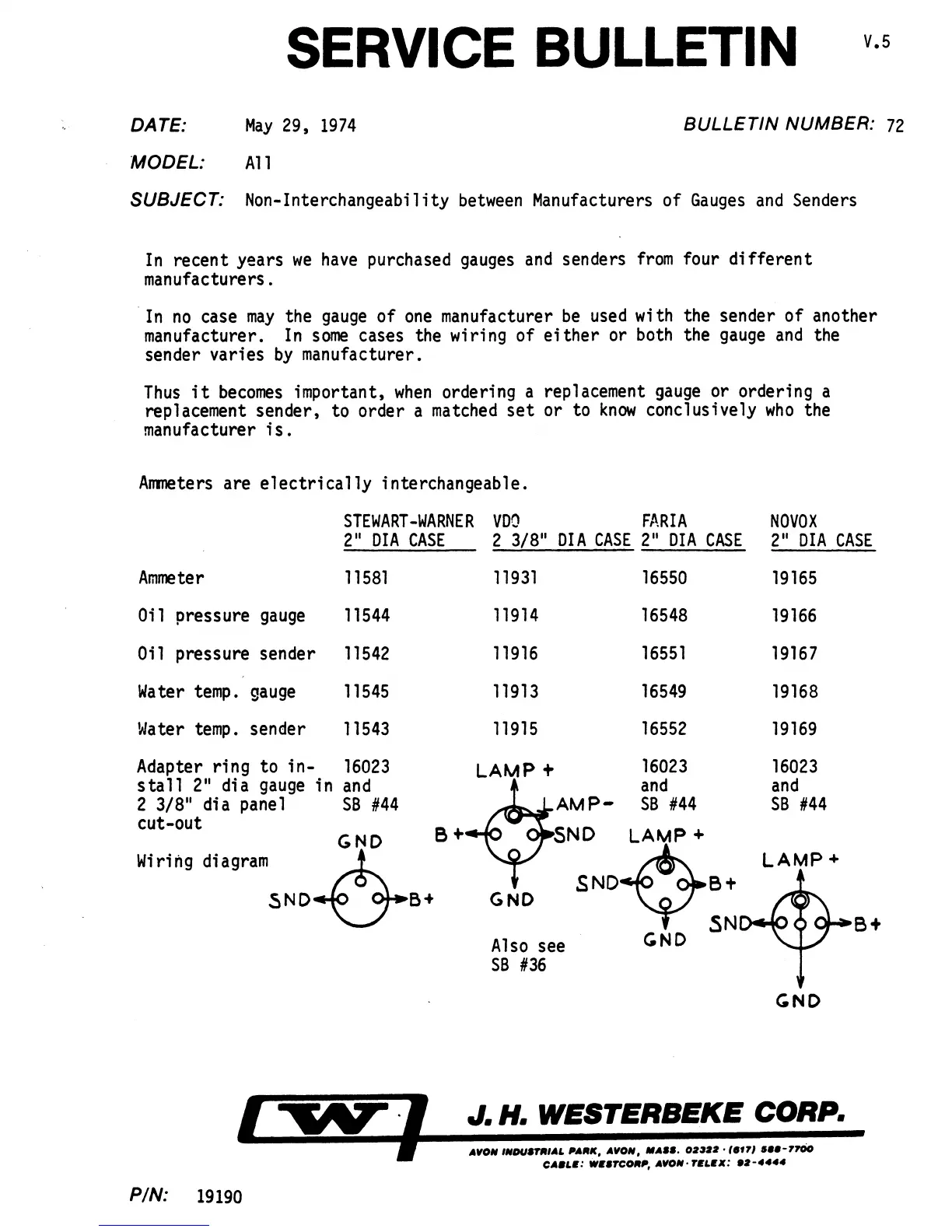

SERVICE BULLETIN V.5
DATE:
May 29, 1974
BULLETIN NUMBER: 72
MODEL: All
SUBJECT: Non-Interchangeabi 1 ity between Manufacturers of Gauges and Senders
In recent years we have purchased gauges and senders from four different
manufacturers .
. In no case may the gauge of one manufacturer be used with the sender of another
manufacturer.
In some cases the wiring of either or both the gauge and the
sender varies
by manufacturer.
Thus it becomes important, when ordering a replacement gauge or ordering a
replacement sender, to order a
matched set or to know conclusively who the
manufacturer
is.
Ammeters are electrically interchangeable.
STEWART-WARNER von FARIA NOVOX
2" OIA CASE 2 3/8" OIA CASE 2" OIA CASE 2" OIA CASE
Ammeter 11581
Oil pressure gauge 11544
Oil pressure sender 11542
Water temp. gauge 11545
Water temp. sender 11543
Adapter ring to in- 16023
stall 2" dia gauge in and
2 3/8" di a panel S8 #44
cut-out
GND
Wiring diagram ~
SND~8+
~.
PIN: 19190
11931
11914
11916
11913
11915
LAMP +
16550
16548
16551
16549
16552
16023
and
",_,"",,- __ AM p- S8 #44
SND LAMP +
GND
Also see
S8 #36
SND~B+
'fTSN
GND
19165
19166
19167
19168
19169
16023
and
S8 #44
LAMP+
GND
