Westerbeke 30 - Page 137

V.16

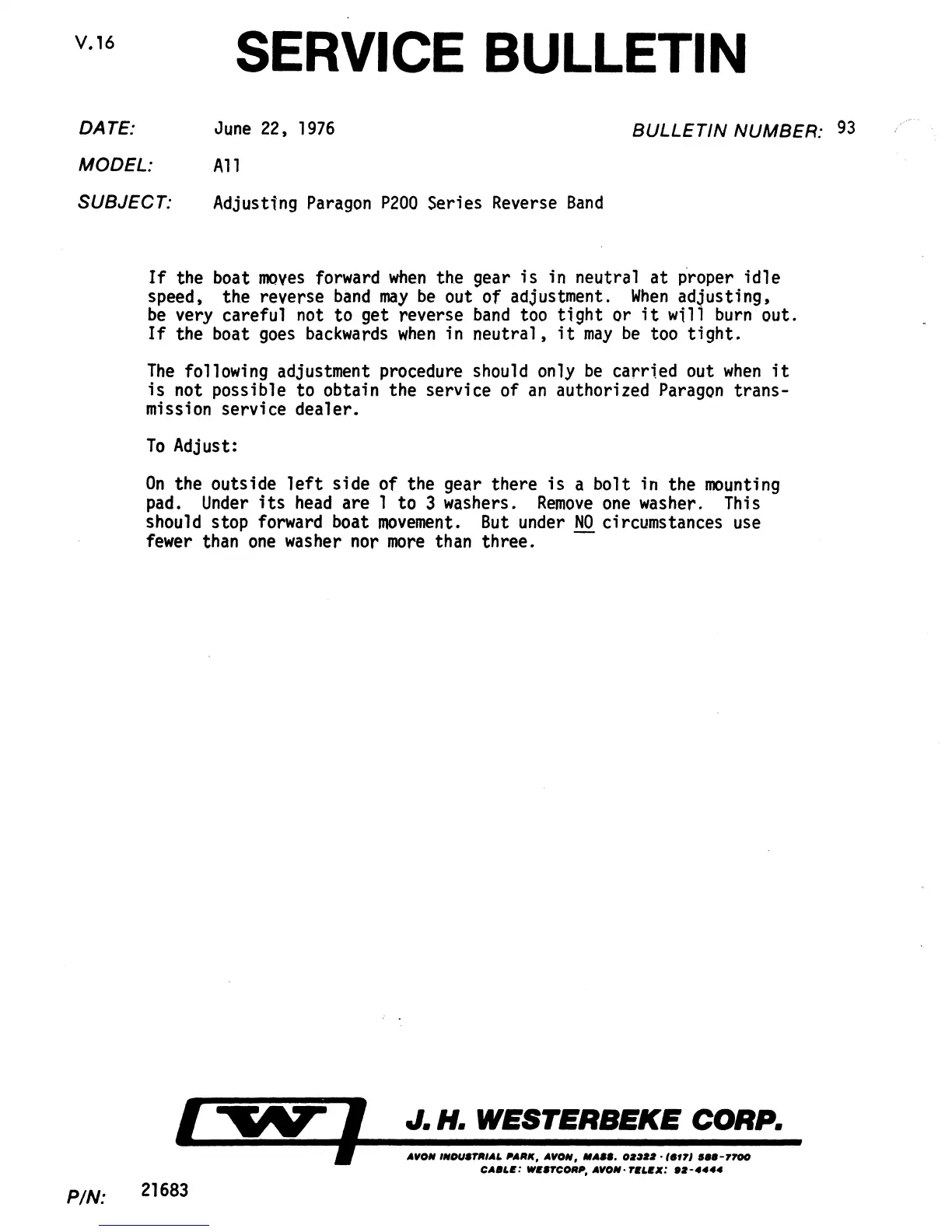

SERVICE BULLETIN
DATE:
BULLETIN NUMBER: 93
MODEL:
June 22, 1976
All
SUBJECT:
Adjusting Paragon P200 Series Reverse Band
PIN:
If the boat moves forward when the gear is in neutral at proper idle
speed, the reverse band may be out of adjustment. When adjusting,
be very careful not to get reverse band too ti ght or it will burn out.
If the boat goes backwards when in neutral, it may be too tight.
The following adjustment procedure should only be carried out when it
is not possible to obtain the service of an authorized Paragon trans-
mission service dealer.
To Adjust:
On the outside left side of the gear there is a bolt in the mounting
pad. Under its head are 1 to 3 washers. Remove one washer. This
should stop forward boat movement. But under NO circumstances use
fewer than one washer nor more than three.
21683
