V.30

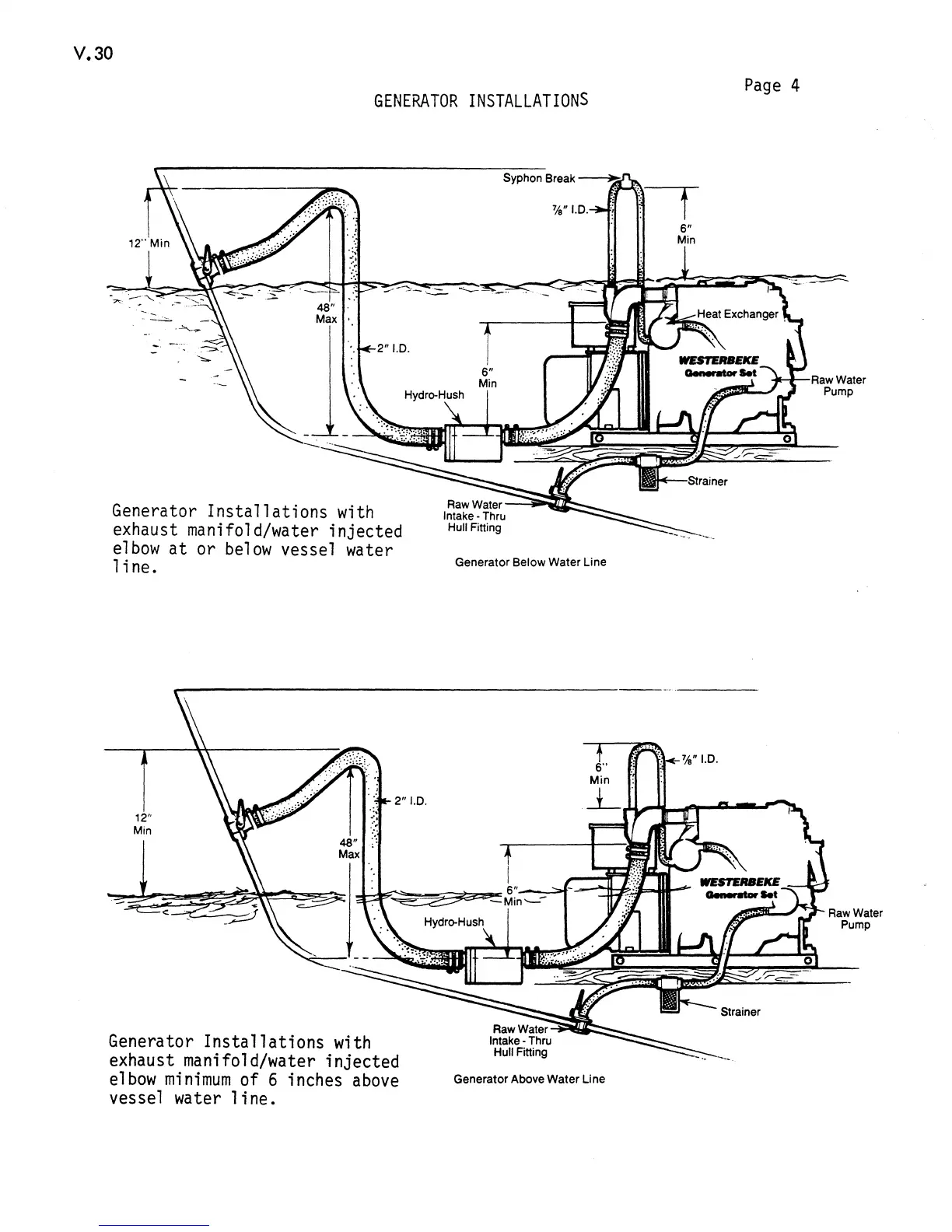

GENERATOR INSTALLATIONS
12"
Generator Installations with
exhaust manifold/water injected
elbow at or below vessel water
1 i ne.
Generator
Installations with
exhaust manifold/water injected
elbow minimum of 6 inches above
vessel water line.
Syphon Break ___ n
r~ .... 7l.----,--
Raw Water
Intake - Thru
Hull Fitting
Generator
Below Water Line
Raw Water
Intake - Thru
Hull Fitting
Generator Above
Water Line
Page 4
Raw Water
Pump
Raw Water
Pump
