Westerbeke 50 - Page 115

V.30
GENERATOR INSTALLATIONS
_ ... --:,--- "- ~.;,:........-- -_.
---

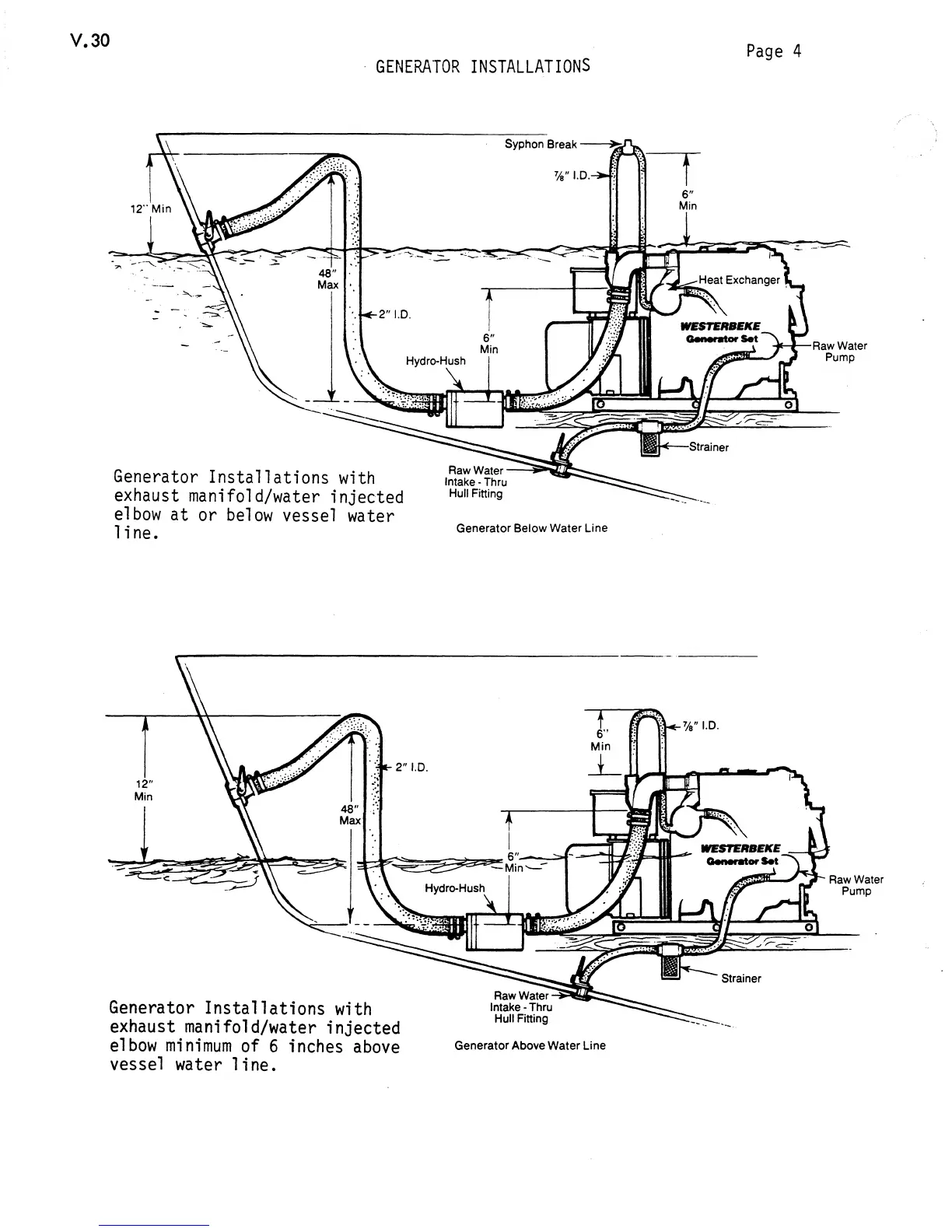

Generator Installations with
exhaust manifold/water injected
elbow at or below vessel water
line.
Generator Installations with
exhaust manifold/water injected
elbow minimum of 6 inches above
vessel water line.
Raw Water
Intake - Thru
Hull Fitting
Generator Below Water Line
Raw Water
Intake - Thru
Hull Fitting
Generator Above Water Line
Page 4
--'-
Raw Water
Pump
Raw Water
Pump
