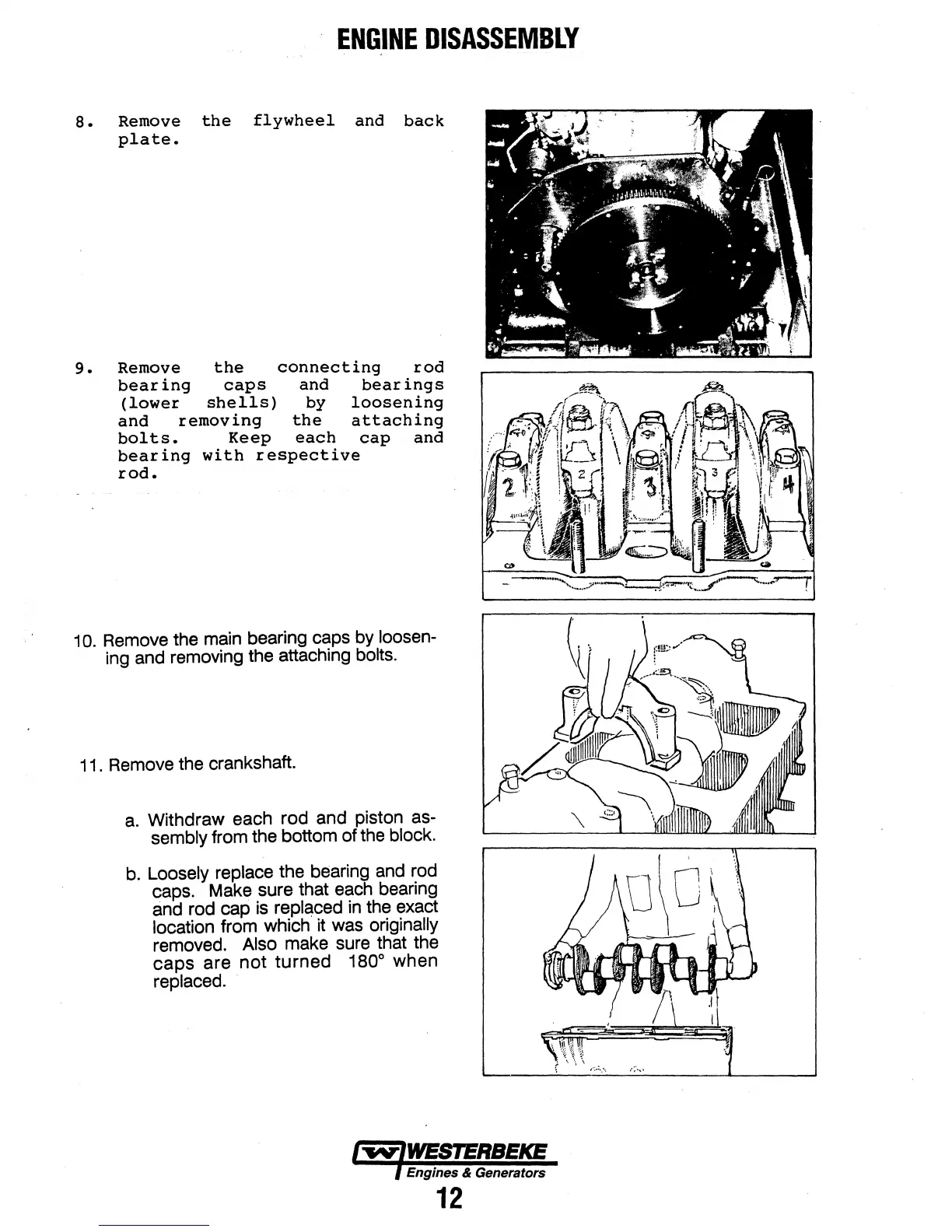

ENGINE
DISASSEMBLY
8.
Remove
the
flywheel
and
back
plate.
9.
Remove
the
connecting
rod
bearing
caps
and
bearings
(lower
shells)
by
loosening
and
removing
the
attaching
bolts.
Keep
each
cap
and
bearing
with
respective
rod.
10.
Remove the main bearing caps by loosen-
ing and removing the attaching
bolts.
11.
Remove the crankshaft.
a.
Withdraw each rod and piston as-
sembly from the bottom of the block.
b. Loosely replace the bearing and rod
caps. Make sure that each bearing
and rod cap is
repl1:1ced
in the exact
location from which it was originally
removed. Also make sure that the
caps
are
not
turned
180° when
replaced.
·
Engines & Generators
12
