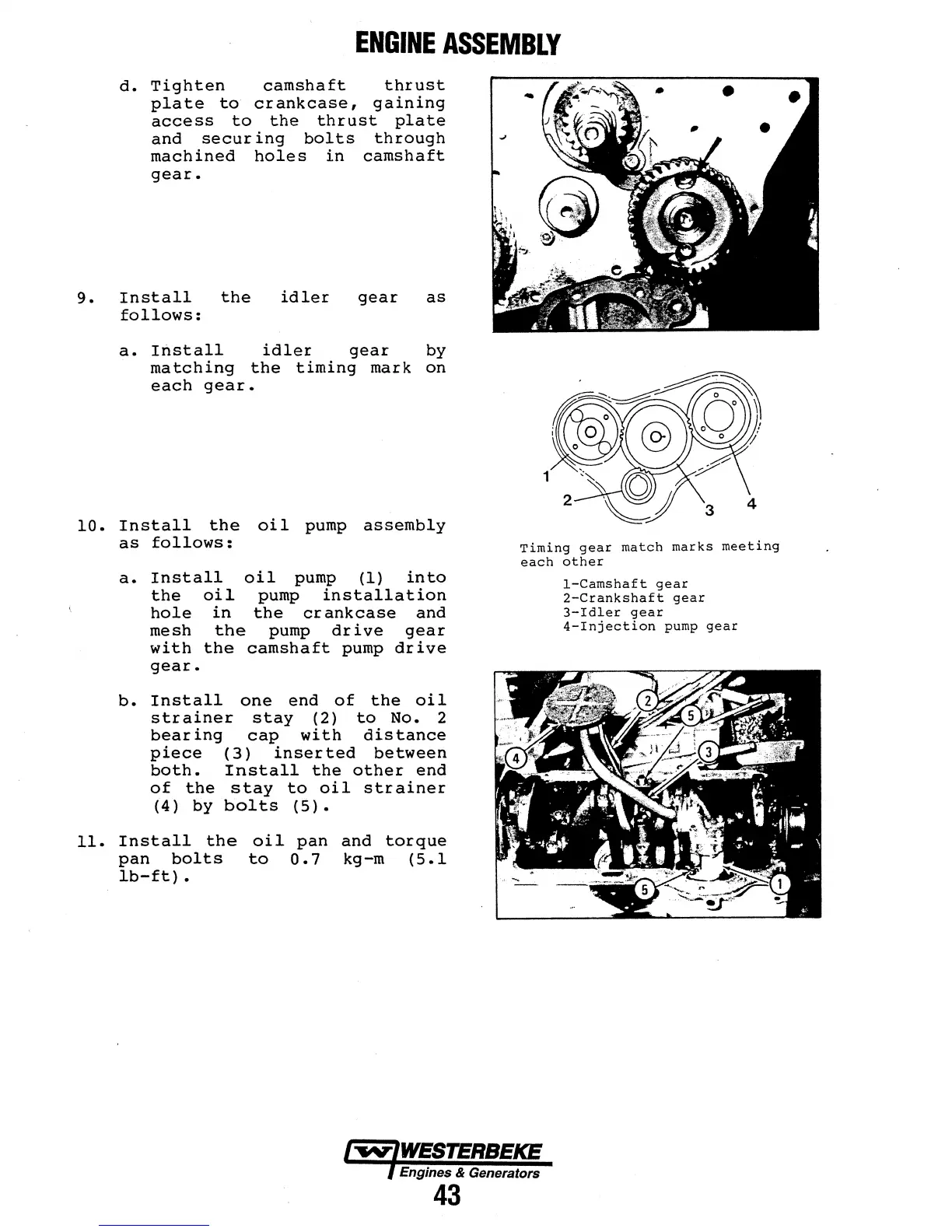

ENGINE ASSEMBLY
d. Tighten camshaft thrust
plate to crankcase, ga1n1ng
access to the thrust plate
and securing bolts through
machined holes in camshaft
gear.
9. Install the
follows:
idler
gear as
a. Install idler gear by
rna tching the timing mark on
each gear.
10. Install the oi 1 pump assembly
as follows:
a. Install oil pump (1) into
the oil pump installation
hole in the crankcase and
mesh the pump drive gear
with the camshaft pump drive
gear.
b. Install one end of the oil
strainer stay (2) to No. 2
bearing cap with distance
piece (3) inserted between
both. Install the other end
of the stay to oil strainer
(4) by bolts (5).
11. Install the oil pan and torque
pan bolts to 0. 7 kg-m (5 .1
lb-ft).
Timing gear match marks meeting
each other
1-Camshaft gear
2-Crankshaft gear
3-Idler gear
4-Injection pump gear
