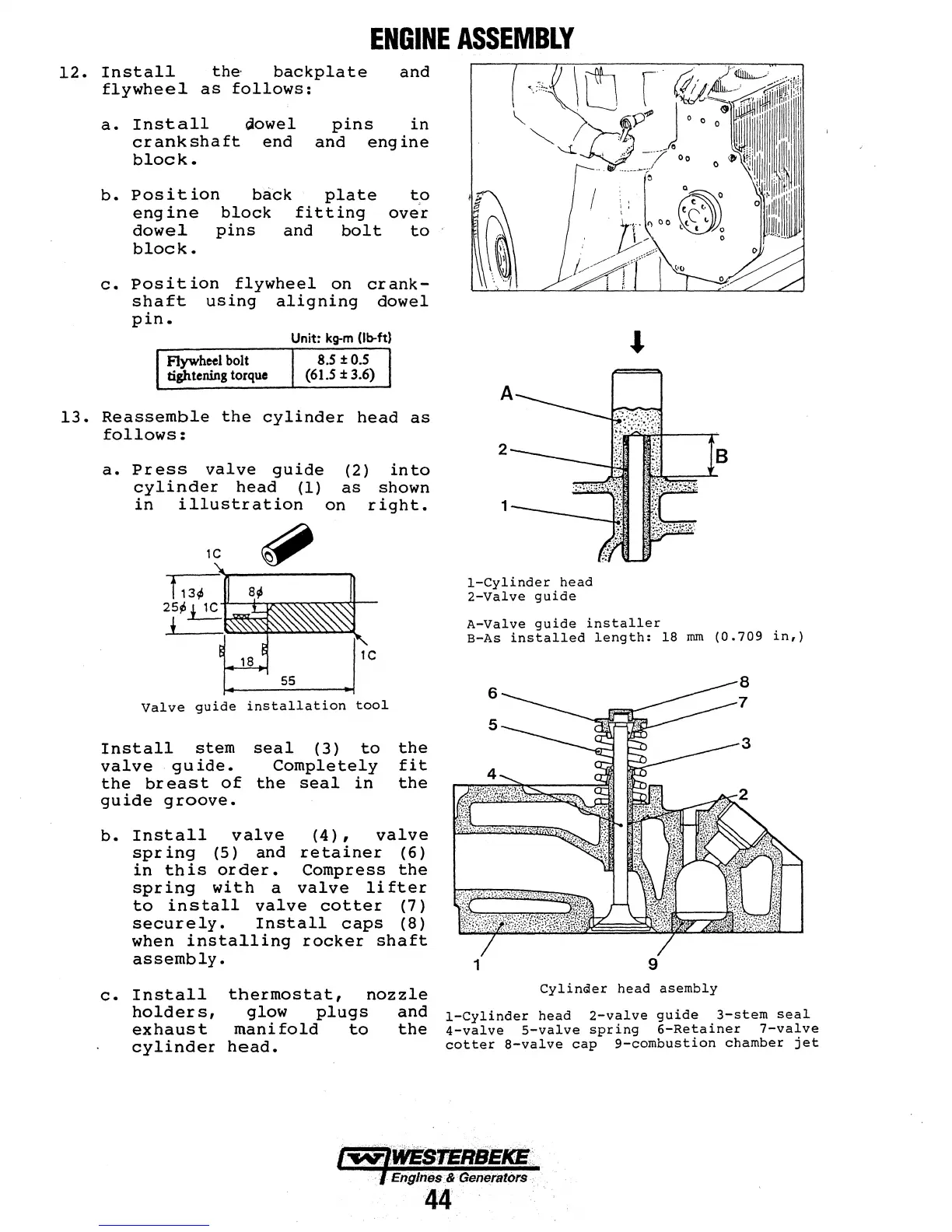

12. Install the backplate and
flywheel as follows:
a. Install dowel pins in
crankshaft end
block.
and engine
b. Position back plate to
engine block
dowel pins
fitting over
and bolt to
block.
c. Position flywheel on crank-
shaft using aligning dowel
pin.
Unit~ kg-m (lb--ft)
flywheel bolt 8.5 ± 0.5
tightening torque (61.5
± 3.6)
13. Reassemble the cylinder head as
follows:
a. Press valve guide (2) into
cylinder head (1) as shown
in illustration on right.
55
Valve guide installation tool
Install stem
valve guide.
the breast of
guide groove.
seal (3) to
Completely
the seal in
the
fit
the
b. Install valve (4), valve
spring (5) and retainer (6)
in this order. Compress the
spring with a valve lifter
to install valve cotter (7)
securely. Install caps ( 8)
when installing rocker shaft
assembly.
c. Install
holders,
exhaust
cylinder
thermostat, nozzle
glow plugs and
manifold to the
head.
1-Cylinder head
2-Valve guide
8
A-Valve guide installer
B-As installed length: 18 mm (0.709 in,)
1 9
CylinGer head asembly
1-Cylinder head 2-valve guide 3-stem seal
4-valve 5-valve spring 6-Retainer 7-valve
cotter 8-valve cap 9-combustion chamber jet
