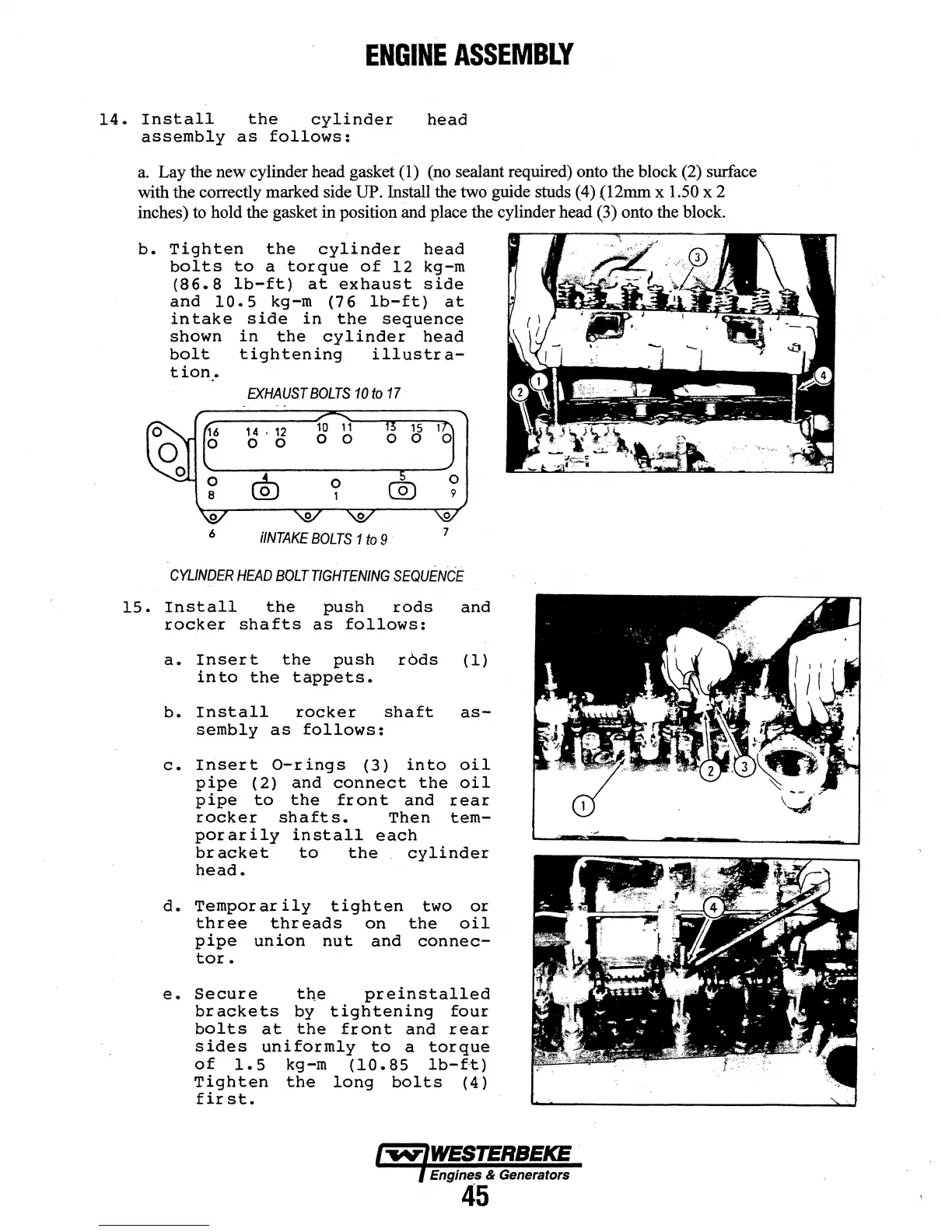

ENGINE
ASSEMBLY
14.
Install
the
cylinder
head
assembly
as
follows:
a.
Lay
the
new
cylinder head gasket (1) (no sealant required) onto the block (2) surface
with the correctly marked side UP. Install the two guide studs (4) (12mm x 1.50 x 2
inches)
to hold the gasket in position and place the cylinder head (3) onto the block.
b.
Tighten
the
cylinder
head
bolts
to
a
torque
of
12
kg-m
(86.8
lb-ft)
at
exhaust
side
and
10.5
kg-m
(76
lb-ft)
at
intake
side
in
the
sequence
shown
in
the
cylinder
head
bolt
tightening
illustra-
tion
.•
EXHAUST
BOLTS
tOto
17
i/NTAKE
BOLTS
1
to
9 ·
CYLINDER
HEAD
BOLT
TIGHTENING
SEQUENCE
15.
Install
the
push
rods
and
rocker
shafts
as
follows:
a.
Insert
the
push
rods
(1)
into
the
tappets.
b.
Install
rocker
shaft
as-
sembly
as
follows:
c.
Insert
0-rings
(3)
into
oil
pipe
(2)
and
connect
the
oil
pipe
to
the
front
and
rear
rocker
shafts.
Then
tem-
porarily
install
each
bracket
to
the
cylinder
head.
d.
Temporarily
tighten
two
or
three
threads
on
the
oil
.
pipe
union
nut
and
connec-
tor.
e.
Secure
tne
preinstalled
brackets
by
tightening
four
bolts
at
the
front
and
rear
sides
uniformly
to
a
torque
of
1.5
kg-m
(10.85
lb-ft)
Tighten
the
long
bolts
(4)
fir
st.
Engines & Generators
45
