Power to the machine must be switched OFF.

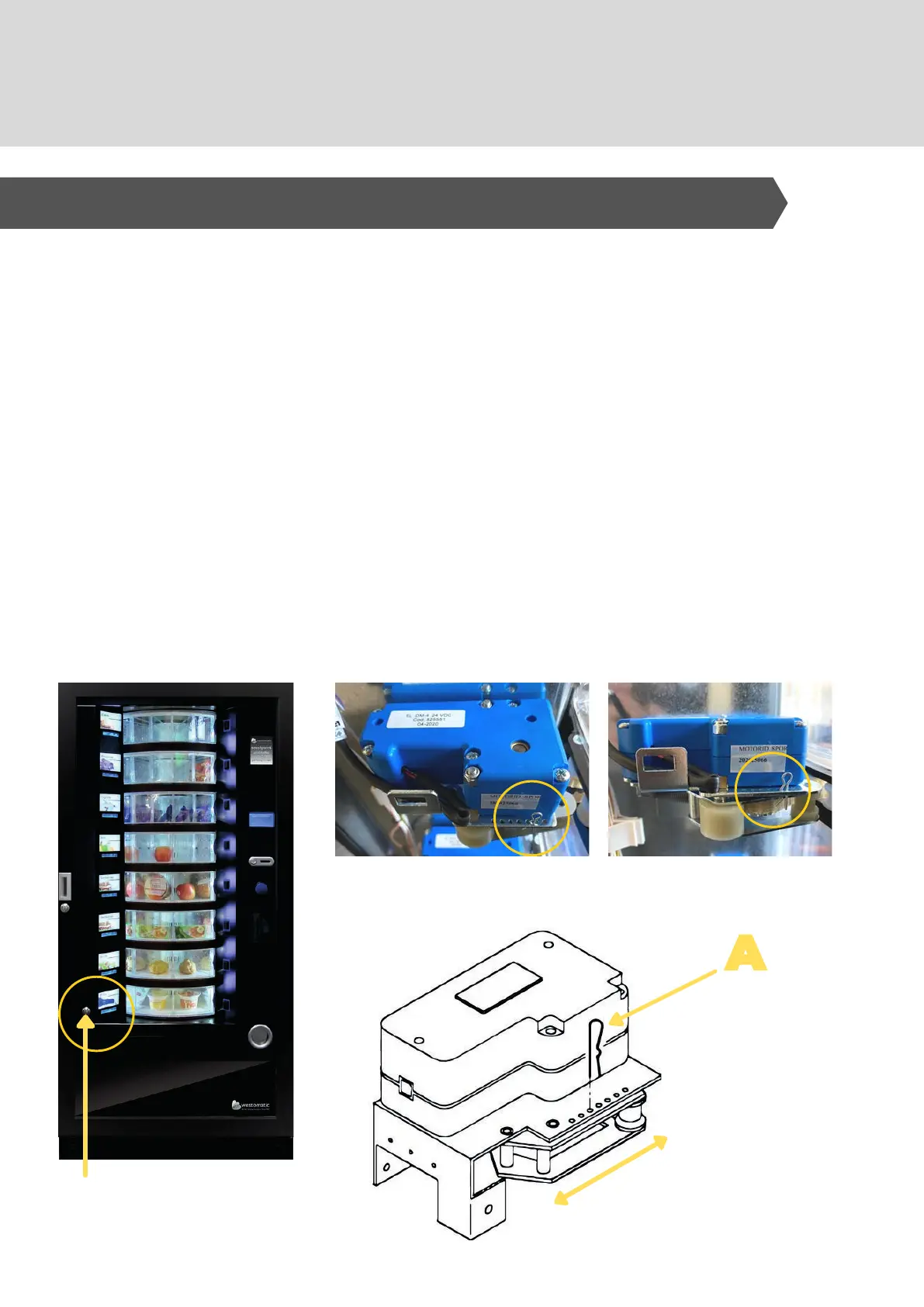

Access the delivery door motors from the front of the
machine (as shown below) using the door key
Remove the fastening split pin of the belt tightener - 'A' .
Move the split pin by one hole - direction as shown.
+ = tighten; - = loosen.
Open and close the delivery doors to check the adjustment
is correct - COMMAND 1.
If delivery doors do not close correctly - it may be necessary to
check and tighten the toothed belt which moves delivery doors.
1.
2.
3.
4.
5.
6.
10. Adjustments
5 . A DJ U S T I N G BE LT T E N S I O N
+ = Tighter
- = Looser
Access to
motors
