9.6 Parameter Range 9.6 Parameter Range
9.5 Control Mode9.5 Control Mode
Starting Mode
There are 3 Starting mode. User can set this parameter by keyboard referring to
chapter 8-1 and chapter 9.
Initial Voltage
This parameter is valid at the Voltage Ramp mode. If the Voltage Ramp mode is
selected, the lamp V and lamp % at the keyboard are light.
This parameter indicates that the initial output voltage of the product at
the instant of starting and also indicates the initial voltage of the motor
(see figure 6-1).The more this parameter is, the more the starting torque is.
The default value is 30. For the fan pump load, this parameter should not
set bigger. For the load which has bigger static resistance, this parameter
can be increased.This parameter can be adjusted between 20-50%. If the
Current Limit mode is selected, this parameter is invalid.
Jogging Voltage
At this mode, the parameter range is 5-75%. When this parameter is set
the lamp V and lamp % at the keyboard are light.
At Jogging mode, the output voltage of this product maintains
unchanged(it is the set parameter). If this parameter is too low, the motor
may don't turn. It's normal.
User can set this parameter by keyboard referring to Tatble 8-1 and
Chapter 9.4.
Ramp Time
This parameter indicates that the maximum time from the beginning to
the end of the starting. The default is 30s. When setting this parameter,
lamp S on the keyboard is light.
If the starting current is not less the 125% of rate current after the time is
reached, the soft starter enter the protection state 3s later automatic.
This parameter is set according to the load type. For the heavy load type
and big inertia load type, this value can be increased. For light load type,
the starting time may be shorter than the time user set. It is normal if the
starting process is all right. This parameter is invalid at the Current Limit
mode.
Starting Mode
There are 3 Starting mode. User can set this parameter by keyboard referring to
chapter 8-1 and chapter 9.
Initial Voltage
This parameter is valid at the Voltage Ramp mode. If the Voltage Ramp mode is
selected, the lamp V and lamp % at the keyboard are light.
This parameter indicates that the initial output voltage of the product at
the instant of starting and also indicates the initial voltage of the motor
(see figure 6-1).The more this parameter is, the more the starting torque is.
The default value is 30. For the fan pump load, this parameter should not
set bigger. For the load which has bigger static resistance, this parameter
can be increased.This parameter can be adjusted between 20-50%. If the
Current Limit mode is selected, this parameter is invalid.
Jogging Voltage
At this mode, the parameter range is 5-75%. When this parameter is set
the lamp V and lamp % at the keyboard are light.
At Jogging mode, the output voltage of this product maintains
unchanged(it is the set parameter). If this parameter is too low, the motor
may don't turn. It's normal.
User can set this parameter by keyboard referring to Tatble 8-1 and
Chapter 9.4.
Ramp Time
This parameter indicates that the maximum time from the beginning to
the end of the starting. The default is 30s. When setting this parameter,
lamp S on the keyboard is light.
If the starting current is not less the 125% of rate current after the time is
reached, the soft starter enter the protection state 3s later automatic.
This parameter is set according to the load type. For the heavy load type
and big inertia load type, this value can be increased. For light load type,
the starting time may be shorter than the time user set. It is normal if the
starting process is all right. This parameter is invalid at the Current Limit
mode.
User ManualUser Manual User ManualUser Manual
23
OPERATION
MENU
22
OPERATION
MENU

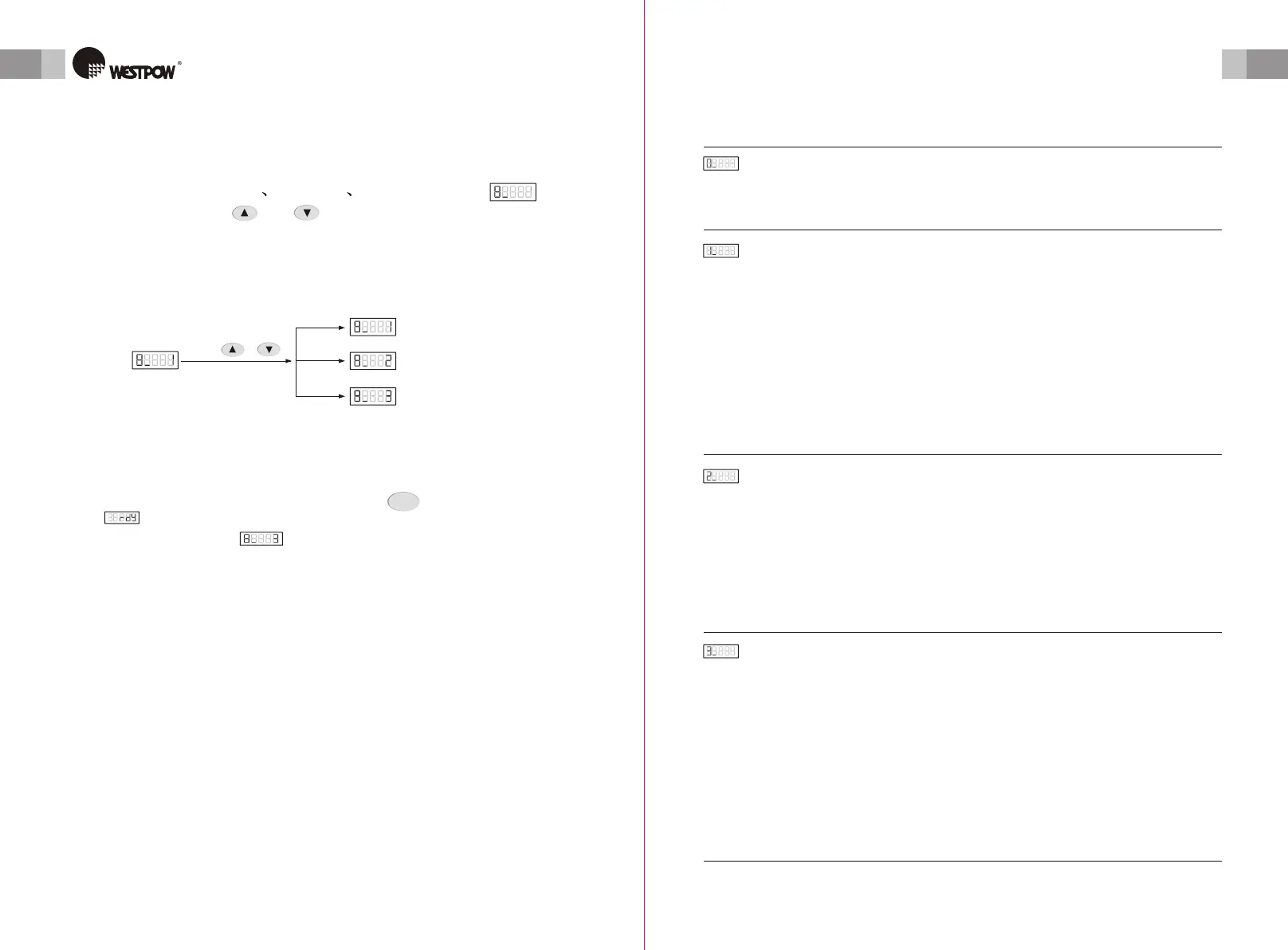

There are two ways to start and stop the motor through the soft starter:
keyboard and terminal. In any way, user can set the parameter according to
the situation ( see figure 9-2 figure 9-3 figure 9-4). When shows
on the keyboard, press and key to select the control mode you
want.
There are two ways to start and stop the motor through the soft starter:
keyboard and terminal. In any way, user can set the parameter according to
the situation ( see figure 9-2 figure 9-3 figure 9-4). When shows
on the keyboard, press and key to select the control mode you
want.
For Example : For Example :
keyboard control is enablekeyboard control is enable
Control
mode
Control
mode
Figure 9-5
oror
PressPress
Terminalcontrol is enableTerminalcontrol is enable
Keyboard and terminal are all enableKeyboard and terminal are all enable
Note:
1. When modifying any of the parameter, press key to return Ready state
.
2. When the value is set ( keyboard and terminal are all enable ), the
keyboard control can't work if the two-line connect way is select (see figure
5-1).
Note:
1. When modifying any of the parameter, press key to return Ready state
.
2. When the value is set ( keyboard and terminal are all enable ), the
keyboard control can't work if the two-line connect way is select (see figure
5-1).
STOP
