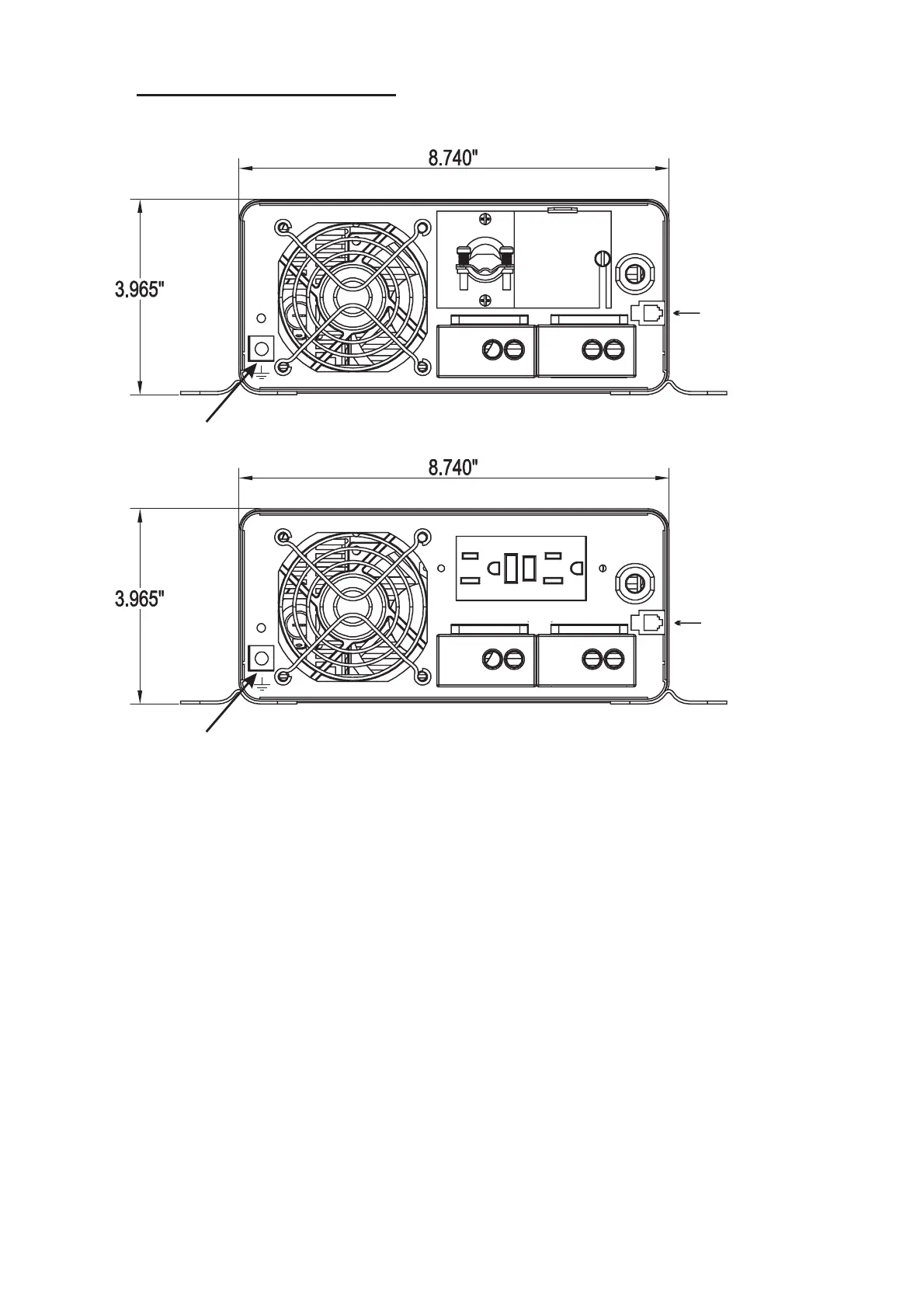

3-2 The Rear panel interface
3-2-1. AC Output Fuse:
3-2-3. Battery terminals:
Connect 12V/24V batteries or other 12V/24V power sources.
3-2-4.
Connect chassis ground terminal to earth.
6
.Remote port: Connect RJ-11 wiring with remote control unit.
3-2-2
CAUTION: Do Not Remove Covers.
For Continued Fire Protection Replace Only With Specified Type And
Rate Fuse. Turns Off The Power Switch Before Replacing Fuse.
Refer Servicing To Qualified Personnel.
HARDWIRE
GFCI
AC OUTPUT
POS+ NEG-
AC OUTPUT
RJ11 JACK
RJ11 JACK
Fuse Information:
Manufacturer: LITTELFUSE INC
Model Number: KLDR15
Fuse Size: 10.3*38.1mm, Rating: 15A/600VAC
Chassis ground Lug
Chassis ground Lug
