WFCO WF-5220 - INDICATOR LIGHTS AND DATA PORTS

8

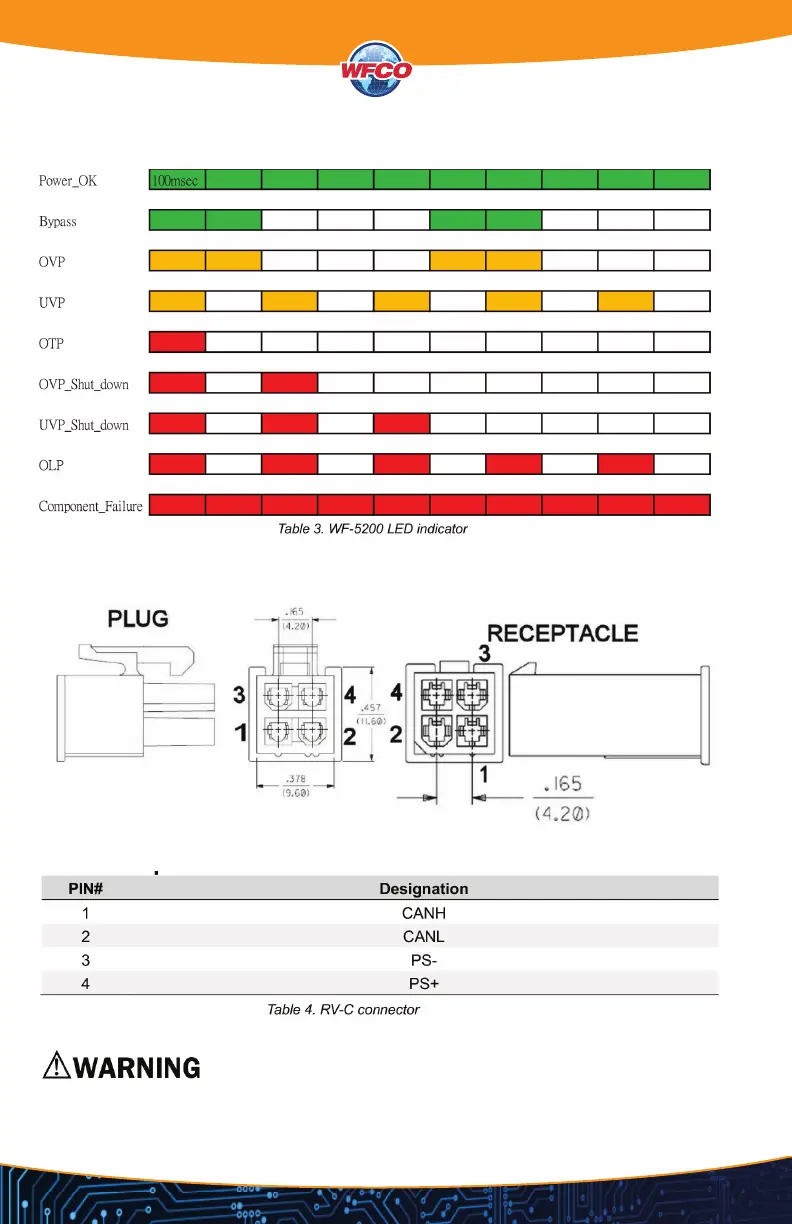

LED INDICATOR
DC INPUT - / DC INPUT +
Please refer to DC wiring connections.
RVC BUS portDC
LCM port is for remote control connection only. Please make sure the connection is correct. (CAN
cable to CAN1 / CAN2 port , Remote cable to LCM port) If CAN cable is connected to LCM port,
or vice versa, the inverter will be damaged.
