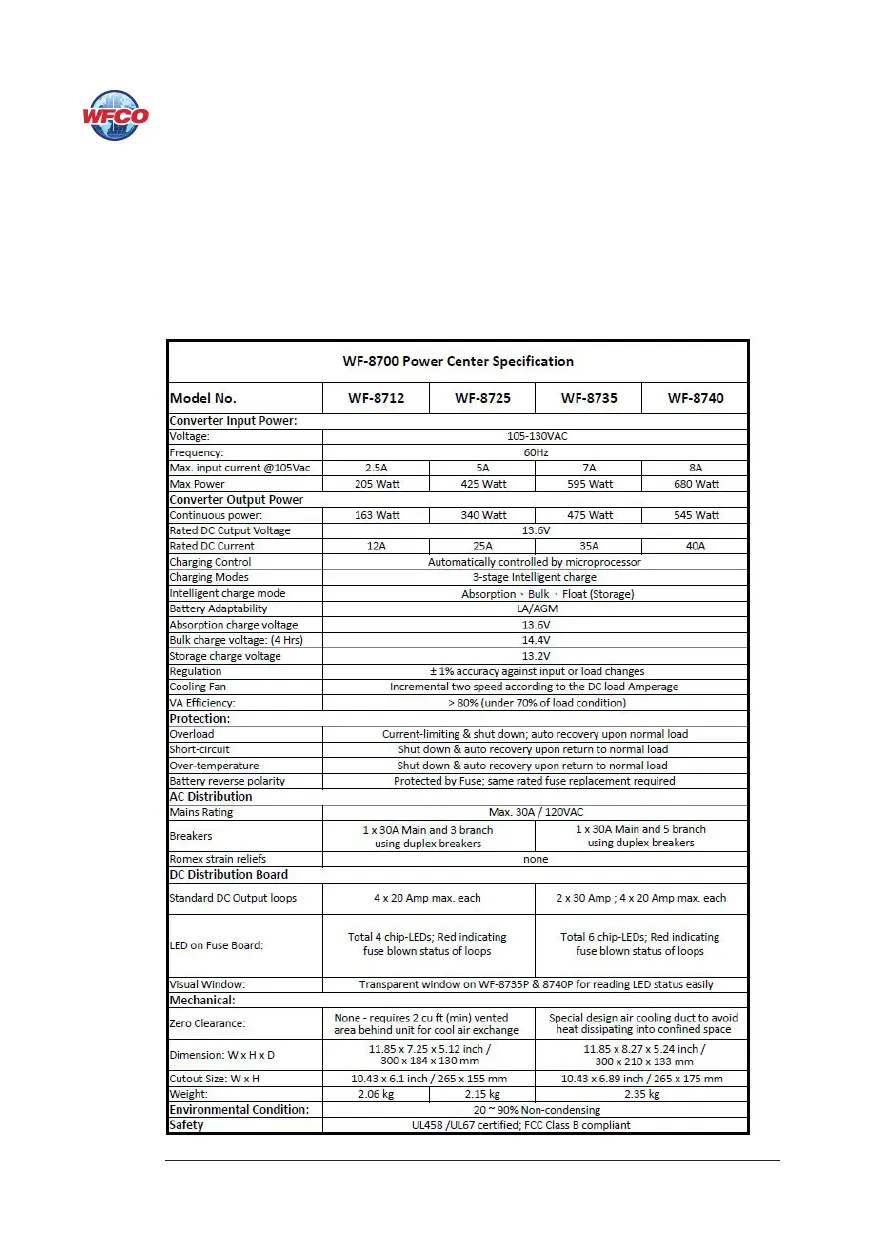

All models have wire lead connections. Strip approximately 1/4” of insulation from the wires
and attach to the appropriate connected load using a wire nut or other approved method. Make
sure the connectors are tightly secured.
Connect the heavy wire (Red) coming from the battery to the Red 10AWG wire coming from
the back of the enclosure.
As a last step, install a separate bus bar in a location behind the converter. Connect the 10AWG
White wire coming from the back of the enclosure to this bus bar. Connect the battery negative
wire to this bus bar along with all the negative DC load wires. Also, run a wire from the bus bar
to chassis ground.
