13
Electric Operation Switch
Gas Operation Switch
Gas Lit LED
Diagnostic LED
Temperature Control
Space Heater Function
Diagnostic LED - Space Heater
Gas Light - Space Heater
Gas Light - Water Heater
Water Heater Function
Diagnostic LED - Water Heater
Gas Icon

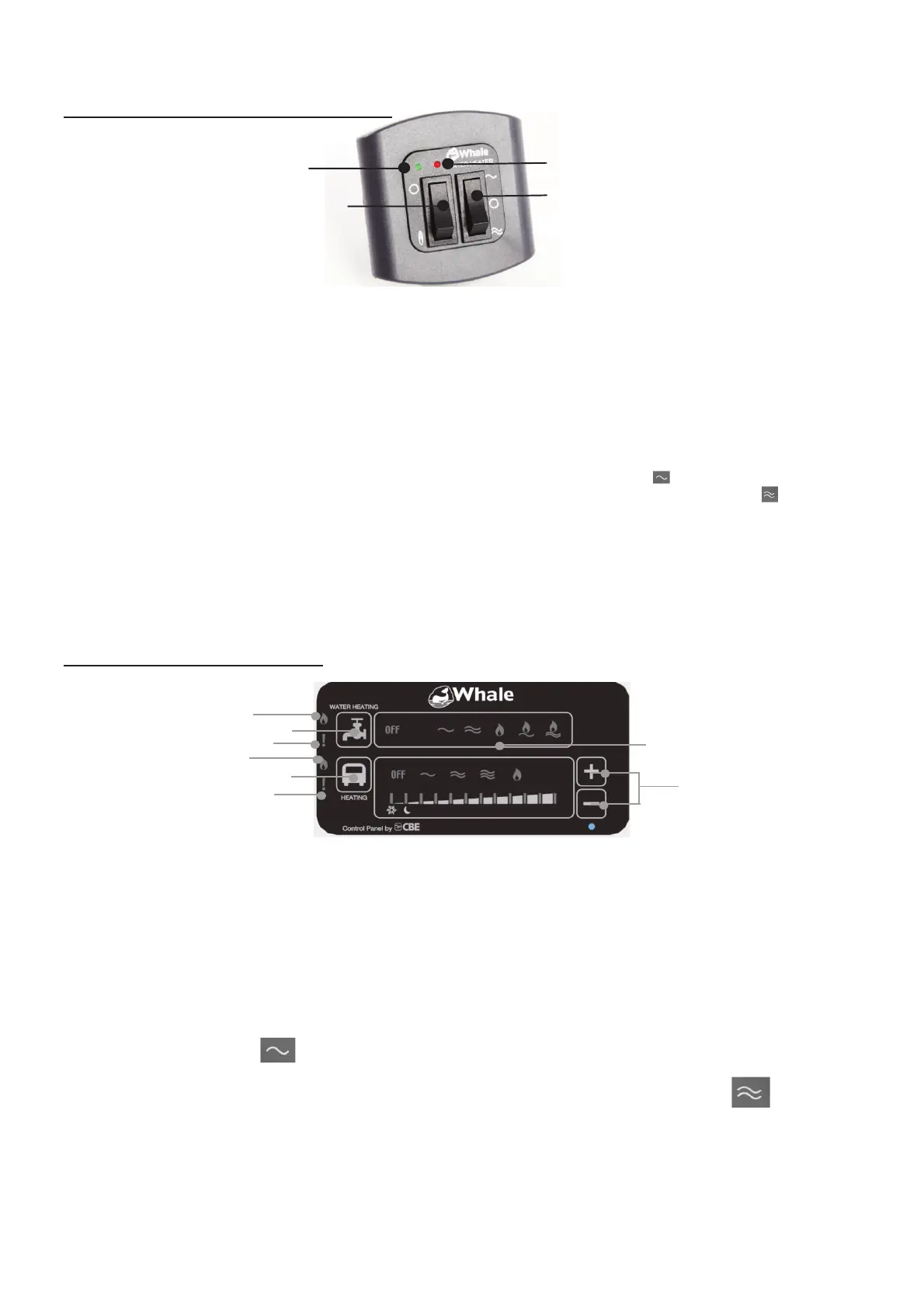

Fig. 30 Whale Duo Control Panel
Option 1 - Whale Water Heater Control Panel
Fig. 29 Whale Water Heater Control Panel
For Gas Operation: Operate the left-hand switch to the ‘on’ (flame) position. There will be a pre-purge pause of
approximately 5 seconds to allow any un-burnt gas to leave the flue and will extinguish when the water is up to
temperature. A green LED will light upon successful flame ignition. If there is air in the gas supply line, it may take a
few attempts for the gas to ignite. See Section 9 for gas lockout re-setting. If the ignition is not satisfactory, the red
diagnostic LED will flash - refer to the Trouble Shooting Guide (see Section 9).
For Electric Operation: The Water Heater is equipped with twin 600W / 1200 W immersion heater elements offering
operation at 600W or 1200W. Operate the right-hand rocker switch to the top position
element. To turn on both electric elements, operate the right-hand rocker switch to the bottom position.
Note: The electric elements will still operate if the appliance is in gas ignition lock-out.
Gas and Electric Operation: For faster heating, the appliance can be operated with both gas and electric.
Switching Appliance Off: Operate the left-hand gas switch to the top ‘Off’ position (O) and the right-hand electric
rocker switch to the centre position (O). If the Water Heater is not going to be used for some time, isolate the gas
supply and drain water if there is a risk of freezing.
Option 2 - Whale Duo Control Panel
For Gas Operation - Water Heater: Press the Water Heater Function key until the ‘gas’ icon is illuminated. There
will be a pre-purge pause of approximately 5 seconds to allow any un-burnt gas to leave the flue and will extinguish
when the water is up to temperature. A green LED (Gas Lit - Water Heater) will light upon successful flame ignition.
If there is air in the gas supply line, it may take a few attempts for the gas to ignite. See Section 9 for gas lockout
resetting. If the ignition is not satisfactory, the red diagnostic LED will illuminate - refer to the Trouble Shooting Guide
(see Section 9).
For Electric Operation - Water Heater: The Water Heater is equipped with twin 600W / 1200 W immersion heater
elements offering operation at 600W or 1200W. For 600W, press the Water Heater Function key until the ‘low power
setting’ icon is illuminated.
For 1200W, press the Water Heater Function key until the ‘high power setting’ icon is illuminated.
Note: The electric elements will still operate if the appliance is in gas ignition lock-out.
to turn on one electric
