To the Fitter:
Installation and servicing of this appliance must only
be carried out by competent persons registered with the Gas
Safe Register (GB) or the relevant national organisation, in accordance with the relevant regulatory and safety
requirements.
Before installation, you must
ensure that the appliance has been supplied in good condition and if damaged, do not
install. Contact Whale Support, +44 (0)345 9090 911.
A competent person must install
the appliance in accordance with the appliance installation instructions. This
appliance is for use with LPG (see appliance data plate) and mains electricity (230V a.c.). Check that the product is
suitable for the intended application, in particular, the installer must
check the compatibility of the data plate
information with the LPG supply requirements of the vehicle. Follow these installation instructions and ensure all
relevant personnel read the points listed below. Also ensure that these operating instructions are passed on to the
end user.
Please note: The appliance must
be installed in accordance with any relevant regulations in the country where the
appliance is installed. For this appliance in Europe, the standard BS EN 1949:2011 “Specification for the
installation of LPG Systems For Habitation Purposes In Leisure Accommodation Vehicles And In Other Road
Vehicles”applies.
6. INSTRUCTIONS FOR INSTALLATION

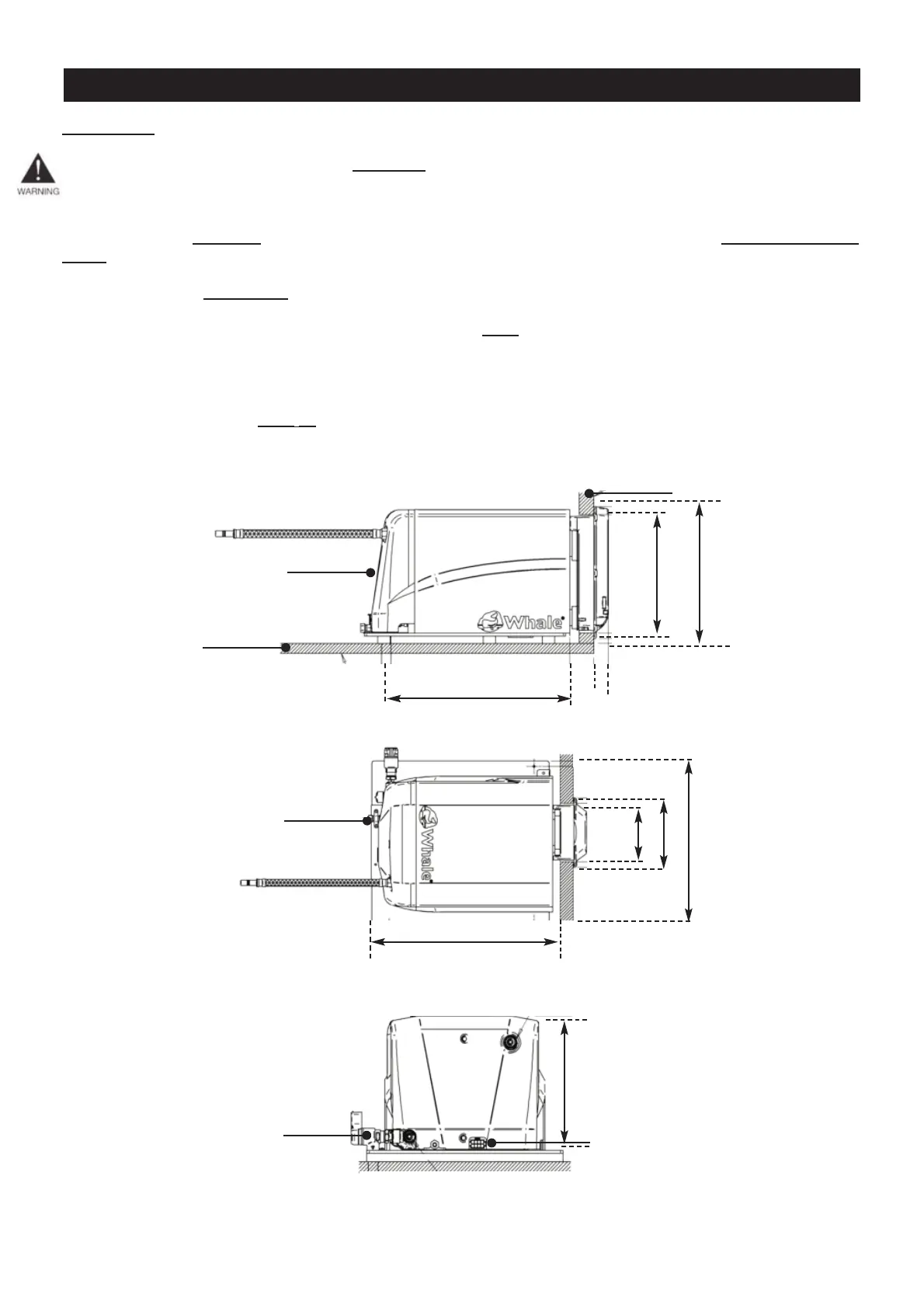

Fig. 2 Dimensions - Side View
Fig. 4 Dimensions - Front View
422mm
30mm
240mm (Cut out in wall)
277mm
Side Wall
Gas In
160mm
360mm
271mm
Fig. 3 Dimensions - Plan View
Vehicle Floor
Water Heater
Side Wall
135 mm
(Cut out
in wall)
470mm
5
Pressure Relief Drain Valve
Red Reset Button
49mm
