The power trim & tilt system located on the gear
shift/throttle lever allows you to raise and lower the
engine for optimum performance in the water and
for trailering, launching and beaching. The switch is
a momentary switch; which means that constant
pressure must be applied to the switch during the
raising and lowering cycle.
Use the trim switch to obtain an ideal boat angle (in
relation to the water surface) for a given load and
water condition. In most cases, best all-round
performance is obtained with the engine adjusted so
that the boat will run at a 3° to 5° angle to the water.
Power Trim Operation
NOTICE
Boats can be operated in a manner and speeds
resulting in trim angles that cause visibility to
be obscurred. Motor trim, hull trim plane and
speed are factors that affect a boat’s trim angle.
REFER TO THE ENGINE MANUFACTURER’S
MANUAL IN YOUR OWNER’S MANUAL PACKET FOR
COMPLETE INSTRUCTIONS, INFORMATION AND
WARRANTY.

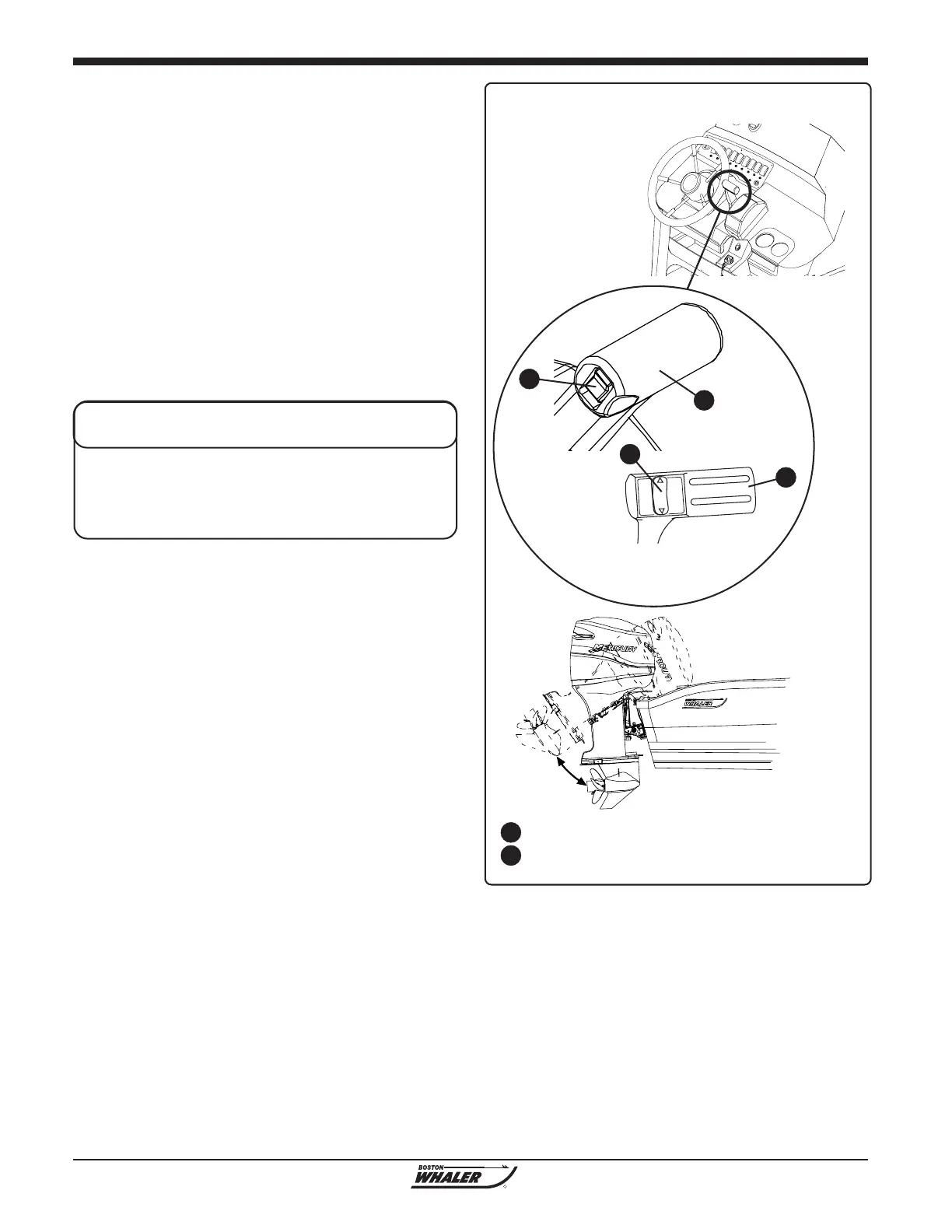

Power Trim Switch
Fig. 2.16.1
THROTTLE/SHIFT CONTROL LEVER
POWER TRIM SWITCH
1
2
1
2
2
OPTIONAL DTS
1
1
2
V
SHIFT/THROTTLE
