whaler 220 Dauntless - Warning!

4-3220 Dauntless
Section 4  Electrical System
R
1
2
V

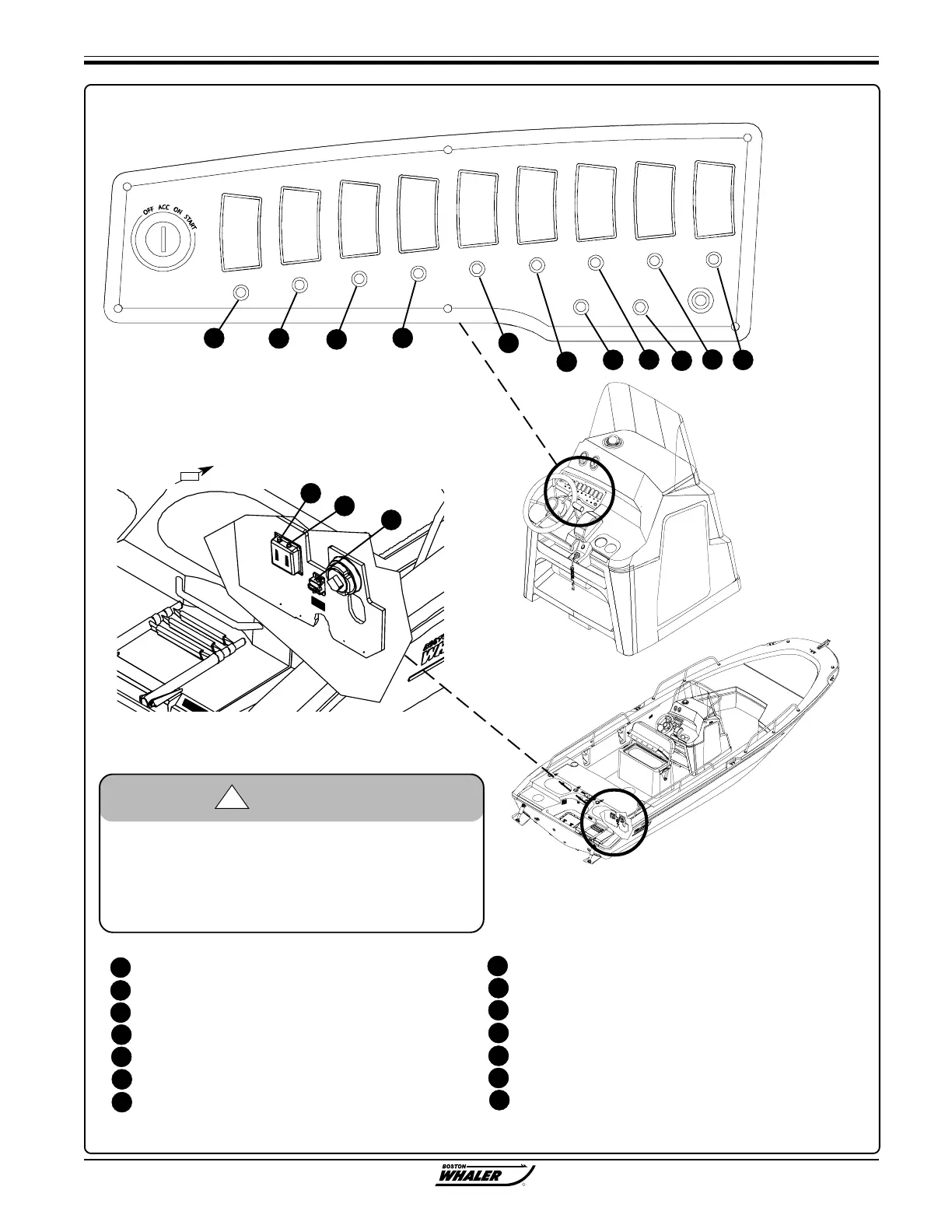

Component Reset breakers
Fig. 4.3.1
HORN
BILGE
NAV/ANC
CRTSY. LT.
AFT
LIVEWELL
HELM SEAT
LIVEWELL
WASHDOWN
FRESH WATER
ACCESSORY
TRIM TAB
12V RECEPTACLE
HORN .................................................. 5 AMP
BILGE PUMP ...................................... 5 AMP
NAV/ANC LIGHTS ............................... 5 AMP
COURTESY LIGHTS ........................... 5 AMP
AFT LIVEWELL PUMP ........................ 2 AMP
HELMSEAT LIVEWELL PUMP ............ 2 AMP*
TRIM TABS ......................................... 20 AMP*
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1 2
4
5
6
7 8
9
10
11
12
13
14
* OPTIONAL
FWD
RAW WATER WASHDOWN ............... 15 AMP*
12V RECEPTACLE ............................. 10 AMP
FRESH WATER PUMP ....................... 10 AMP*
ACCESSORY ...................................... 10 AMP
BILGE PUMP (AUTOMATIC) .............. 5 AMP
STEREO MEMORY ............................. 15 AMP
MAIN DC BREAKER ........................... 50 AMP
3
Use of higher amperage fuses or breakers is a
fire hazard.
Use fuses and breakers having the same
amperage rating as the original or as specified.
!
WARNING
