OPERATING MANUAL AND USER GUIDE
9

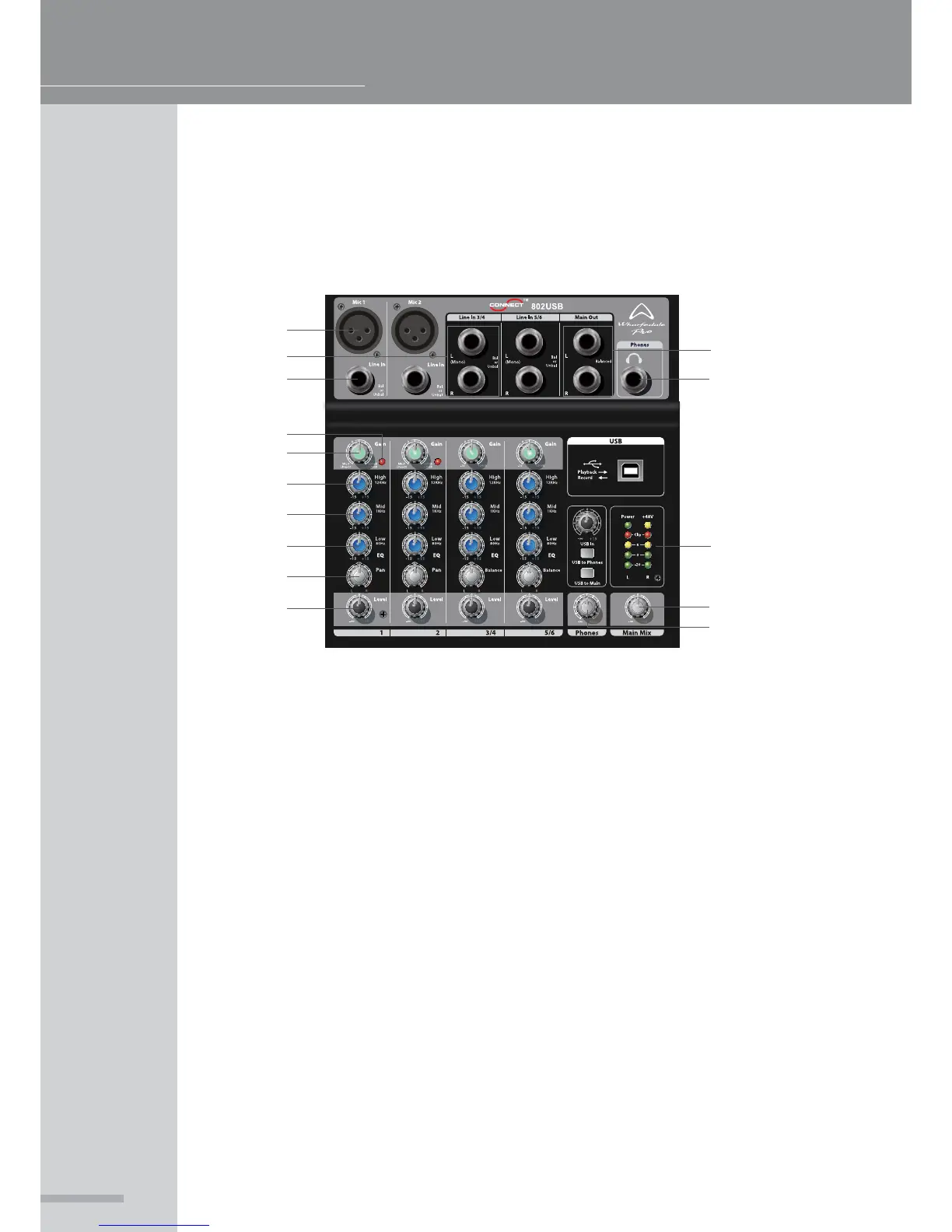

WALKTHOUGH—CONNECT 802USB
1
2
3
4
5
6
7
8
9
10 12
11
1
3
14
15
1. Balanced XLR input for microphone
2. Balanced/Unbalanced TRS input for line level sources (for the STEREO channel)
3. Balanced/Unbalanced TRS input for line level sources
4. Clip LED lit when the signal is overloaded
5. Gain control for calibrating sources and applying correct gain structure
6. High EQ centred at
12kHz
7. Mid EQ centred at 1kHz
8. Low EQ centred at 80Hz
9. Pan/Balance used to spatially place the channel within the stereo eld
1
0. Set the amount of signal to the main mix bus
11. Set the amount of signal to the headphones output
12. Controls the master level of the main outputs
13. Displays the realtime level present at the main output bus
14. To connect headphones
15. Balanced/unbalanced TRS main outputs
