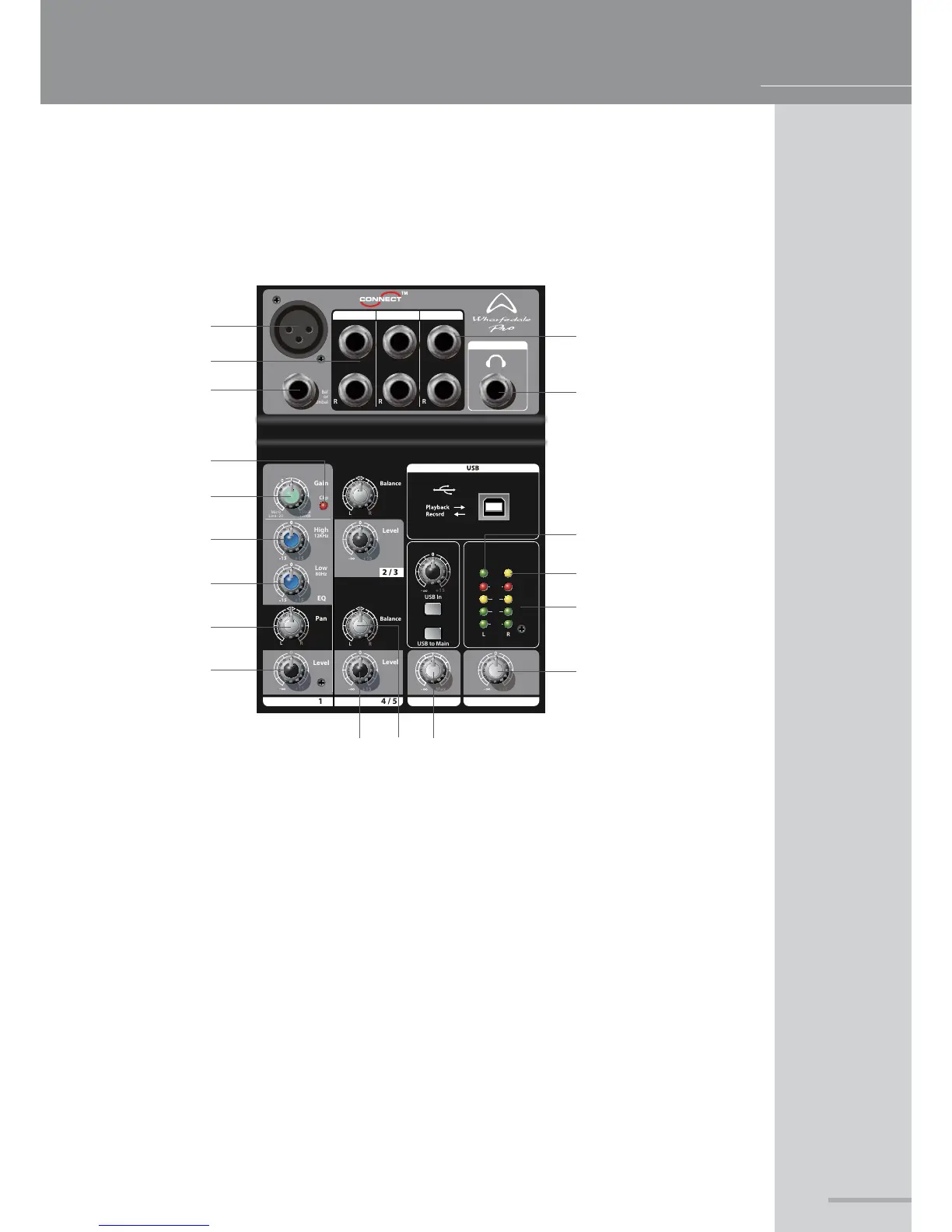

1. Balanced XLR input for microphone
2. Balanced/Unbalanced TRS input for line level sources (for the STEREO channel)
3. Balanced/Unbalanced TRS input for line level sources
4. Clip LED lit when the signal is overloaded
5. Gain control for calibrating sources and applying correct gain structure
6. High EQ centred at
12KHz
7. Low EQ centred at 80Hz
8/11. Pan/Balance used to spatially place the channel within the stereo eld
9/
10. Set the amount of signal to the main mix bus
12. Set the amount of signal to the headphones output
13. Control the master level of the main outputs.
14. Display the realtime level present at the main output bus
15. Indicates +48v phantom power activity
16. Indicates AC power supply
17. To connect headphones
18. Balanced/unbalanced TRS main outputs
1
2
3
4
5
6
7
8
9
1
0
11
1
2
13
14
15
16
17
18
