Wharfedale Pro Connect 502USB User Manual

OPERATING MANUAL AND USER GUIDE
11
Phantom +48V
On Off On Off
AC Input
AC17V
2x1000mA 35W

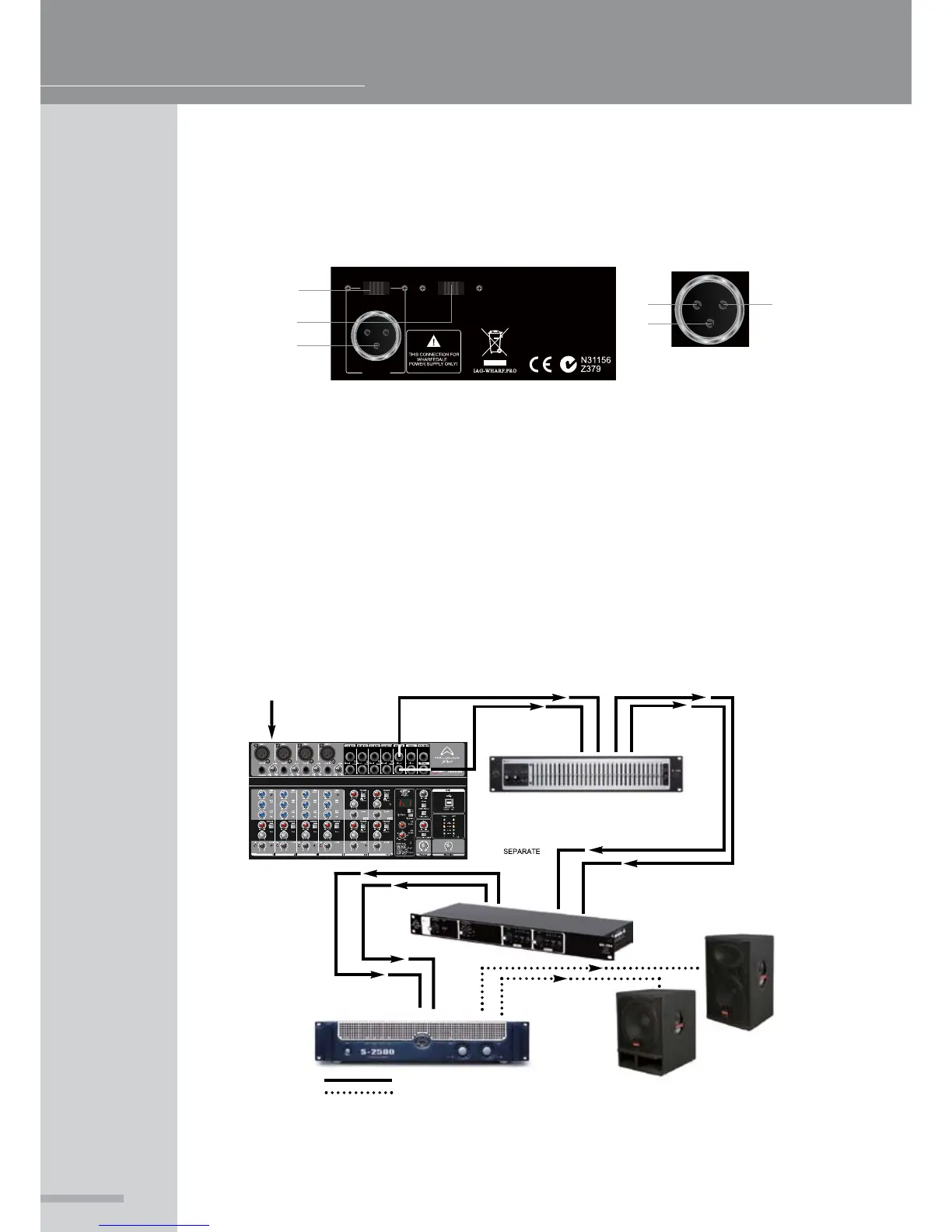

WALKTHROUGH—REAR PANEL
1
2
3
P
1
Phantom +48V
On Off On Off
AC Input
AC17V
2x1000mA 35W
P2
P3
Power
P1-P2: 17V~
P3-P2: 17V~
1. Turn the Connect Mixer on or off
2. AC power supply receptacle
CAUTION:
USE THE POWER ADAPTER AUTHORISED BY Wharfedale Pro ONLY!
3. Switch the global +48V phantom power on or off
WIRING DIAGRAM
INPUT TO
GRAPHIC EQUALISER
OUTPUTS FROM GRAPHIC
EQUALISER TO CROSSOVER
INPUTS TO CROSSOVER
INPUTS TO AMPLIFIER(S)
SEPARATE
LOW
SPEAKER
OUTPUT TO
LOW
FREQUENCY
SPEAKER
FROM
AMPLIFIER
SEPARATE
HIGH/MID
SPEAKER
OUTPUT TO
HIGH/MID
SPEAKER
FROM
AMPLIFIER
= SIGNAL (SHIELDED) CABLE
= LOUDSPEAKER (NON-SHIELDED) CABLE
MIXER
OUTPUT
SEPARATE
HIGH/MID
AND LOW
OUTPUTS TO
AMPLIFIER(S)
FROM
CROSSOVER
SIGNAL INPUT
MIC,CD etc.TO CONNECT MIXERS

Wharfedale Pro Connect 502USB Specifications

General

Brand	Wharfedale Pro
Model	Connect 502USB
Category	Music Mixer
Language	English
