COMPONENT ACCESS
Whirlpool 2014 CABRIO
®
Direct Drive Washer
n
4-5
Plasc Mounng Clips

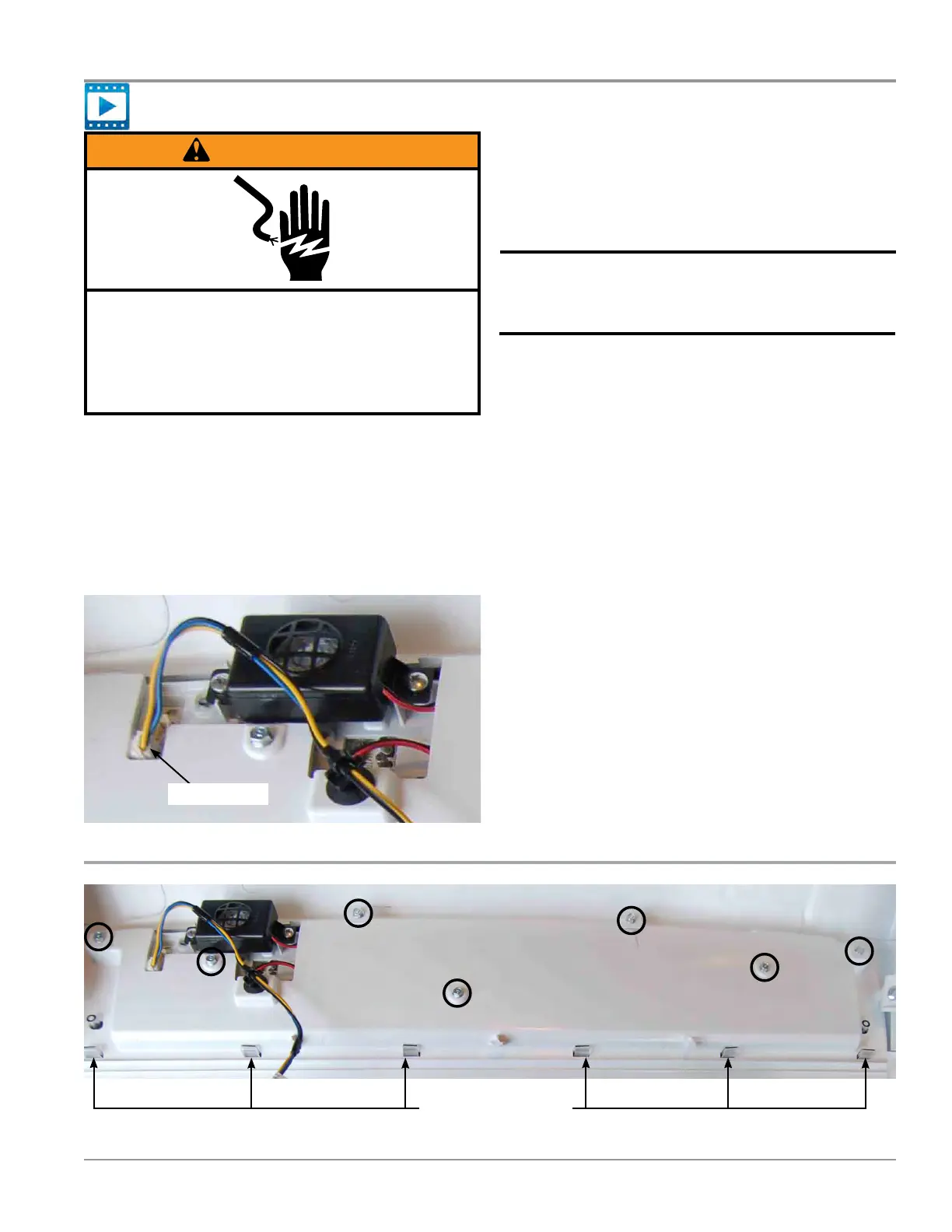

Removing the User Interface
1. Unplug washer or disconnect power.
2. Perform the procedures on pages 4-3 or 4-4, “Removing
the Console” prior to performing the following steps.
3. Disconnect the 3-wire harness from the User Interface
(see Figure 1).
Figure 1
Removing the User Interface (UI)
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Failure to do so can result in death or
electrical shock.
Replace all parts and panels before operating.
Figure 2
4. Remove the seven (7) 1/4” hex-head screws securing the
User Interface to the console (see Figure 2).
5. Using a at blade screwdriver, gently, depress the six
plasc mounng clips to release the User Interface from
the console (see Figure 2).
6. User Interface should separate and li away from console.
REASSEMBLY NOTE: When reinstalling the User Interface to
the console, only hand tighten the seven (7) hex-head screws
until snug. Using a power driver will strip the screw holes and
stress the capacitive touch user interface.
3-Wire Harness

Whirlpool Cabrio WTW8500DW Specifications

General

Brand	Whirlpool
Model	WTW8500DW
Type	Top Load Washer
Color	White
Energy Star Certified	Yes
Control Type	Electronic
Steam Function	Yes
Water Level Options	Automatic
Wash Cycles	12
