44

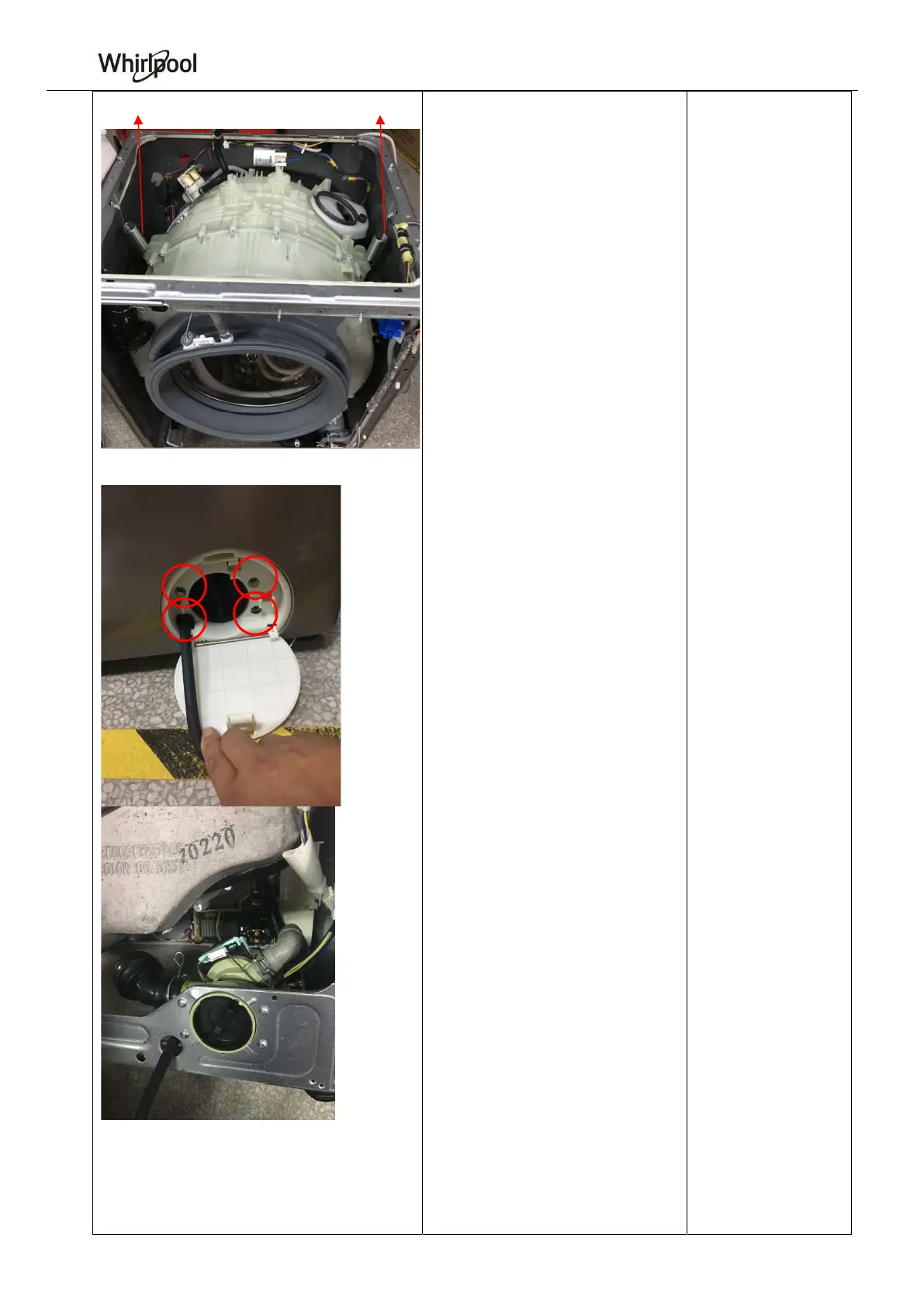

19. Outer drum
A By 2 to 3 people working together,
lift the outer drum assembly from the
suspension springs at both sides. Take
it out from the cabinet and place it on
the floor that is covered with a
protective mat.
20
Removal notes for water drainage
pump, upper drainage models
A Pull out the emergency filter flap as
shown in picture and pull out the
emergency drainage pipe.
B Remove the 4 screws as shown in
picture.
C
Tilt the washing machine. Remove
the left and right pipe clamps and 2
harness plugs. Remove the drainage
pump.
Pay attention to your
own safety when
performing it. In
addition, special
attention should be
paid when installing
the outer drum
(restor
ing &
installation). Be sure
to install the shock
absorber piston rod
into the shock
absorber sleeve.
