Freezer Components (continued)
Replacing Auger Motor and Related
Components

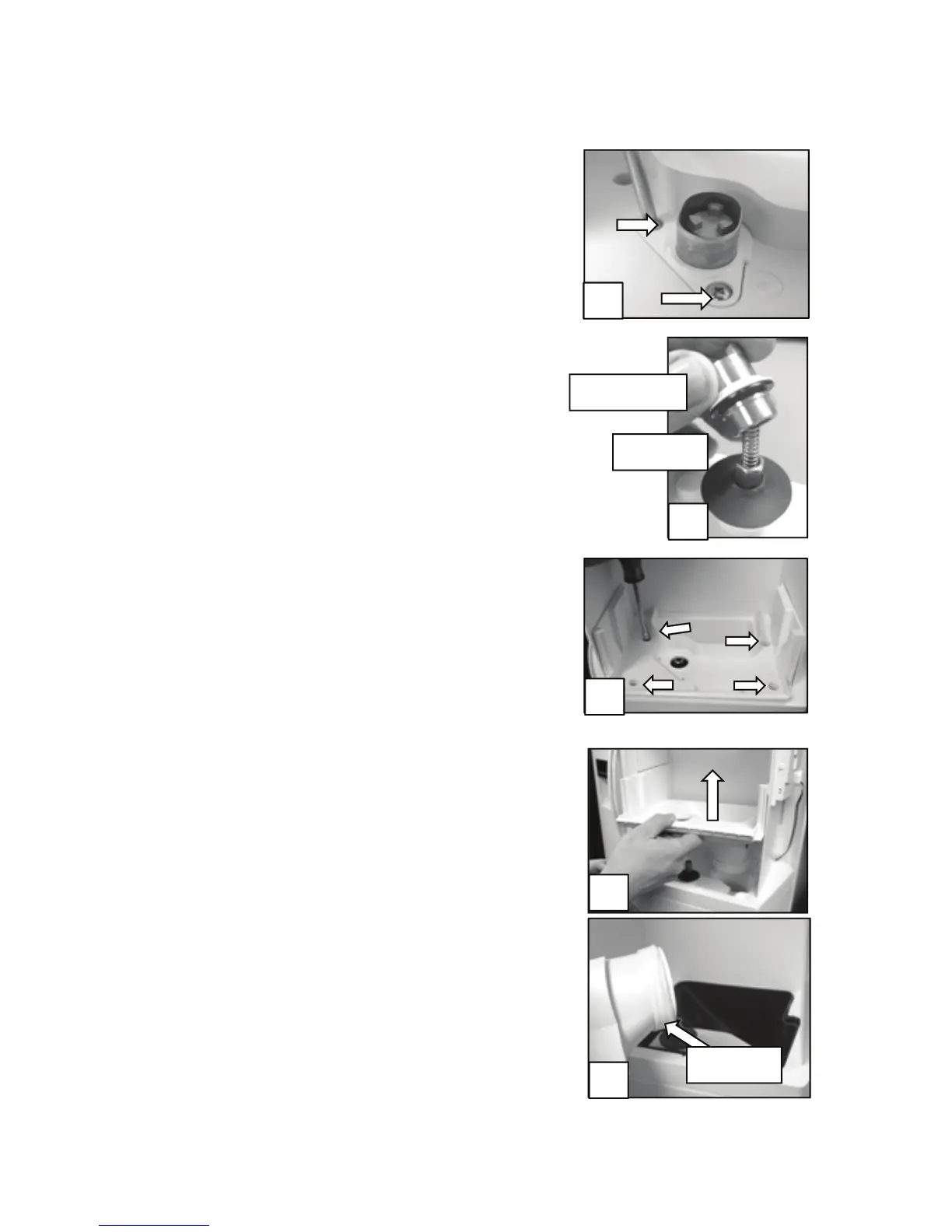

1. Remove 2 screws and lift off cover.
2. Remove the coupling by lifting straight up.
A spring is captured under the coupling.
3. To access the motor remove the 4 - 1/4”
screws securing the chute to the
housing.
4. Lift out the chute. The chute may require
some effort to remove because of the
foam seal around the chute tube.
5. Inspect seal and repair or replace if
necessary before reassembly.
Coupling
Spring
Spring
1
5
4
2
3
Foam Seal
