Whirlpool HB10813 - Installation Methods; Window Installation Type

- 8 -
澬Installation Method澭
Window Type
Size
Front Panel (HxW): 254x254 mm
Machine Body* (HxW): 209x207 mm
* Exclude the front panel
Window Cut Out (HxW): 214x212 mm

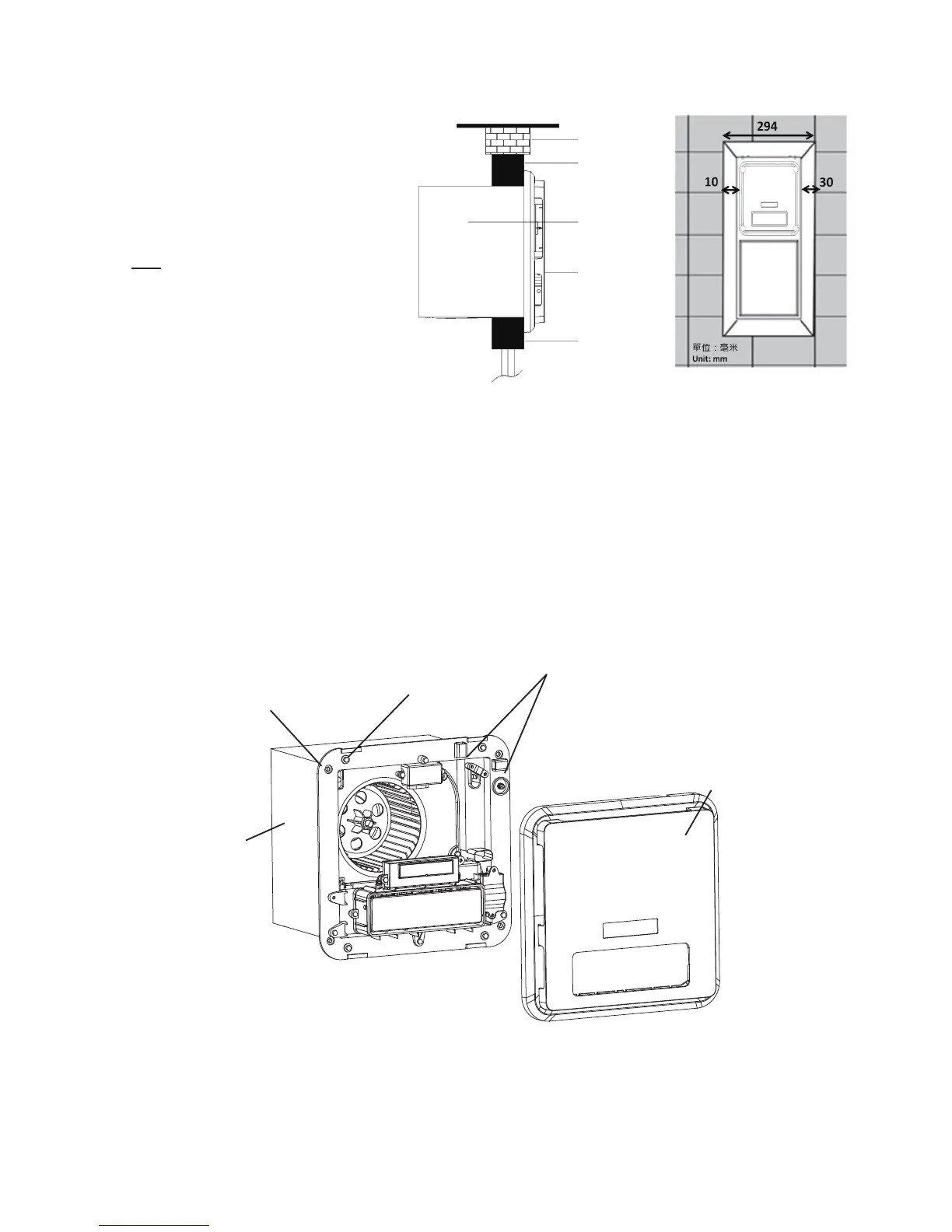

1. Install at the place of the aluminum framed window or replace the exhaust fan in the
bathroom.
2. Fix the stainless steel housing to the frame of the aluminum window (must use the
waterproof glue for the waterproof).
3. This pro
duct can be installed on a window with a frame width of 294mm or above. In the
left side, it is suggested to reserve a distance of minimum 10mm between the product and
the wall. In the right side, please reserve a distance of minimum 30mm between the
product and the wall for the ease of filter installation.
9ZGOTRKYY9ZKKR
.U[YOTM
=GRR
Stainless Steel
housing
Front panel
Fixed screw of
the main body
Outlet holes of power cord
Nails fixed hole
,XUTZ6GTKR

=OTJU]
=OTJU]

