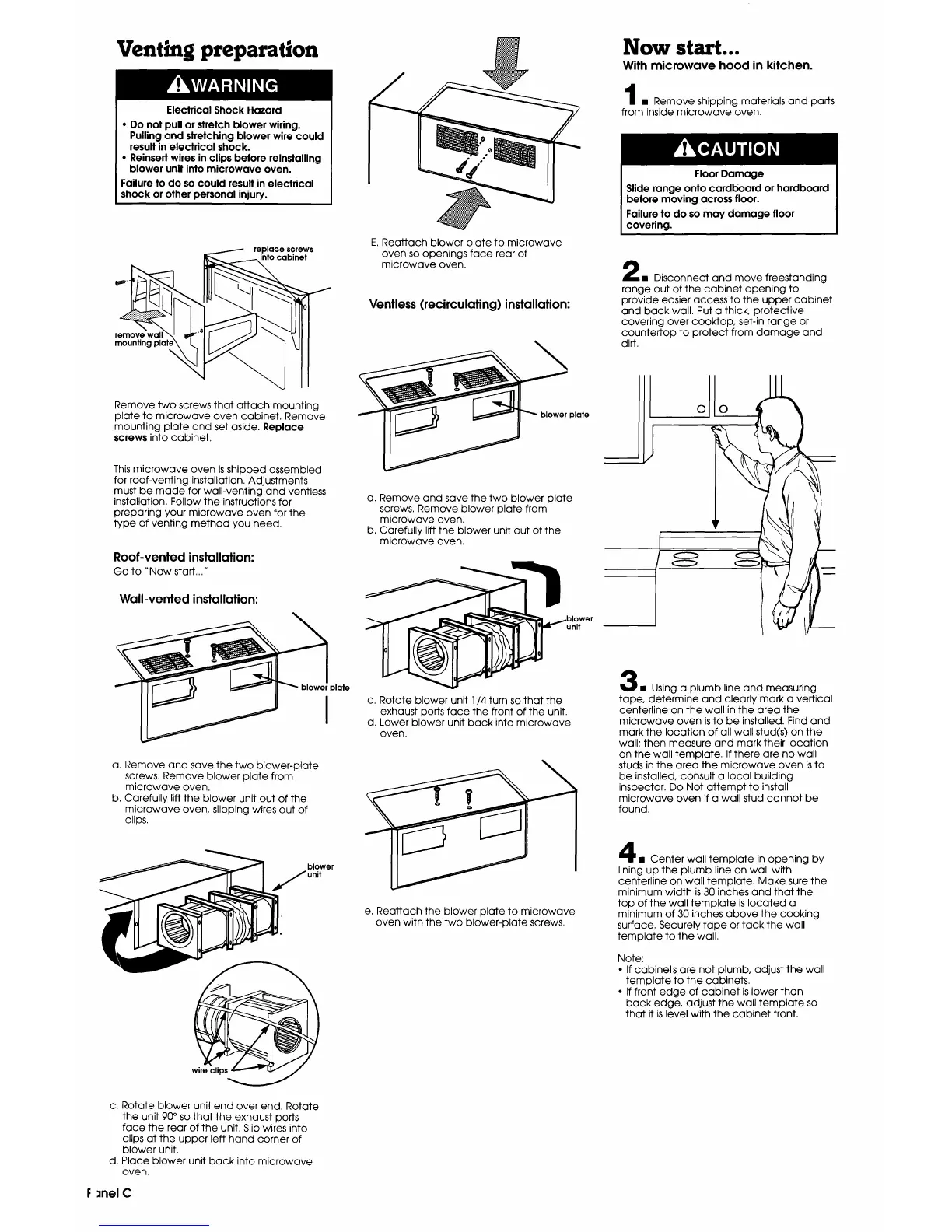

Venting preparation
Electrical Shock Hazard
• Do not pull or stretch blower wiring.
Pulling and stretching blower wire could
result in electrical shock.
• Reinserl wires in clips before reinstalling
blower unit into microwave oven.
Failure to do so could result in electrical
shock or other personal injury.
replace screws
into cabinet
remove wall
mounting
E. Reattach blower plate to microwave
oven so openings face rear of
microwave oven.
Ventless (recirculating) installation:
\
Now start...
With microwave hood in kitchen.
1 Remove shipping materials and parts
from inside microwave oven.
Floor Damage
Slide range onto cardboard or hardboard
before moving across floor.
Failure to do so may damage floor
covering.
n Disconnect and move freestanding
range out of the cabinet opening to
provide easier access to the upper cabinet
and back wall. Put a thick, protective
covering over cooktop, set-in range or
countertop to protect from damage and
diff.
Remove two screws that aftach mounting
plate to microwave oven cabinet. Remove
mounting plate and set aside. Replace
screws into cabinet.
This microwave oven is shipped assembled
for roof-venting installation. Adjustments
must be made for wall-venting and ventless
installation. Follow the instructions for
preparing your microwave oven for the
type of venting method you need.
Roof-vented installation:
Go to "Now start.. "
Wall-vented installation:
blower plate
I
a. Remove and save the two blower-plate
screws. Remove blower plate from
microwave oven.
b. Carefully lift the blower unit out of the
microwave oven, slipping wires out of
clips.
blower
unit
c. Rotate blower unit end over end. Rotate
the unit 90° so that the exhaust ports
face the rear of the unit. Slip wires into
clips at the upper left hand corner of
blower unit.
d. Place blower unit back into microwave
oven.
blower plate
a. Remove and save the two blower-plate
screws. Remove blower plate from
microwave oven.
b. Carefully lift the blower unit out of the
microwave oven.
)wer
unit
c. Rotate blower unit 1/4 turn so that the
exhaust ports face the front of the unit.
d. Lower blower unit back into microwave
oven.
e. Reaftach the blower plate to microwave
oven with the two blower-plate screws.
0 0
0
0 0
m
m Using a plumb line and measuring
tape, determine and clearly mark a vertical
centerline on the wall in the area the
microwave oven isto be installed. Find and
mark the location of all wall stud(s) on the
wall; then measure and mark their location
on the wall template. If there are no wall
studs in the area the microwave oven isto
be installed, consult a local building
inspector. Do Not attempt to install
microwave oven if a wall stud cannot be
found.
m Center wall template in opening by
lining up the plumb line on wall with
centerline on wall template. Make sure the
minimum width is 30 inches and that the
top of the wall template is located a
minimum of 30 inches above the cooking
surface. Securely tape or tack the wall
template to the wall.
Note:
• If cabinets are not plumb, adjust the wall
template to the cabinets.
• If front edge of cabinet is lower than
back edge, adjust the wall template so
that it islevel with the cabinet front.
F _nel C
