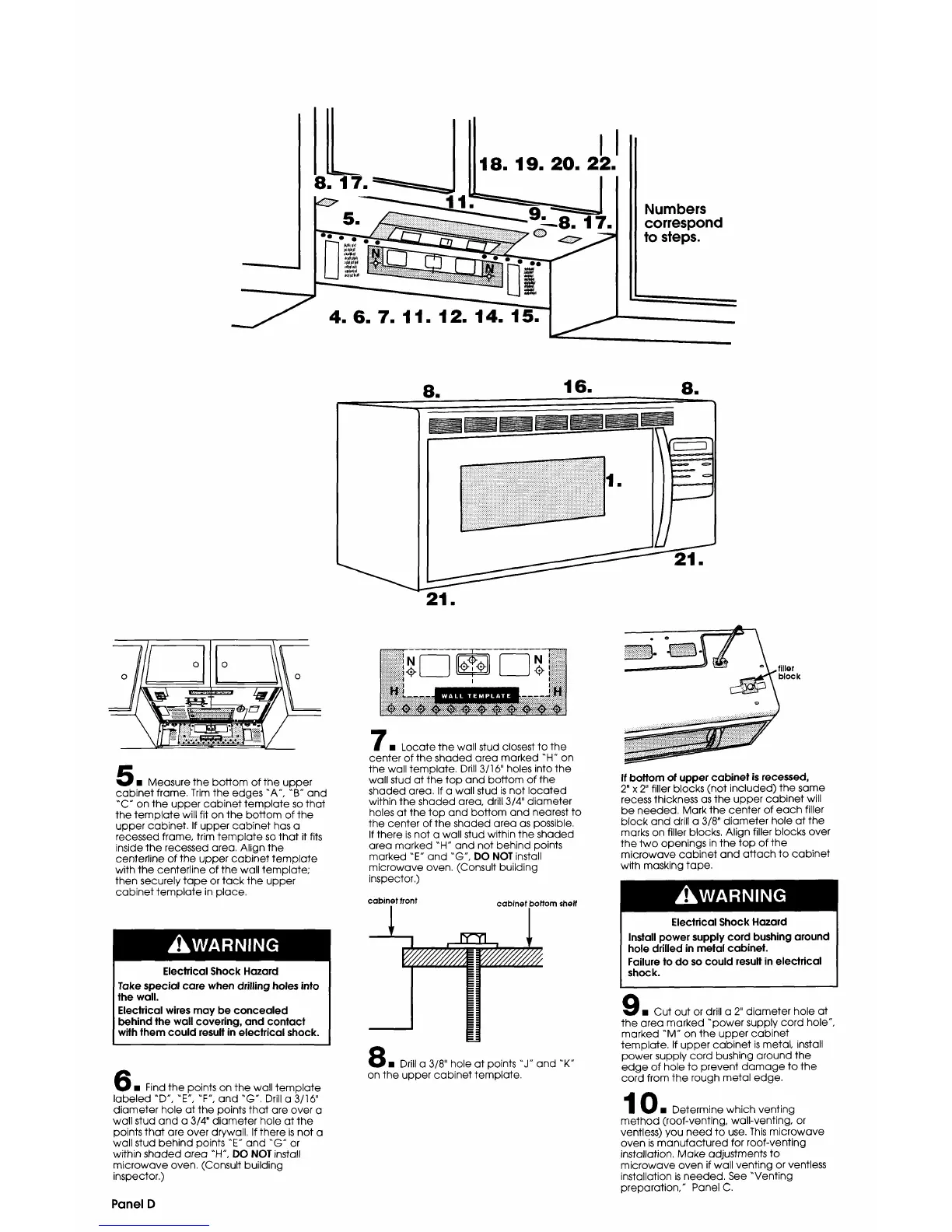

II
18. 19. 20. 22.
8. 17.
17.
Numbers
correspond
to steps.
4.6.7.11.12.14.1
.
an
0
°1°
0
-, Measure the bottom of the upper
cabinet frame. Trim the edges "A", "B" and
"C" on the upper cabinet template so that
the template will fit on the bottom of the
upper cabinet. If upper cabinet has a
recessed frame, trim template so that it fits
inside the recessed area. Align the
centerline of the upper cabinet template
with the centerline of the wall template;
then securely tape or tack the upper
cabinet template in place.
Electrical Shock Hazard
Take special care when drilling holes into
the wall.
Electrical wires may be concealed
behind the wall covering, and contact
with them could result in electrical shock.
-. Find the points on the wall template
labeled "D", "E', "F", and "G". Drill a 3/16""
diameter hole at the points that are over a
wall stud and a 3/4"" diameter hole at the
points that are over drywall. If there is not a
wall stud behind points "E" and "G" or
within shaded area "H', DO NOT install
microwave oven. (Consult building
inspector.)
Panel D
I
- Locate the wall stud closest to the
center of the shaded area marked "H" on
the wall template. Drill 3/16" holes into the
wall stud at the top and boiffom of the
shaded area. If a wall stud is not located
within the shaded area, drill 3/4" diameter
holes at the top and bottom and nearest to
the center of the shaded area as possible.
If there is not a wall stud within the shaded
area marked "H" and not behind points
marked "E" and "G', DO NOT install
microwave oven. (Consult building
inspector.)
cabinet front
cabinet bottom shelf
,. Drill a 3/8"" hole at points "J" and "K"
on the upper cabinet template.
filler
If boffom of upper cabinet is recessed,
2" x 2" filler blocks (not included) the same
recess thickness as the upper cabinet will
be needed. Mark the center of each filler
block and drill a 3/8" diameter hole at the
marks on filler blocks. Align filler blocks over
the two openings in the top of the
microwave cabinet and attach to cabinet
with masking tape.
Electrical Shock Hazard
Install power supply cord bushing around
hole drilled in metal cabinet.
Failure to do so could result in electrical
shock.
.. Cut out or drill a 2" diameter hole at
the area marked "power supply cord hole",
marked "M" on the upper cabinet
template. If upper cabinet ismetal, install
power supply cord bushing around the
edge of hole to prevent damage to the
cord from the rough metal edge.
0 • Determine which venting
method (roof-venting, wall-venting, or
ventless) you need to use. This microwave
oven is manufactured for roof-venting
installation, Make adjustments to
microwave oven if wall venting or ventless
installation is needed. See "Venting
preparation," Panel C.
To Next Page
