MSEX0105i – Electronic No Frost Refrigerator Bottom Mount/ Dual Fan - Maestro High 34

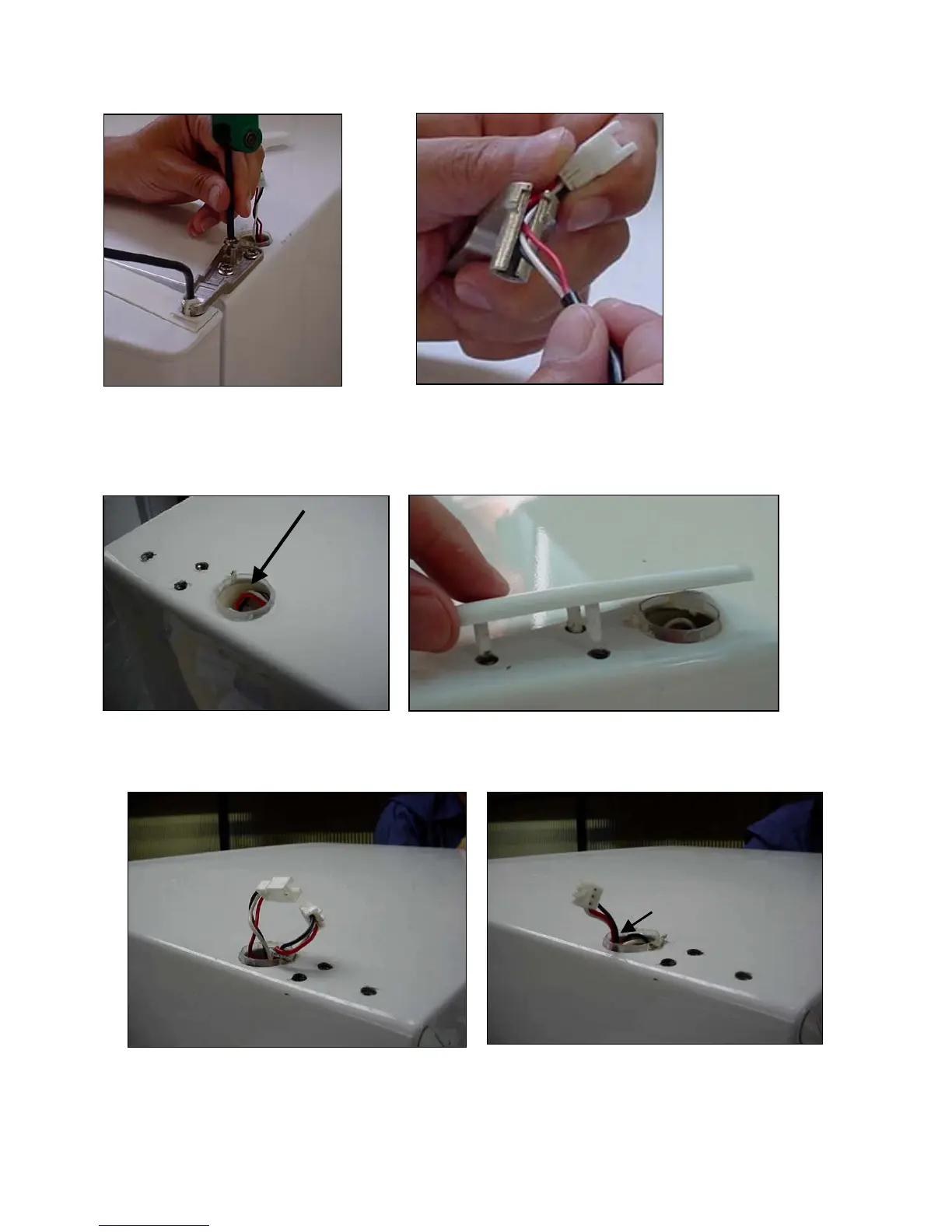

• Remove the upper Hinge screws and then the Hinge itself;
• Remove the Refrigerator Door;
• Hide the wire connector into the cabinet housing, then remove the plastic cover from left side and
place it on the right-hand;
• On the left side of the cabinet, release the hidden wire connectors, then, disconnect them keeping
the female connector outside to plug it later on at the freezer Door connector.
Note: The male connector must be kept inside of the cabinet housing
Female Connector
Male Connector
To Next Page
