MSEX0105i – Electronic No Frost Refrigerator Bottom Mount/ Dual Fan - Maestro High 36

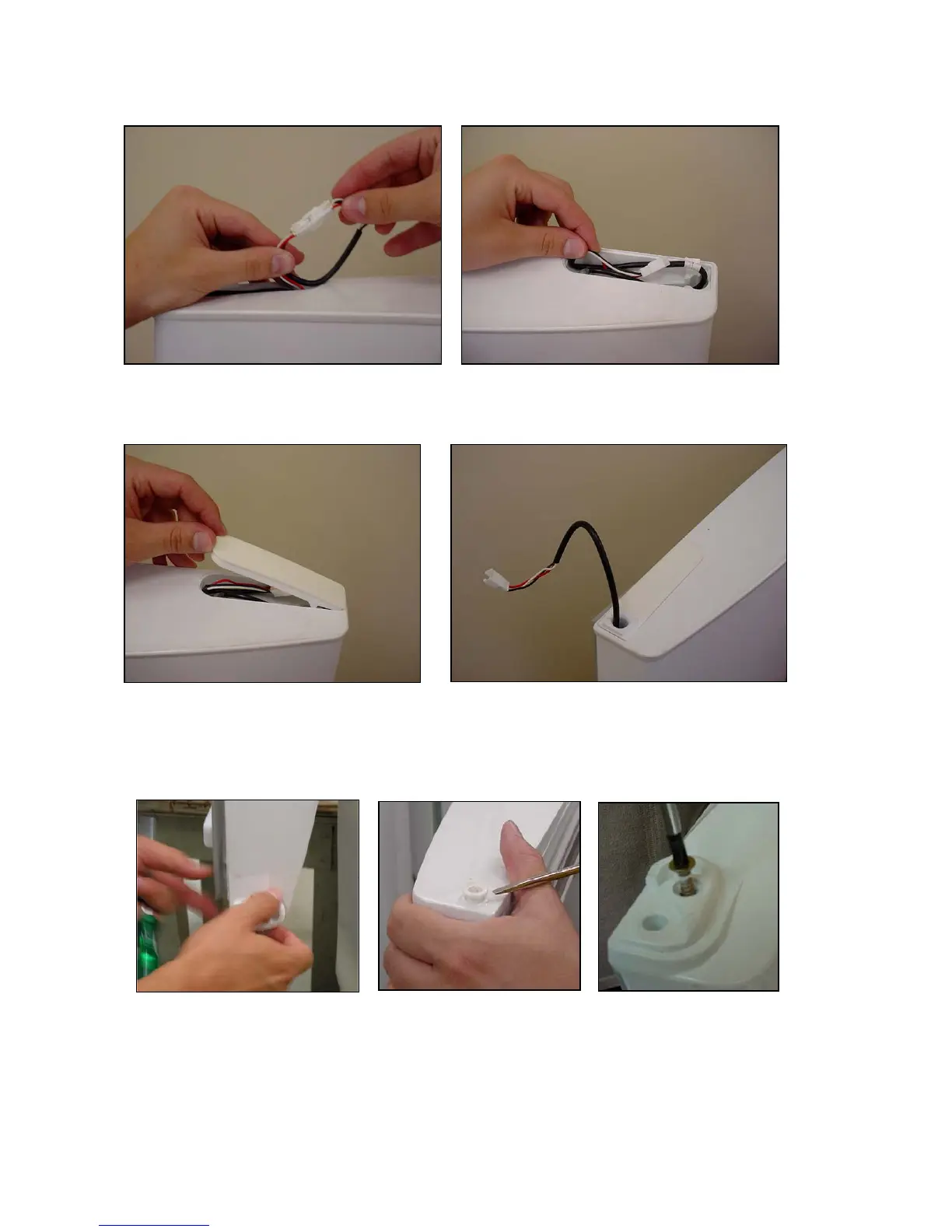

• On the right, law the cable under the end cap housing;
• While in the opposite side, disconnect the hidden cables, keeping the male connector outside and
the female connector inside the end cap housing;
• Close the end caps housing, reassembling the finishing plastic cover (in the right side) and the plastic
cover & bushing (in the left side);
• At the lower part, remove the right-hand clicking bushing;
• On the left side, remove the bushing and place it in the opposite side where the right-hand clicking
bushing was installed
• Install the the left-hand clicking bushing which is available on the Kit
• Repeat the same procedure indicated above to install the clicking Bushing on the Freezer Door
