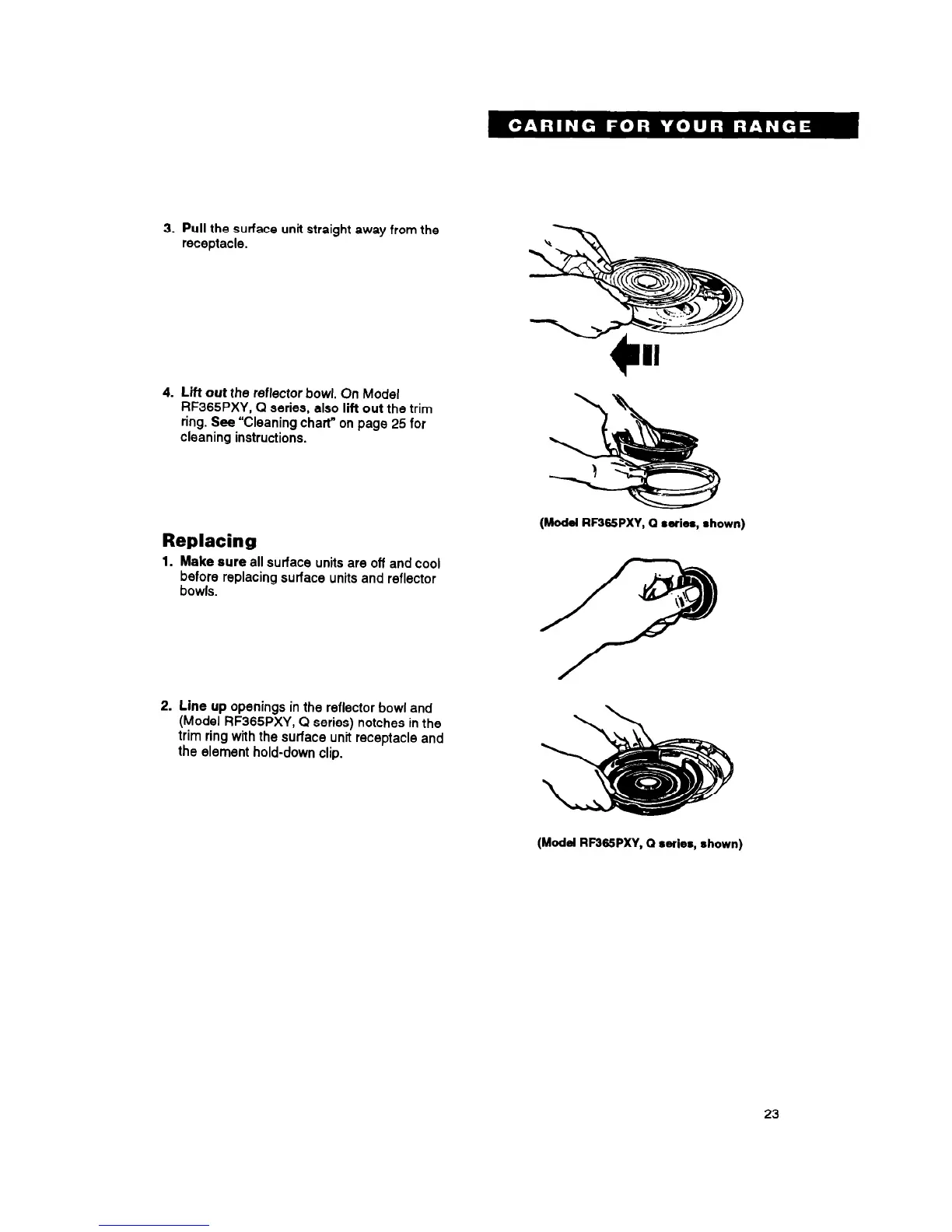

3. Pull the surface unit straight away from the
receptacle.
4. Lift out the reflector bowl. On Model
RF365PXY, Q series, also lift out the trim
ring. See “Cleaning chart” on page 25 for
cleaning instructions.
Replacing
1. Make sure all surface units are off and cool
before replacing surface units and reflector
bowls.
2. Line up openings in the reflector bowl and
(Model RF365PXY, Q series) notches in the
trim ring with the surface unit receptacle and
the element hold-down clip.
(Model RF365PXY, Q series, shown)
(Model RF365PXY, Q series, shown)
23
