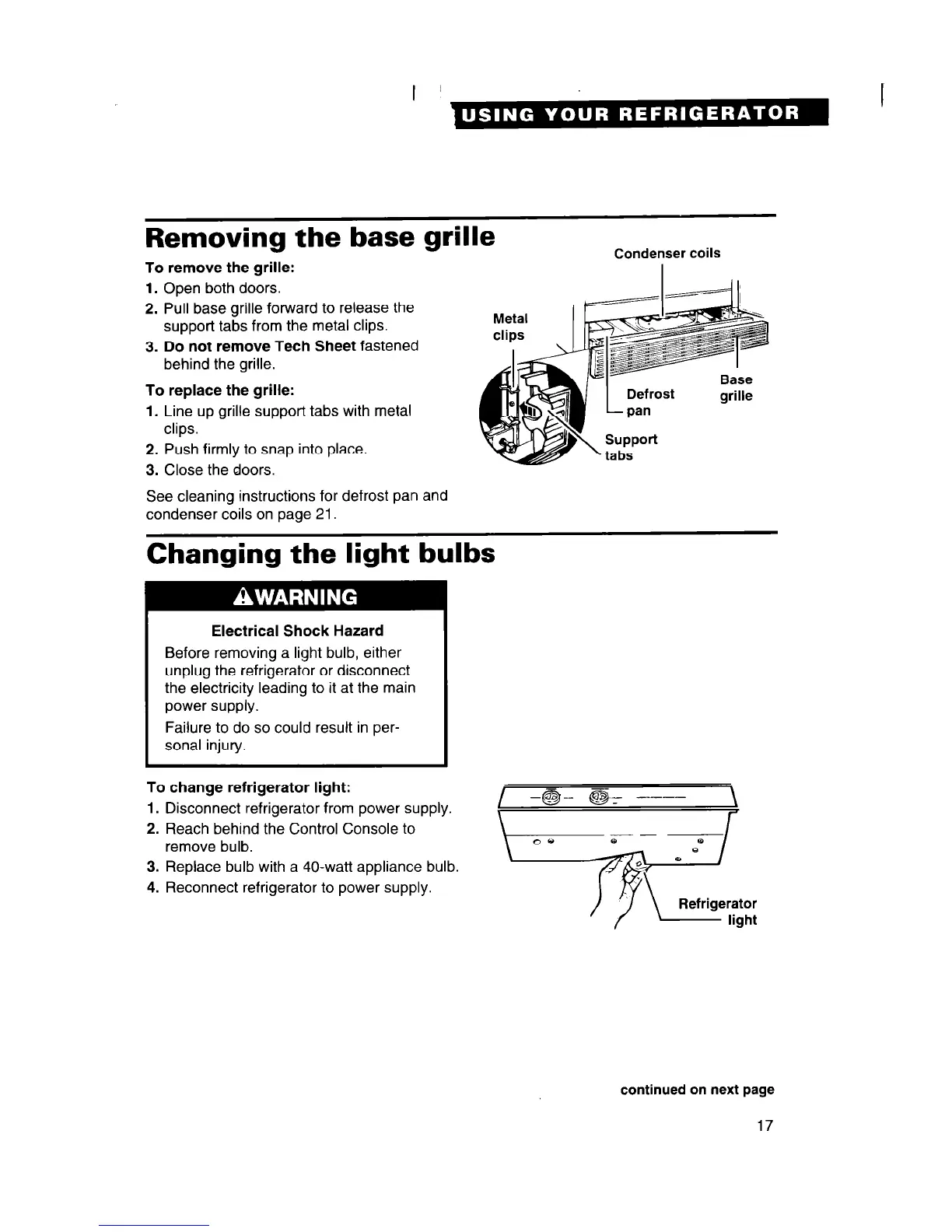

Removing the base
gril
To remove the grille:
1. Open both doors.
2. Pull base grille forward to release the
support tabs from the metal clips.
3. Do not remove Tech Sheet fastened
behind the grille.
To replace the grille:
1. Line up grille support tabs with metal
clips.
2. Push firmly to snap into place.
3. Close the doors.
See cleaning instructions for defrost pan and
condenser coils on page 21.
Electrical Shock Hazard
Before removing a light bulb, either
unplug the refrigerator or disconnect
the electricity leading to it at the main
power supply.
Failure to do so could result in per-
sonal injury.
Changing the light bulbs
To change refrigerator light:
1. Disconnect refrigerator from power supply.
2. Reach behind the Control Console to
remove bulb.
3. Replace bulb with a 40-watt appliance bulb.
4. Reconnect refrigerator to power supply.
continued on next page
17
