Whirlpool W5WCE065XW0 User Manual

2-1
Installation Information

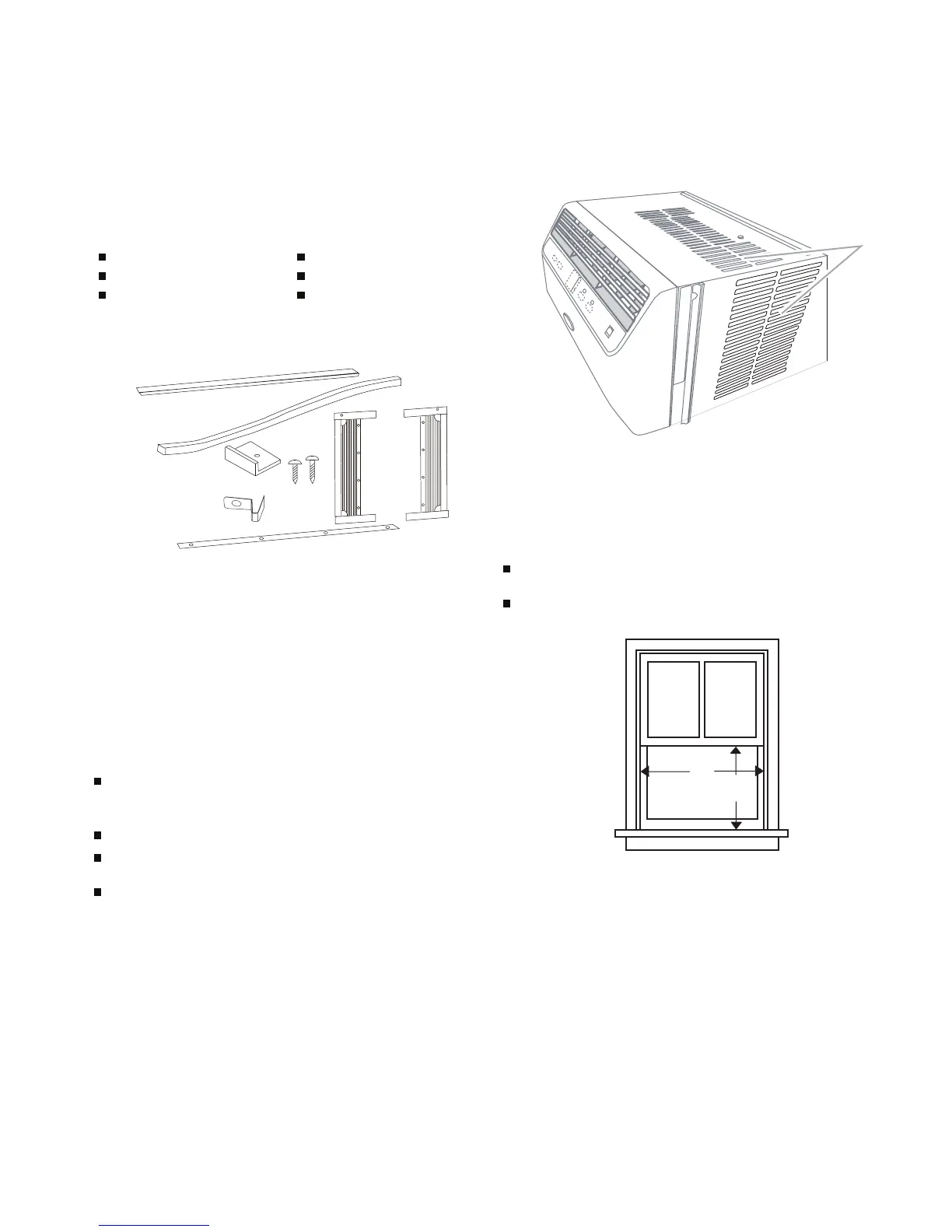

Tools and Pa rts—All Models
Gather the required tools and parts before starng installaon.
Read and follow the instrucons provided with any tools listed
here.
To o ls needed
Parts supplied
Check that all parts are included in parts package.
Locaon Requirements—All Models
IMPORTANT: Observe all governing codes and ordinances.
Check the locaon where the air condioner will be installed.
Make sure you have everything necessary for correct installaon.
The locaon should provide:
Grounded electrical outlet within 6  (183 cm) of where the
power cord exits the air condioner.
NOTE: Do not use an extension cord.
Free movement of air in room to be cooled.
A large enough opening for the air condioner. Installaon
parts are supplied for double-hung windows.
Adequate wall support for weight of air condioner. Air
condioner weighs 50 lbs to 75 lbs (22.7 kg to 34 kg).
NOTE: Cabinet louvers must not be obstructed. Air must be able
to pass freely through the cabinet louvers.
Window installaon
Window opening measurements:
21" (53.3 cm) minimum to 36 1/2" (85cm) maximum opening
width.
13
1/2" (34.3 cm) minimum opening height.
Phillips screwdriver
Scissors
Level
Tape measure
Cordless drill and 1
/8
" bit
Pencil
A. Foam seal with
adhesive strip
B. Foam seal without
adhesive strip
C. Window lock
bracket
D. Side bracket
(on some
models)
E. 3/4" screws (4)
(5k, 6k and 8k
models only)
F. 3/4" screws (5)
(6 provided on 10k
and 12k models)
G. Side curtains (2)
H. Top channel seal
(on some models)
A
B
C
D
EF
G
H
A. Cabinet louvers
A.21" (53.3 cm) minimum
B.13
1/2" (34.3 cm) minimum
A
A
B
333/4
Tools and Pa rts—All Models
Gather the required tools and parts before starng installaon.
Read and follow the instrucons provided with any tools listed
here.
To o ls needed
Parts supplied
Check that all parts are included in parts package.
Locaon Requirements—All Models
IMPORTANT: Observe all governing codes and ordinances.
Check the locaon where the air condioner will be installed.
Make sure you have everything necessary for correct installaon.
The locaon should provide:
Grounded electrical outlet within 6  (183 cm) of where the
power cord exits the air condioner.
NOTE: Do not use an extension cord.
Free movement of air in room to be cooled.
A large enough opening for the air condioner. Installaon
parts are supplied for double-hung windows.
Adequate wall support for weight of air condioner. Air
condioner weighs 50 lbs to 75 lbs (22.7 kg to 34 kg).
NOTE: Cabinet louvers must not be obstructed. Air must be able
to pass freely through the cabinet louvers.
Window installaon
Window opening measurements:
21" (53.3 cm) minimum to 36 1/2" (85cm) maximum opening
width.
131/2" (34.3 cm) minimum opening height.
Phillips screwdriver
Scissors
Level
Tape measure
Cordless drill and 1
/8
" bit
Pencil
A. Foam seal with
adhesive strip
B. Foam seal without
adhesive strip
C. Window lock
bracket
D. Side bracket
(on some
models)
E. 3/4" screws (4)
(5k, 6k and 8k
models only)
F. 3/4" screws (5)
(6 provided on 10k
and 12k models)
G. Side curtains (2)
H. Top channel seal
(on some models)
A
B
C
D
EF
G
H
A. Cabinet louvers
A.21" (53.3 cm) minimum
B.13
1/2" (34.3 cm) minimum
A
A
B 333/4
Tools and Pa rts—All Models
Gather the required tools and parts before starng installaon.
Read and follow the instrucons provided with any tools listed
here.
To o ls needed
Parts supplied
Check that all parts are included in parts package.
Locaon Requirements—All Models
IMPORTANT: Observe all governing codes and ordinances.
Check the locaon where the air condioner will be installed.
Make sure you have everything necessary for correct installaon.
The locaon should provide:
Grounded electrical outlet within 6  (183 cm) of where the
power cord exits the air condioner.
NOTE: Do not use an extension cord.
Free movement of air in room to be cooled.
A large enough opening for the air condioner. Installaon
parts are supplied for double-hung windows.
Adequate wall support for weight of air condioner. Air
condioner weighs 50 lbs to 75 lbs (22.7 kg to 34 kg).
NOTE: Cabinet louvers must not be obstructed. Air must be able
to pass freely through the cabinet louvers.
Window installaon
Window opening measurements:
21" (53.3 cm) minimum to 36 1/2" (85cm) maximum opening
width.
13
1/2" (34.3 cm) minimum opening height.
Phillips screwdriver
Scissors
Level
Tape measure
Cordless drill and 1
/8
" bit
Pencil
A. Foam seal with
adhesive strip
B. Foam seal without
adhesive strip
C. Window lock
bracket
D. Side bracket
(on some
models)
E. 3/4" screws (4)
(5k, 6k and 8k
models only)
F. 3/4" screws (5)
(6 provided on 10k
and 12k models)
G. Side curtains (2)
H. Top channel seal
(on some models)
A
B
C
D
EF
G
H
A. Cabinet louvers
A.21" (53.3 cm) minimum
B.13
1/2" (34.3 cm) minimum
A
A
B
333/4

Whirlpool W5WCE065XW0 Specifications

General

Brand	Whirlpool
Model	W5WCE065XW0
Type	Window Air Conditioner
Room Size	Up to 250 sq. ft.
Energy Efficiency Ratio (EER)	11.0
Voltage	115V
Fan Speeds	3
Cooling Settings	3
Filter Type	Washable
Installation Type	Window
Noise Level	52 dB
Cooling Capacity	6000 BTU
