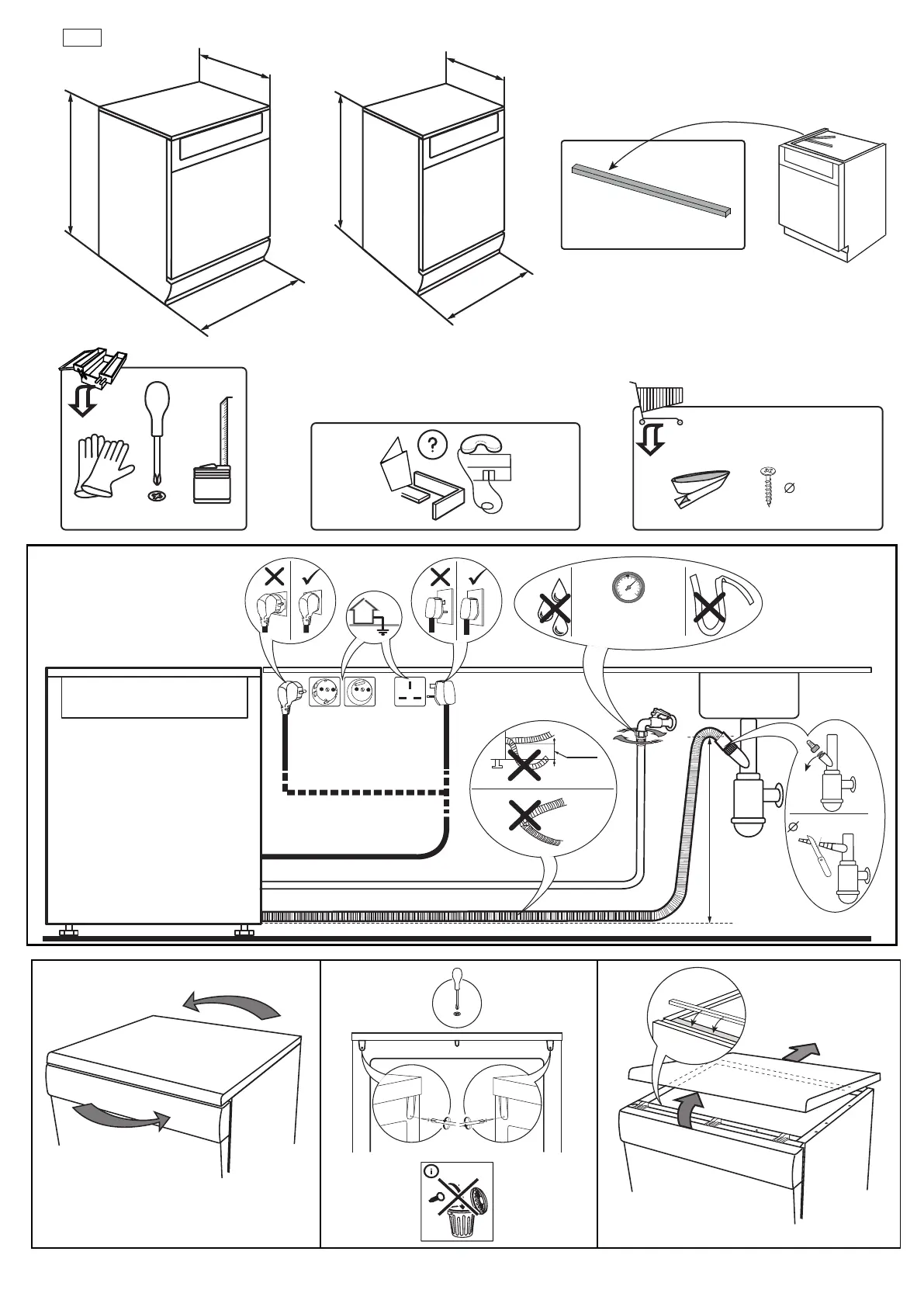

Whirlpool WFC 3B19 - Installation Diagrams; Dimensions and Components; Plumbing and Electrical Connections

22
mm
590
590
600
850
850
450
min: 400 mm max: 800 mm
~1500 mm
~1500 mm
~2000 mm
min: 25mm
min: 0,05 MPa/0,5 Bar
max: 1 Mpa/10 Bar
min.
10 mm
b
c d
2x
3,5x16 mm
SERVICE
b
1 2 3
60 cm
45 cm
41 / 42 dB
a
585/435 mm
a
