TECHNICAL MEMO
Removing the door hinged.
*When removing the Door Panel, we
need to Remove first the plint panel.
(Refer to image below)

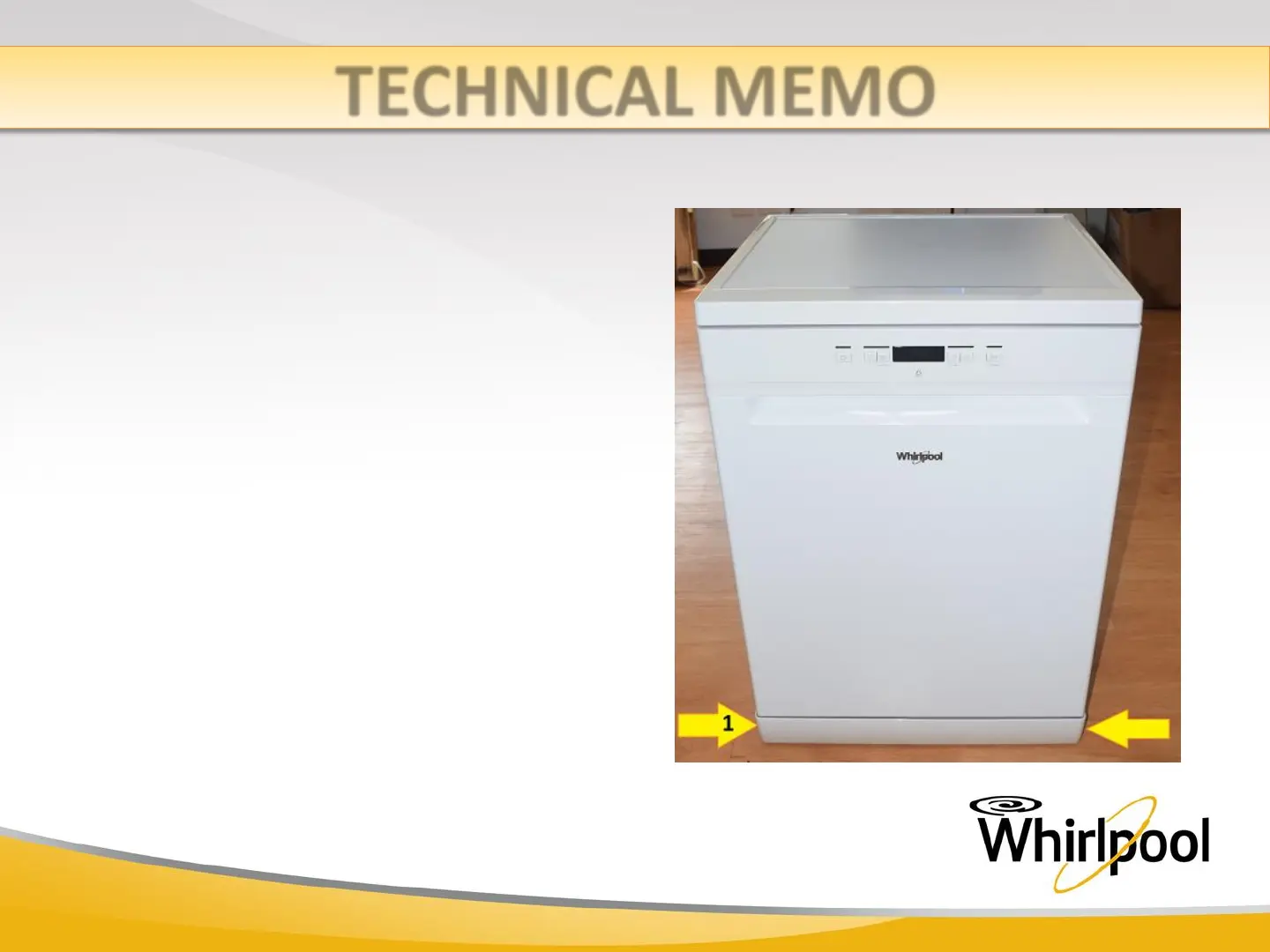

1. Remove the Plint Panel by pulling both
sides, Indicated at Arrow 1.
