UNPACKING
Carefully unpack and inspect your new 4926 for shipping damage. If the unit is damaged,
immediately notify the carrier and us. For U.S. orders, your unit was shipped with full
insurance unless you requested otherwise. The package should contain the following
items
1. The 4926 unit.
2. This manual.
3. Four rack mounting screws.
4. One user service card.
FRONT PANEL FEATURES
The 4926 intentionally does not have any front panel controls. Each input has a green (0
dB) and red (clip) LED which indicates the input level measured after the gain stage.
Each output has 2 green LEDs which indicate 0 dB and -10 dB levels at each individual
output. Power is indicated by a green LED. Figure 3 identifies all of the 4926 front panel
features.

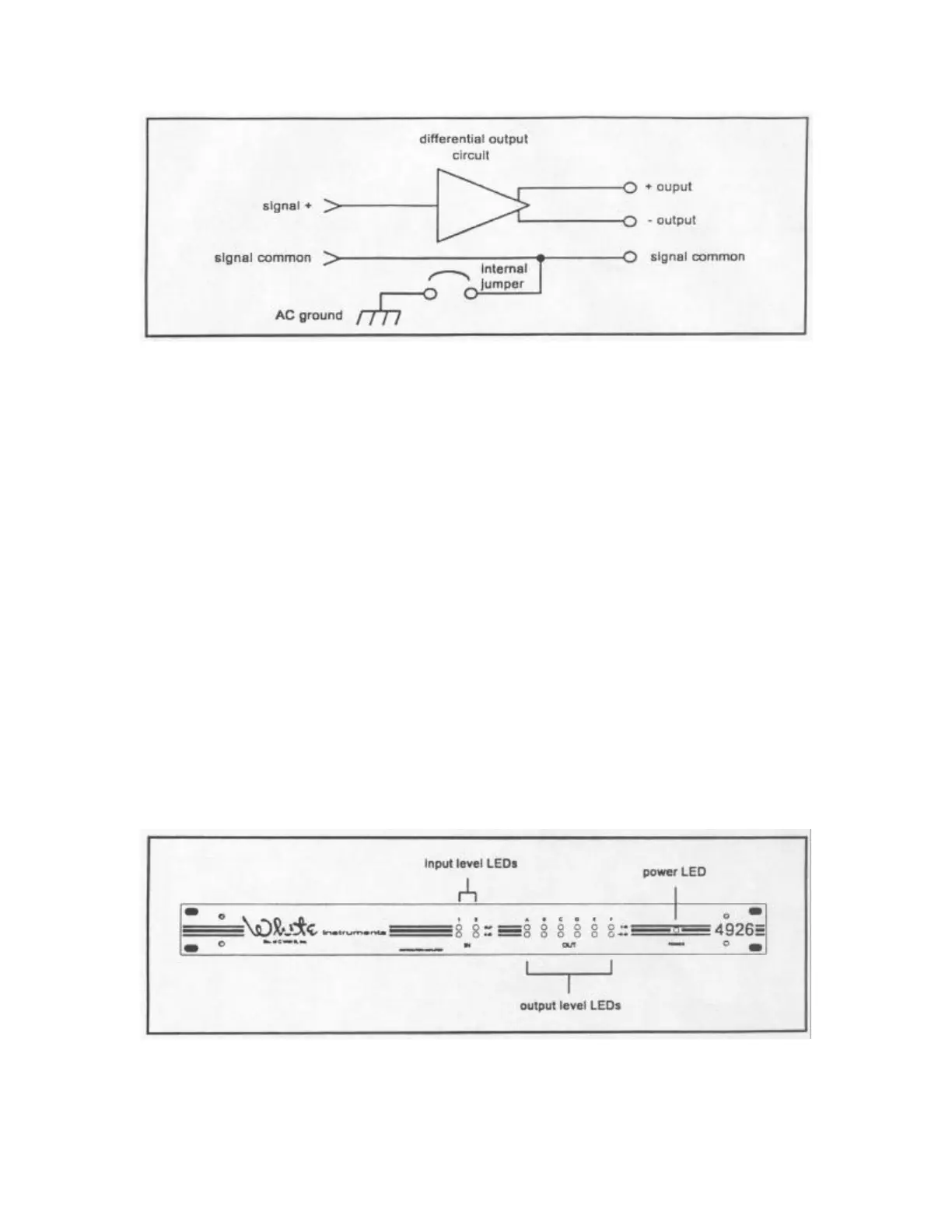

Figure 2 – Output Connections
Figure 3 – Front Panel Features
