IMPORTANT: Read safety rules and instructions carefully before operating equipment.
WHITE OUTDOOR PRODUCTS COMPANY P.O. BOX 361131 CLEVELAND, OHIO 44136-9722

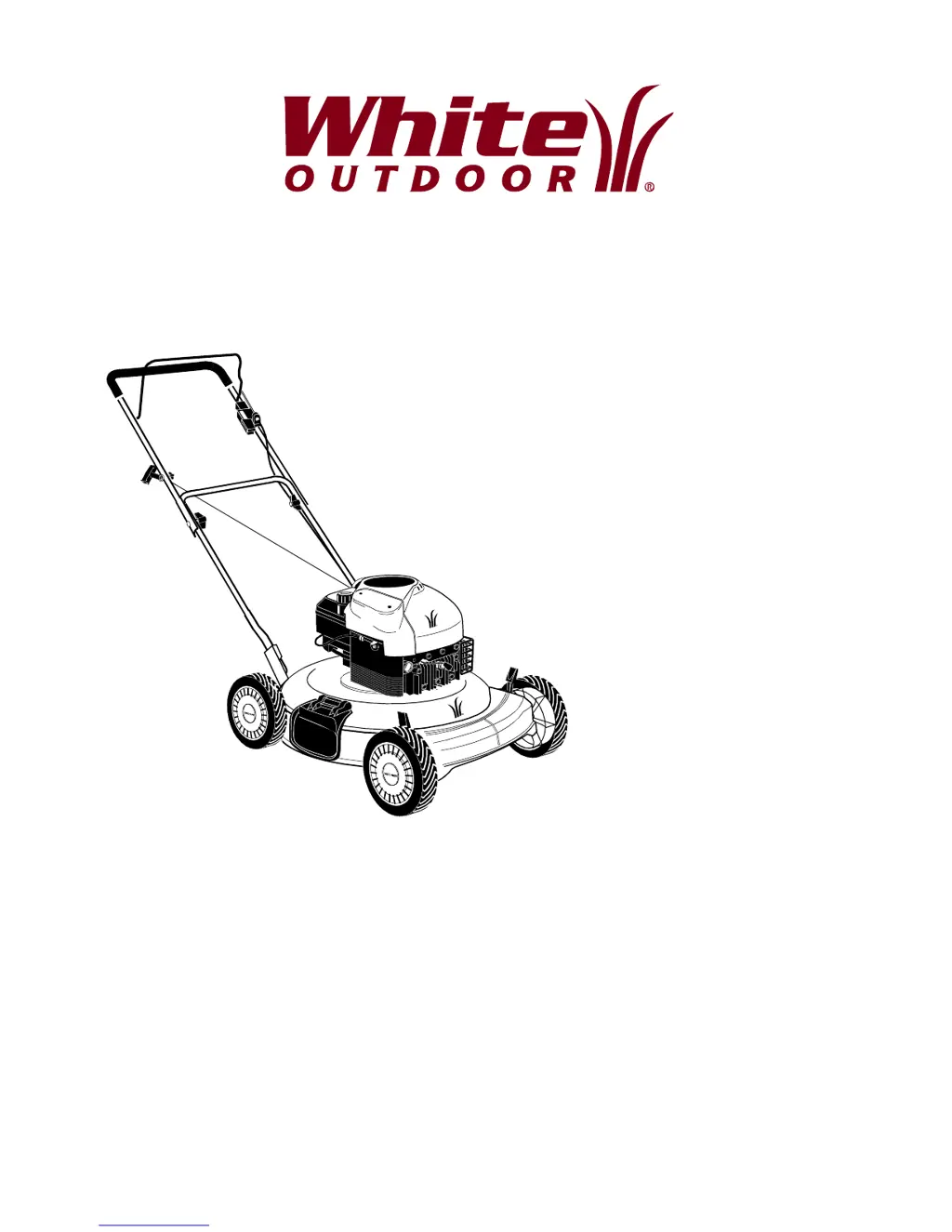

18” and 20”
Mulching Push
Mowers
Models
LC-106 and LC-40
PRINTED IN U.S.A.
Warning:
This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-
covered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting
applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.
In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have
similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized
service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-9722.
Operator’s Manual
FORM NO.
770-10058A.fm
(12/99)

Table of Contents

Questions and Answers

  • T
    Tabitha MillerAug 12, 2025
    How to start a White Outdoor LC-106 when the engine fails to start?
    • Y
      Yvonne KochAug 12, 2025
      If your White Outdoor Lawn Mower engine won't start, possible causes include a disengaged control handle (engage the blade control handle), a disconnected spark plug wire (connect the wire to the spark plug), an empty or stale fuel tank (clean the fuel line), or a blocked fuel line (clean, adjust gap, or replace). Also, the throttle control lever may not be in the correct starting position (move throttle lever to FAST or START position), or the engine may be flooded (wait for a while and crank the engine).
  • G
    greenejosephAug 15, 2025
    Why does my White Outdoor Lawn Mower engine run erratically?
    • K
      Kathryn GregoryAug 16, 2025
      An erratic engine in your White Outdoor Lawn Mower can stem from several issues. The unit might be running in the START position, so move the throttle lever to the FAST position. The spark plug wire could be loose, so connect and tighten it, also check the spark plug for fouling. A blocked fuel line or stale fuel could also be the culprit; clean the fuel line and fill the tank with clean, fresh gasoline.
  • M
    michael94Aug 20, 2025
    What to do if my White Outdoor LC-106 Lawn Mower engine overheats?
    • M
      michealclarkAug 20, 2025
      If your White Outdoor Lawn Mower engine is overheating, first check the engine oil level and fill the crankcase with the proper oil if it's low. Another cause could be restricted airflow. If this is the case, stop the engine, disconnect the spark plug wire, remove the blower housing, and clean it.
  • S
    Spencer CowanAug 23, 2025
    Why is my White Outdoor LC-106 experiencing excessive vibration?
    • J
      Jo MckeeAug 25, 2025
      Excessive vibration in your White Outdoor Lawn Mower could be due to a loose or unbalanced cutting blade (tighten the blade and adapter, and balance the blade) or a bent cutting blade (replace the blade).
  • M
    Marcus ChaseAug 27, 2025
    Why won't my White Outdoor Lawn Mower mulch grass?
    • S
      Samuel LopezAug 27, 2025
      If your White Outdoor Lawn Mower isn't mulching grass effectively, it might be due to several reasons: the engine speed may be too low (set the throttle between 3/4 and full throttle), the grass may be wet (wait until later to cut), or the grass may be excessively high (mow once at a high cutting height, then mow again at the desired height).
  • J
    Jerry LyonsAug 30, 2025
    What causes my White Outdoor LC-106 Lawn Mower to skip at high speed?
    • S
      Sierra JacksonAug 31, 2025
      An occasional skip or hesitation at high speed in your White Outdoor Lawn Mower could be due to the spark plug gap being too close. Adjust the gap to .030".
  • A
    Ashley SmithSep 3, 2025
    How to fix an uneven cut with my White Outdoor Lawn Mower?
    • J
      Jacob MyersSep 4, 2025
      An uneven cut with your White Outdoor Lawn Mower can be caused by incorrectly positioned wheels (place all four wheels in the same height position) or a dull blade (sharpen or replace the blade).
  • J
    James LawsonSep 7, 2025
    What causes a White Outdoor LC-106 Lawn Mower to idle poorly?
    • K
      kaitlin55Sep 7, 2025
      Poor idling in your White Outdoor Lawn Mower can occur if the spark plug is fouled, faulty, or has a gap that is too wide. Reset the gap to .030" or replace the spark plug.

Summary

Important Safe Operation Practices

Safe Slope Operation Guidelines

Instructions and warnings for operating the mower on slopes, including angle limits.

Child Safety Precautions

Guidelines for keeping children away from the mower and preventing them from operating it.

Safe Servicing Practices

Operators Responsibility and Safety Devices

Using the Slope Gauge

Assembling Your Lawn Mower

Connecting Mower Handles

Know Your Lawn Mower Controls

Blade Control Handle Operation

Explanation of the blade control handle's function as a safety device.

Throttle Control Usage

Operating Your Lawn Mower

Starting the Engine and Engaging Blade

Step-by-step guide to safely start the engine and engage the cutting blade.

Stopping the Engine and Blade

Procedure for safely stopping the engine and cutting blade.

Tips for Rotary Mower Operation

Making Adjustments to Your Mower

Adjusting Cutting Height

Adjusting Handle Height

Service and Maintenance

Maintaining the Cutting Blade

Instructions for removing, sharpening, balancing, and replacing the cutting blade.

Trouble Shooting Guide

Parts List for Models LC-106 and LC-40

White Outdoor LC-106 Specifications

General IconGeneral
BrandWhite Outdoor
ModelLC-106
CategoryLawn Mower
LanguageEnglish
