A. Mount base and adaptor plate: Mount base to wall using screws
provided (see Fig. 1).
B. Attach wires: Attach one wire to R and the other wire to W on
base.
MOUNTING AND WIRING
SET HEAT ANTICIPATOR
Set anticipator to match the setting of your old thermostat you noted
in Step 3, or, the anticipator should be set to match the current rat-
ing stamped on your main heating control. The heat anticipator is
adjustable from 0.15 to 1.2 amps. Adjust the anticipator by rotating
the contact arm (see fig. 2). The anticipator setting is indicated by
the numbers on the base that the pointer points to. If you are unsure
where to set the anticipator contact the heater manufacturer for a
recommended setting.
Move the pointer counterclockwise to lengthen heating system
cycles; move clockwise to shorten heating cycles. Adjustments
should not be greater than 1/2 marking at a time.
Snap on Cover: Carefully align the cover with the base and snap
the cover onto the base.
After power is turned on, slide temperature lever to desired setting.
To turn heat off, slide lever all the way to the left until it clicks.
ATTENTION! This product does not contain mercury. However,
this product may replace a unit which contains mercury.
Do not open mercury cells. If a cell becomes damaged, do not touch
any spilled mercury. Wearing non-absorbent gloves, take up the
spilled mercury and place into a container which can be sealed. If a
cell becomes damaged, the unit should be discarded.
Mercury must not be discarded in household trash. When the unit
this product is replacing is to be discarded, place in a suitable con-
tainer. Refer to www.Thermostat-recycle.org for location to send the
product containing mercury.
REMOVING OLD THERMOSTAT
CONTINUED FROM FIRST PAGE

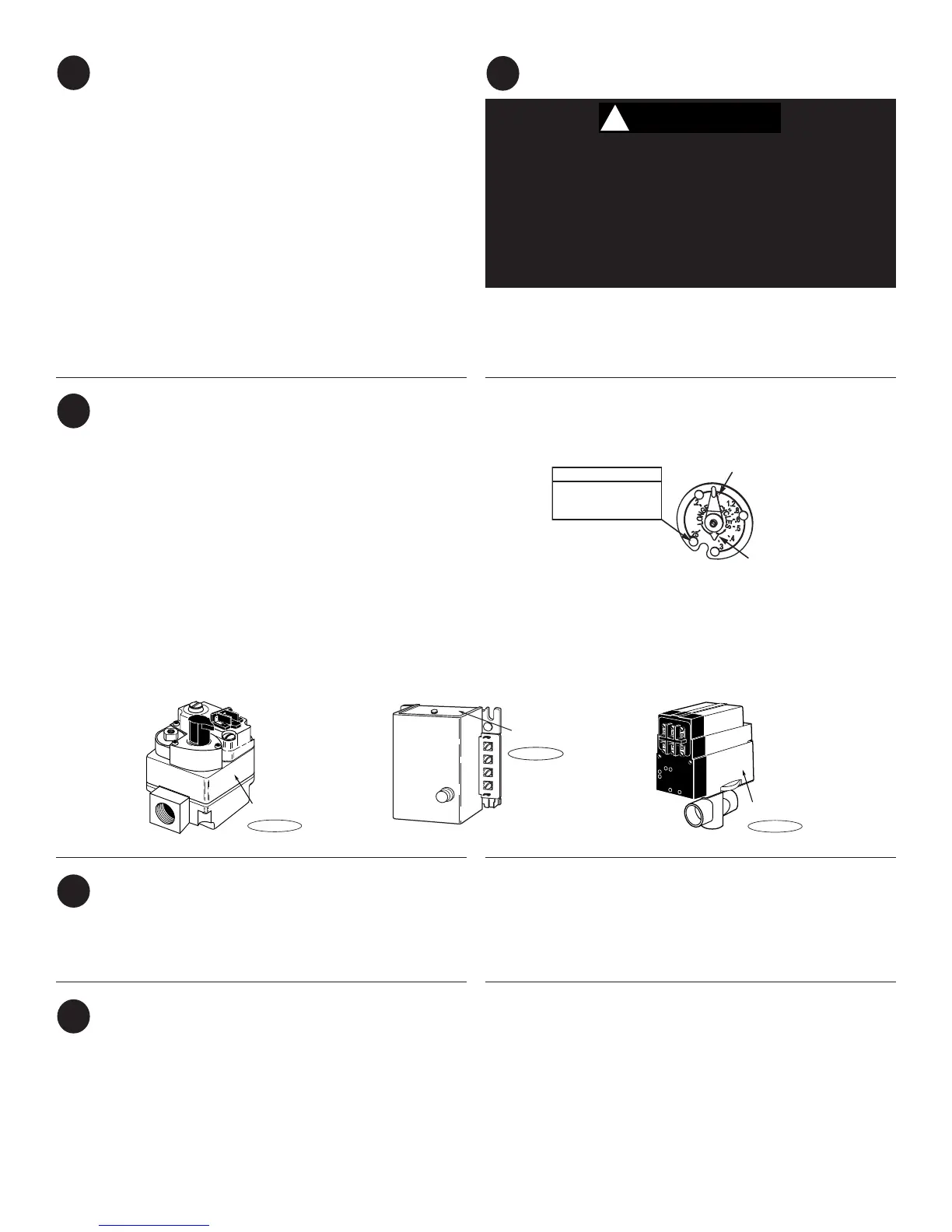

24VAC
50/60 Hz
.35 Amps
Typical Zone Valve
24VAC
50/60 Hz
.23 Amps
Typical Gas Valve
24VAC
50/60 Hz
.43 Amps
Typical Oil Primary
ELECTRICAL DATA
Switch Rating ........................24 VAC (30 VAC max.)
Heating ................................... 0.15 to 1.2 Amps
Switch Action ........................Snap Action
Anticipator Rating:
Heating ................................... Adjustable from 0.15 to 1.2 Amps
SPECIFICATIONS
NEW THERMOSTAT OPERATION
THERMAL DATA:
Temperature Range ............... 50°F to 90°F (10°C to 32°C)
Operating Humidity Range ... 0 – 90% noncondensing
Figure 2. Anticipator adjustment
Rotate contact arm
to adjust heat anticipator
Arrow points to the
current rating of
the primary coontrol
NOTE
For Milivolt Application:
Rotate contact arm
to rest on this rivet.
Do not use on circuits exceeding specified voltage. Higher
voltage will damage control and could cause shock or fire
hazard.
Do not short out terminals on gas valve or primary control
to test. Short or incorrect wiring will damage thermostat and
could cause personal injury and/or property damage.
Thermostat installation and all components of the system
shall conform to Class II circuits per the NEC code.
