White-Westinghouse WAS(C,E)09C5CRKW User Manual

Attention

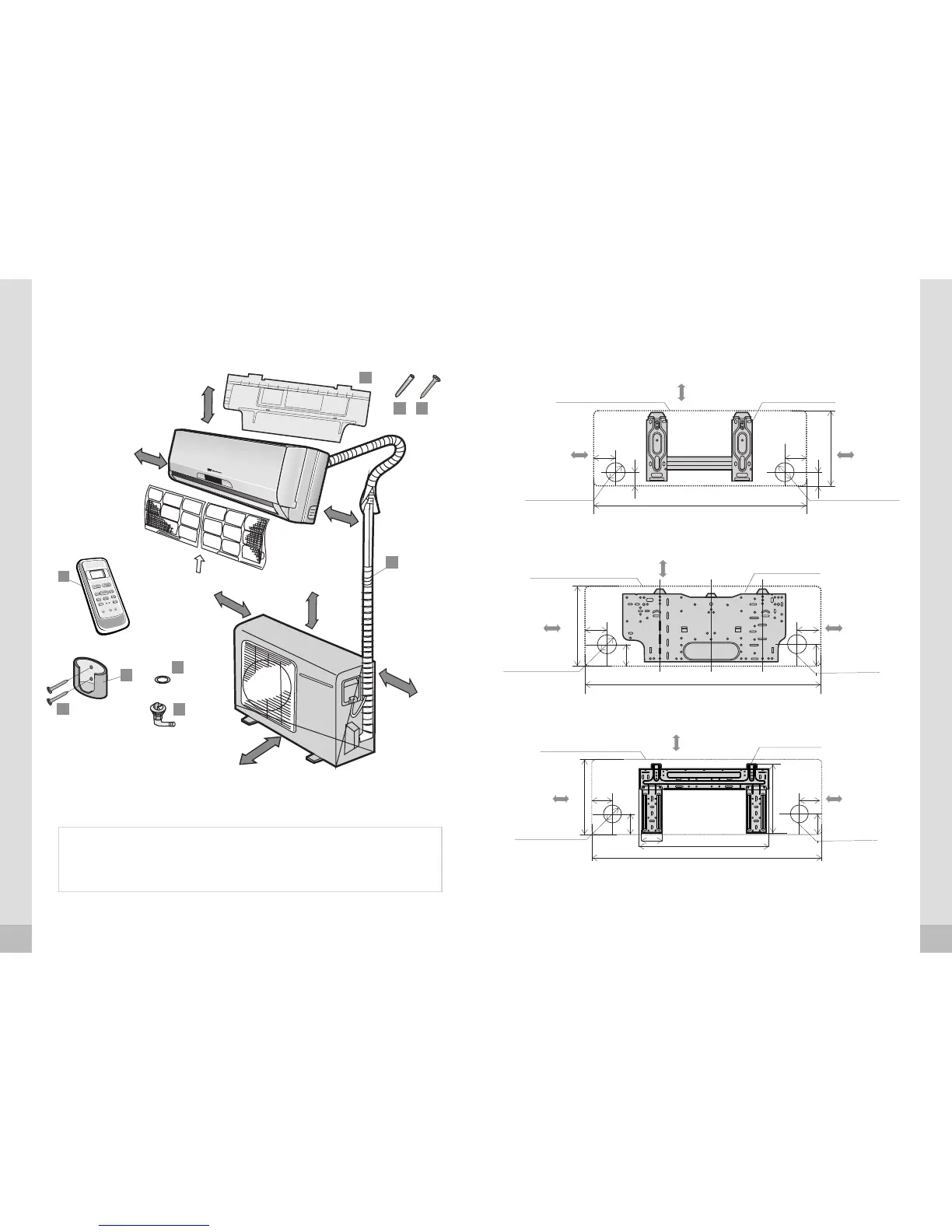

Indoor unit installation
Installation plates and dimensions
1. This illustration is for explanation purposes only.
2. Copper lines must be insulated independently
7
8
5
4
2
3
1
Indoor unit
Outdoor
unit
6
6
More than 12cm
More than 12cm
Air filter
More than 200cm
More
than 60cm
More than 30cm
More than 60cm
More than 15cm
A
B
C
9
11
Parts list
12
Indoor unit installation
A
above 150mm from
the ceiling
Installation plate
indoor unit outline
above 120mm
from the wall
above 120mm
from the wall
Refrigerant pipe
hole (left) Ø 65
Refrigerant pipe
hole (right) Ø 65
B
45
90
40 40
Models < 12000 Btu's (A: 710, B: 250)
Models 12000 Btu's (A: 790, B: 265)
above 150mm
from the ceiling
Indoor unit outline
Installation plate
above 120mm
from the wall
above 120mm
from the wall
Refrigerant pipe
hole (left) Ø 65
Refrigerant pipe
hole (right) Ø 65
45
45
293
90
45
920
(A)
>
Models 12000 Btu's
(B)
above 150mm
from the ceiling
Indoor unit outline
Installation plate
above 120mm
from the wall
above 120mm
from the wall
Refrigerant pipe
hole (left) Ø 65
Refrigerant pipe
hole (right) Ø 65
45
45
293
90
45
920
272
80
489

White-Westinghouse WAS(C,E)09C5CRKW Specifications

General

Brand	White-Westinghouse
Model	WAS(C, E)09C5CRKW
Category	Air Conditioner
Language	English
