Piping and wrapping
1. Bundle the tubing, connecting
cable, and drain hose with tape
securely, evenly as shown.
2. Because the condensed water
from rear of the indoor unit is
gathered in ponding box and is
piped out of room. Do not put
anything else in the box.
1. Connect the indoor unit first, then the outdoor unit.
2. Do not allow the piping to let out from the back of the indoor unit.
3. Be careful not to let the drain hose slack.
5. Heat insulated both of the auxiliary piping.
6. Be sure that the drain hose is located at the lowest side of the bundle. Locating
at the upper side can cause drain pan to overflow inside the unit.
7. Never intercross nor intertwist the power wire with any other wiring.
8. Run the drain hose sloped downward to drain out the condensed water
smoothly.
1. Install the outdoor part of the unit
on a rigid surface to avoid excess
noise and vibration.
2. Direct the air vent toward an area
without obstacles.
3. Install the unit so that it is exposed
to as little wind as possible,
especially in areas where it is
frequently windy.
4. If the installation site is exposed to
heavy winds, such as in coastal
areas, place the unit along the
widest part of the wall or use
protective plates.
7. If need suspending installation, the
installation bracket should accord
with technique requirement in the
installation bracket diagram. The
installation wall should be solid
brick, concrete or the same intensity
construction, or actions to reinforce,
damping supporting should be
taken. The connection between
bracket and wall, bracket and the
air conditioner should be firm,
stable and reliable.
6. Be sure there is no obstacle which
block radiating air.

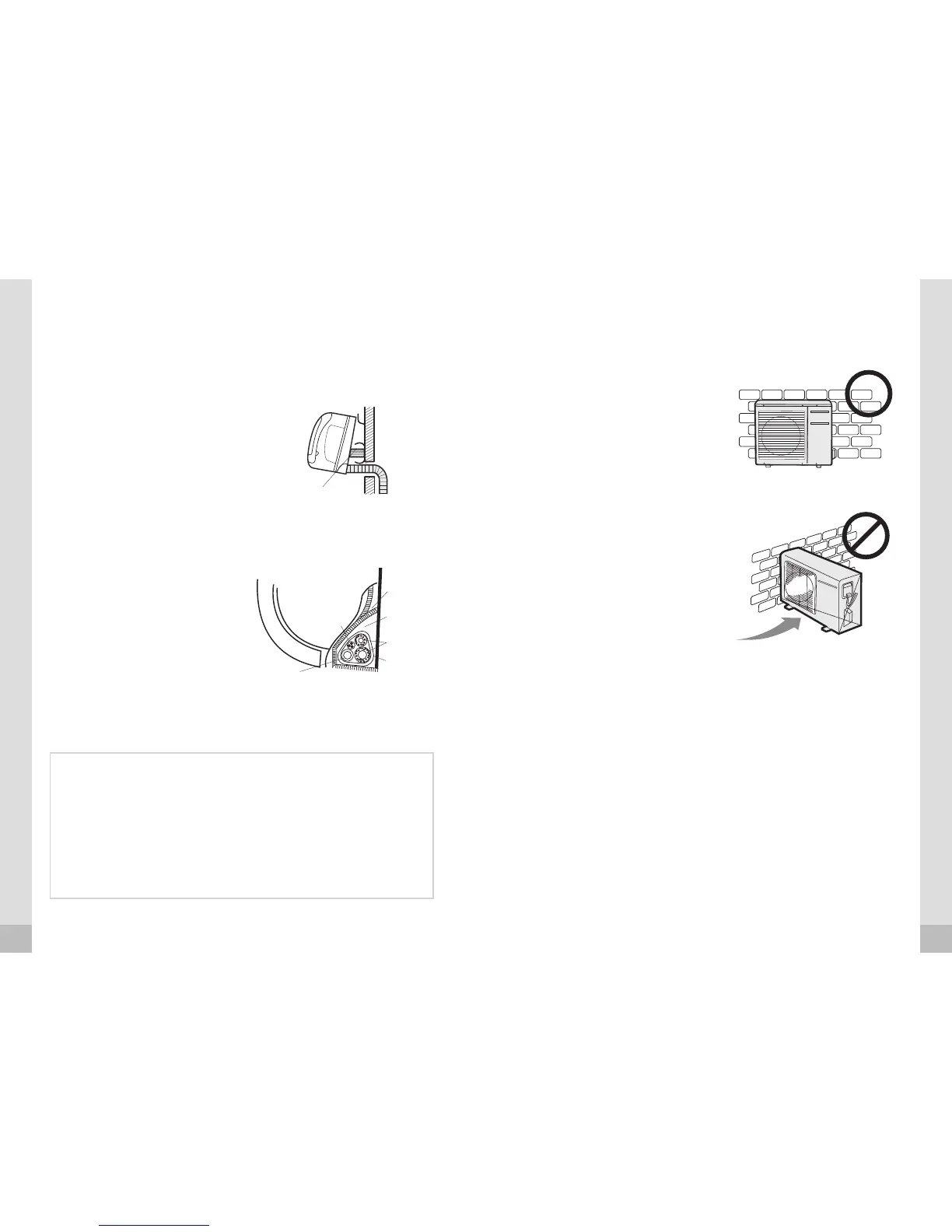

Outdoor unit installation
Strong wind
Cushioning
material
3. Piping can easily be made by
lifting the indoor unit with a
cushioning material between the
indoor unit and the wall. Get it
out after finish piping.
4. Push the lower part of the indoor
unit up on the wall, Then move
the indoor unit from side to side,
up and down to check if it is
hooked securely.
15
Indoor unit installation
16
Outdoor unit installation
Indoor unit
Cable
de conexión
Ponding
box
Pipe room
Wrapping
belt
Drain hose
Connective
pipe
