Attention

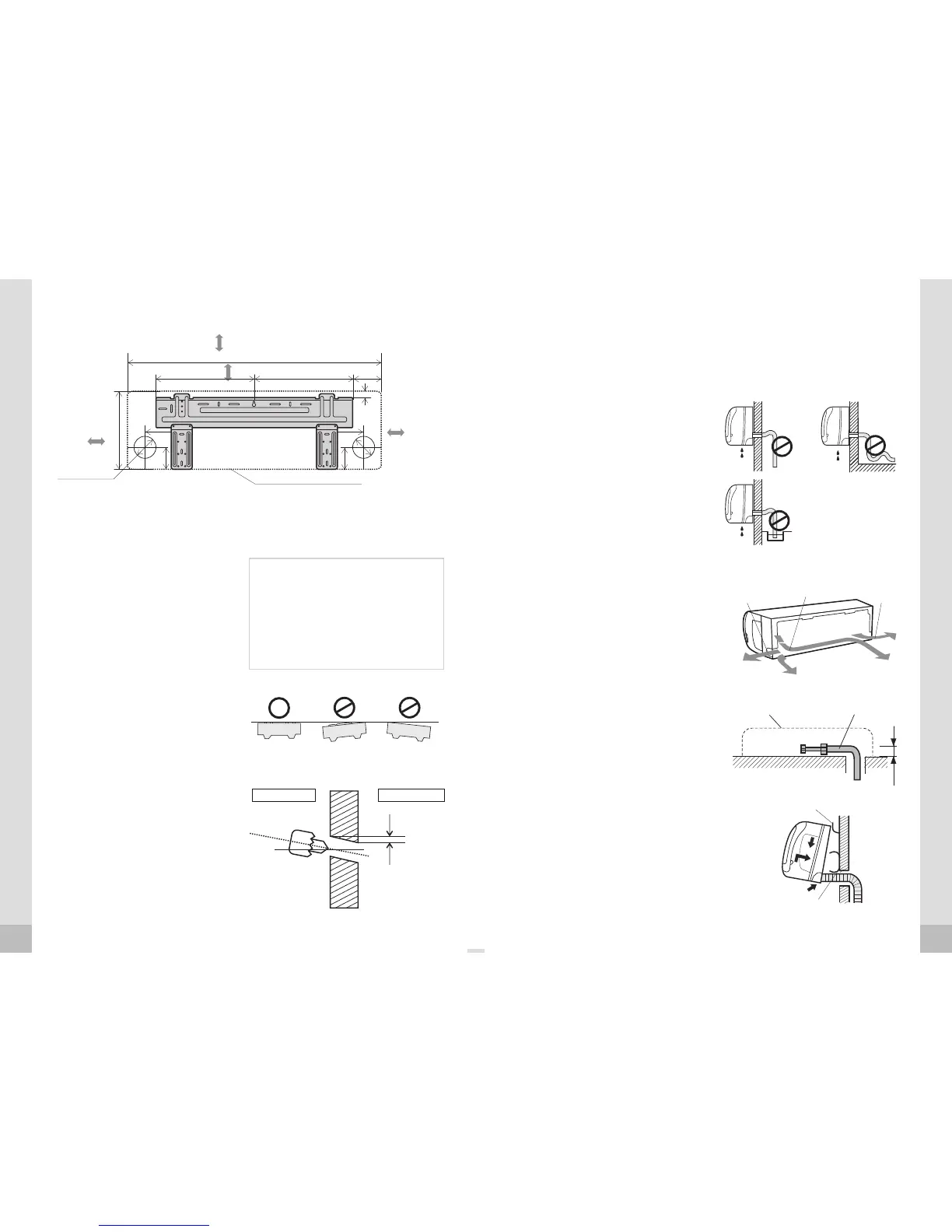

Fixing the Installation Plate
Drilling the Hole
1. Install the installation plate
horizontally over the structural
parts on the wall using the spaces
indicated on the plate, as shown
in the figure above.
2. In the case of tiled, concrete or
similar walls, create 5 mm-
diameter holes. Place anchorage
supports for the appropriate
assembly screws.
3. Fix the installation plate to the
wall with 8 A type screws.
1. Determine the position of the
hole for the pipe using the
installation plate and drill the
pipe hole so that it is titled slightly
downward.
2. Always use a pipe cover with an
opening when drilling a metal
bar.
Installation plate
Fit the Installation Plate and drill holes
in the wall according to the wall
structure and corresponding mounting
points on the installation plate
(Dimensions are in “mm” unless
otherwise stated).
Wall
Indoor unit
Outdoor unit
5-7mm
Connective pipe and drainage installation
Drainage
1. Run the drain hose sloping
downward. Do not install the drain
hose as illustrated below.
2. When connecting extension drain
hose, insulate the connecting part
of extension drain hose with a
shield pipe, do not let the drain
hose slack.
Connective pipe
1. For the left-hand and right-hand
piping, remove the pipe cover from
the side panel. Explain to clients that
the pipe cover must be kept as it may
be used when relocate the air
conditioner to any other place.
2. For the rear-right-hand and rear-left-
hand piping, install the piping as
shown. Bend the connective pipe to
be laid at 43mm height or less from
the wall. Fix the end of the
connective pipe.
13 14
Indoor unit installation
Indoor unit installation
1. Pass the piping through the hole in
the wall.
2. Put the upper claw at the back of
the indoor unit on the upper hook of
the installation plate, move the
indoor unit from side to side to see
that it is securely hooked.
Upper hook
Lower hook
Fastening the Indoor Unit
above 150mm from ceiling
above 120mm
from wall
1080
330
above 120mm
from wall
130
108432432
130
22
Refrigerant pipe
hole (left) Ø 95
50
50
Indoor unit outline
Models 24000 Btu's
Do not put the end
of drain hose into water.
Do not block
water flow
by a rise.
Do not block
water flow
by a rise.
Right back
piping
Pipe cover
(left)
Pipe
holder
Pipe cover
(right)
Right piping
Connective
pipe
Indoor unit
outline
43mm
To Next Page
