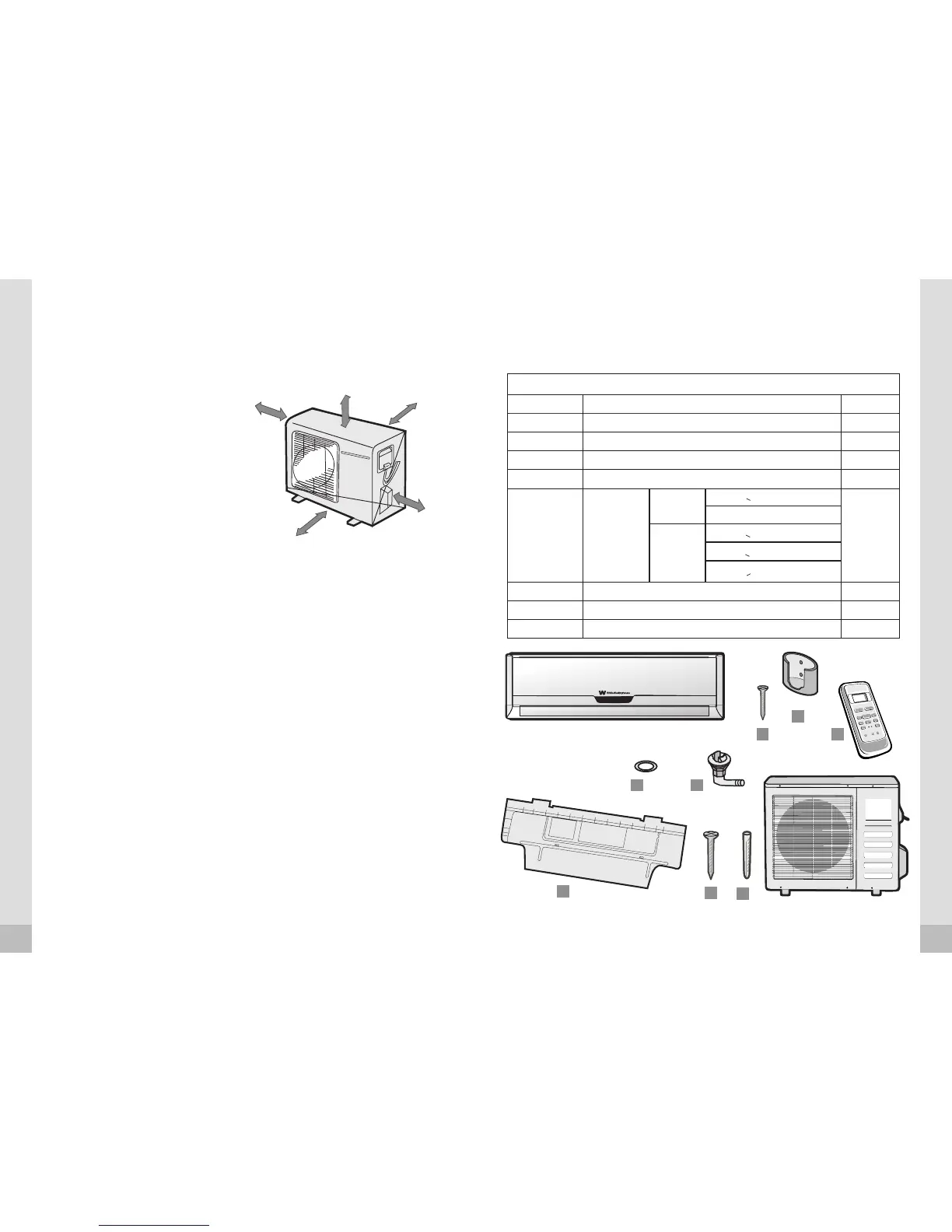

Outdoor Unit
t1. The outdoor unit must be
installed at a convenient site
that is not exposed to strong
winds. The site should be dry
and well ventilated.
2. The site must support the weight
of the outdoor unit and allow
for vertical installation.
3. There must not be the possibility
of increased noise and vibration
at the site.
4. The unit must be installed at a
site where the noise produced
by its operation and air
discharge does not disturb the
neighbors or animals.
5. The site cannot have any
leakage of flammable gases.
6. The site must allow for a piping
extension of no less than 5
meters (16 feet) and for pipes
measuring at least 10 meters
(33 feet) in length.
7. The site must provide enough
space around the unit, as shown
in the diagram.
8. Children must not be able to
access the installation site.
More
than 60cm
More
than 30cm
More
than 200cm
More
than 30cm
More
than 60cm
Parts list
2
54
3
1
9
8 7
Indoor unit
Outdoor unit
09
Choosing the installation site
10
Parts list
NUMBERING PART NAME
Installation plate
Clip anchor
Self-tapping screw A ST3.9x25
Seal
Drain Joint
QTY.
1
2
3
4
5
6
1
2
1
1
8
8
1
1
Remote controller
Self-tapping screw B ST2.9x10
Remote Controller holder
Connecting
pipe
assembly
Liquid side
Ø6,35
Gas side
Ø9,53
Parts you must
purchase
(> models 18000 Btu's)
(< models 18000 Btu's)
Ø12,7
Ø9,53
Ø16
(< models 18000 Btu’s)
(< models 9000 Btu’s)
(> models 24000 Btu’s)
7
8
9
