White 1550 - Shuttle Assembly Maintenance; Shuttle Cleaning and Reassembly

4

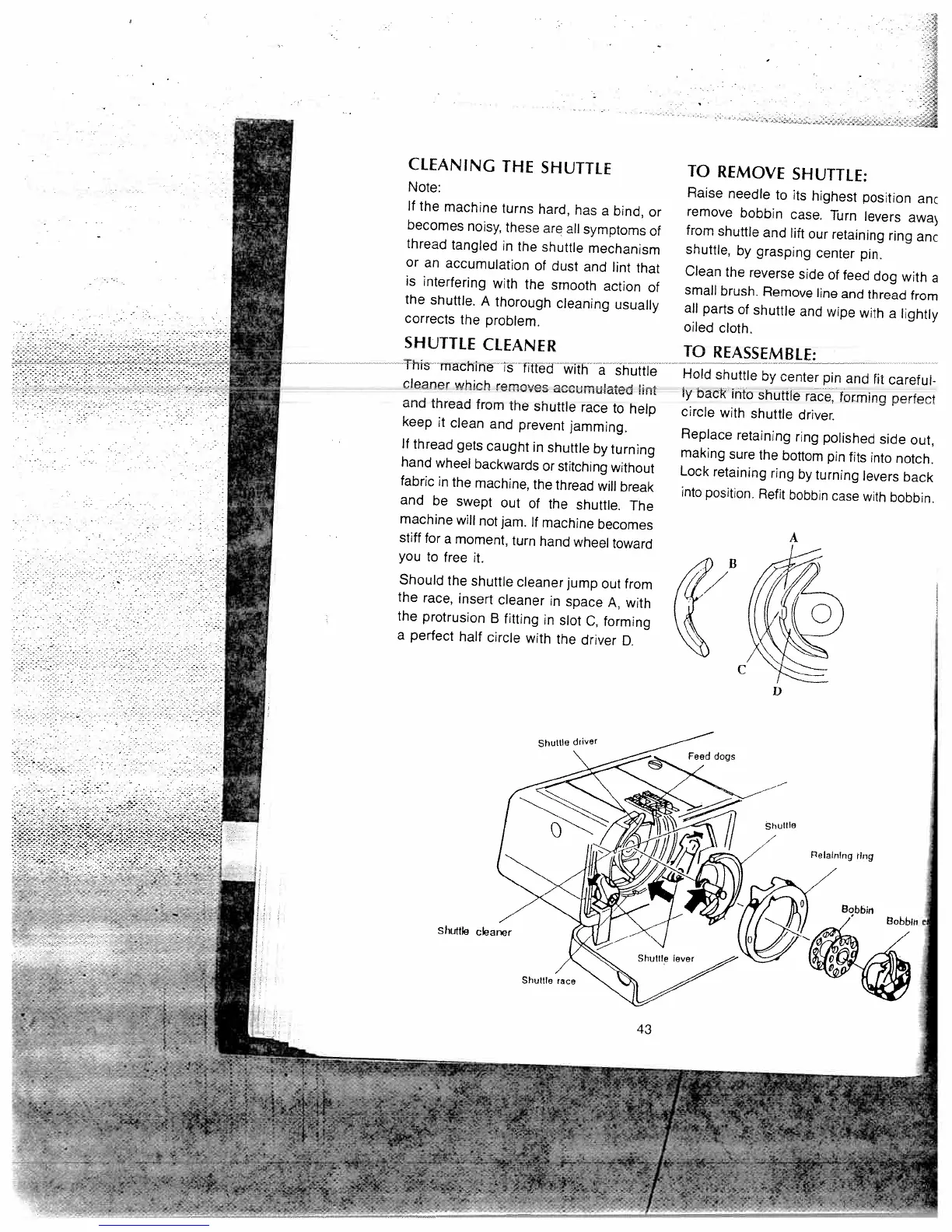

CLEANING
THE
SHUTTLE
Note:
If
the
machine
turns
hard,
has
a
bind,
or
becomes
noisy,
these
are
all
symptoms
of
thread
tangled
in
the
shuttle
mechanism
or
an
accumulation
of
dust
and
lint
that
is
interfering
with
the
smooth
action
of
the
shuttle.
A
thorough
cleaning
usually
corrects
the
problem.
SHUTTLE
CLEANER
This
machine
is
fitted
with
a
shuttle
cleaner
which
removes
accumulated
tint
and
thread
from
the
shuttle
race
to
help
keep
it
clean
and
prevent
jamming.
If
thread
gets
caught
in
shuttle
by
turning
hand
wheel
backwards
or
stitching
without
fabric
in
the
machine,
the
thread
will
break
and
be
swept
out
of
the
shuttle.
The
machine
will
not
jam.
If
machine
becomes
stiff
for
a
moment,
turn
hand
wheel
toward
you
to
free
it.
Should
the
shuttle
cleaner
jump
out
from
the
race,
insert
cleaner
in
space
A,
with
the
protrusion
B
fitting
in
slot
C,
forming
a
perfect
half
circle
with
the
driver
0.
TO
REMOVE
SHUTTLE:
Raise
needle
to
its
highest
position
anc
remove
bobbin
case.
Turn
levers
awa
from
shuttle
and
lift
our
retaining
ring
anc
shuttle,
by
grasping
center
pin.
Clean
the
reverse
side
of
feed
dog
with
a
small
brush.
Remove
line
and
thread
from
all
parts
of
shuttle
and
wipe
with
a
lightly
oiled
cloth.
TO
REASSEMBLE:
Hold
shuttle
by
center
pin
and
fit
careful
ly
back
into
shuttle
race,
forming
perfect
circle
with
shuttle
driver.
Replace
retaining
ring
polished
side
out,
making
sure
the
bottom
pin
fits
into
notch.
Lock
retaining
ring
by
turning
levers
back
into
position.
Refit
bobbin
case
with
bobbin.
A
1
Shuitie
driver
I)
Shuttle
cleaner
Refaining
ring
43
