White 1630 - MACHINE MAINTENANCE AND CARE; Shuttle Area Maintenance; General Oiling Points

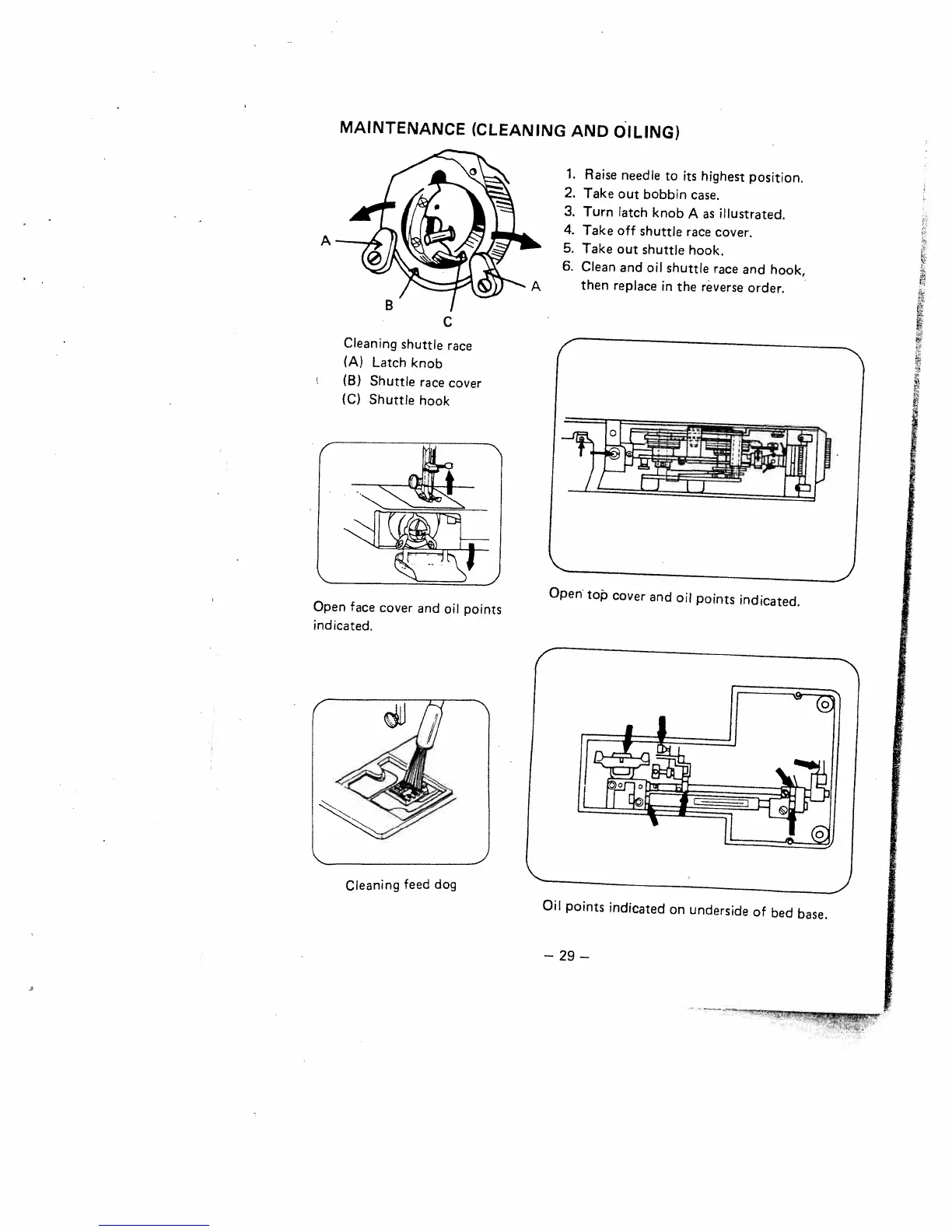

MAINTENANCE
(CLEANING
AND
OILING)
Cleaning
shuttle
race
(A)
Latch
knob
(B)
Shuttle
race
cover
(C)
Shuttle
hook
1.
Raise
needle
to
its
highest
position.
2.
Take
out bobbin
case.
3.
Turn
latch
knob
A
as
illustrated.
4.
Take
off
shuttle
race
cover.
5.
Take
out
shuttle
hook.
6.
Clean
and
oil
shuttle
race
and
hook,
then
replace
in
the reverse
order.
A
C
I
r
I
E1fl
Open
face
cover
and
oil
points
indicated.
J
Open
top
cover
and
oil
points
indicated.
I
Cleaning
feed dog
Oil
points
indicated
on
underside
of
bed
base.
—
29
—
