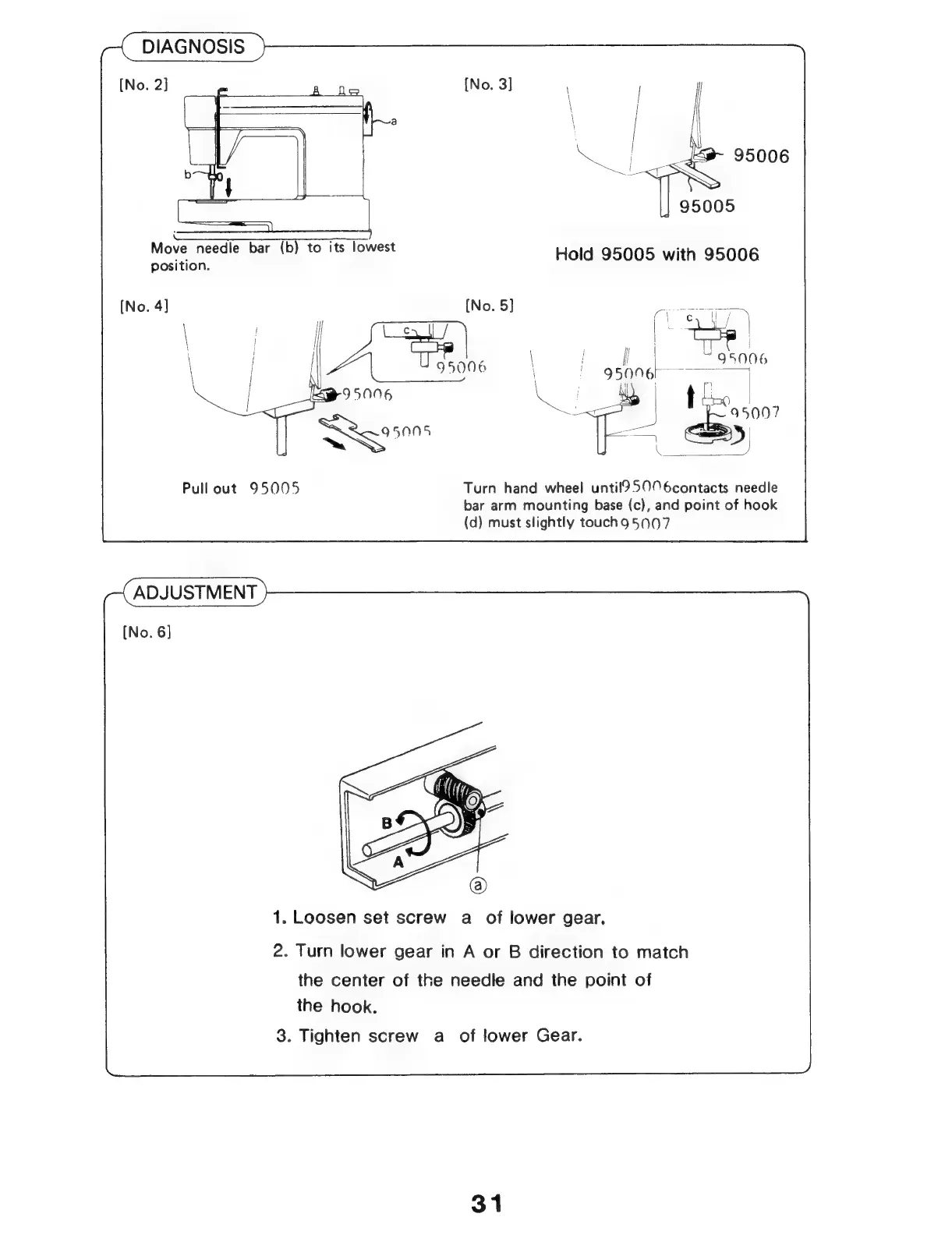

White 2000 Series - Needle Swing Adjustment

DIAGNOSIS
iN
<s- 95006
i
|
>
Sad
95005
Se
Move needle bar (b) to its lowest
position.
Hold
95005
with
95006
(No. 4]
(No. 5]
Cc |
; 95006 =| | gah
9506
| -
95016
95005
Pull out 95005 Turn hand wheel untilI950%6contacts needle
bar arm mounting base (c), and point of hook
(d) must slightly touch9o 5007
ADJUSTMENT
1. Loosen set screw a of lower gear.
2. Turn lower gear in A or B direction to match
the center of the needle and the point of
the hook.
3. Tighten screw a of lower Gear.
31
