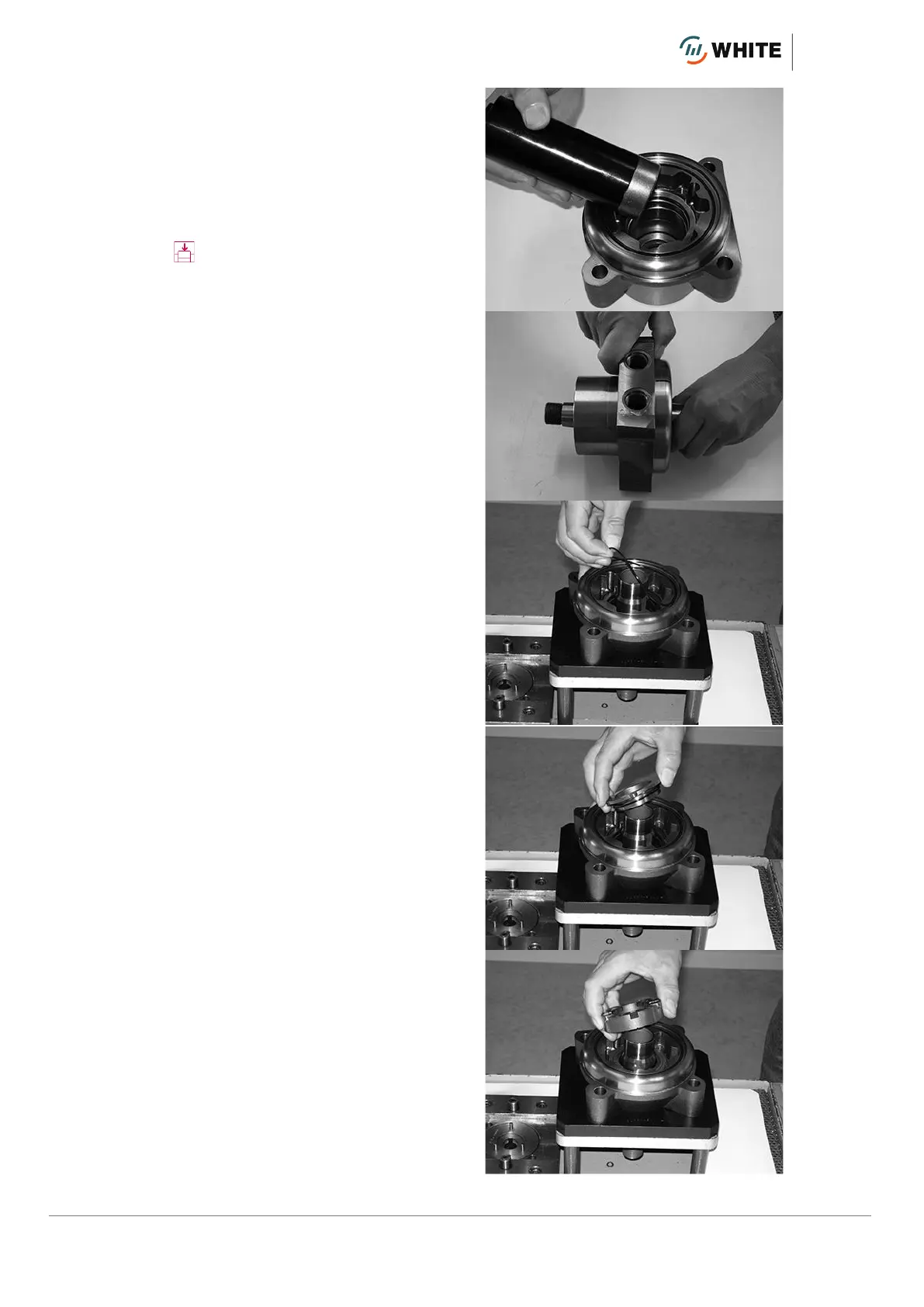

3. Place the needles in the outer ring and
hold them in place with grease. Now
place the whole bearing in the
housing. Press the bearing into
posion with mandrel SJ 151-9000- 18
4. Carefully insert sha through housing.
Note:
Cover the groove with installaon sleeve.
5. Place O-ring (5) in housing
Note:
Remember about the new O-ring
O-ring dimensions:
• Series 0: 96 • 2 mm
• Series 1 and 2: 100.5 • 2 mm
6. Place spring washer (13) on balance
plate (14),
insert O- ring (12) in recess and
lubricate with grease. Place balance
plate lightly in posion so that it
engages. Be careful not to damage the
O-ring.
Note:
Remember about the new O-ring
7. Place disc valve (15) on the sha
upwards so that the long tap on the
disc valve engages with the slot in the
sha.
