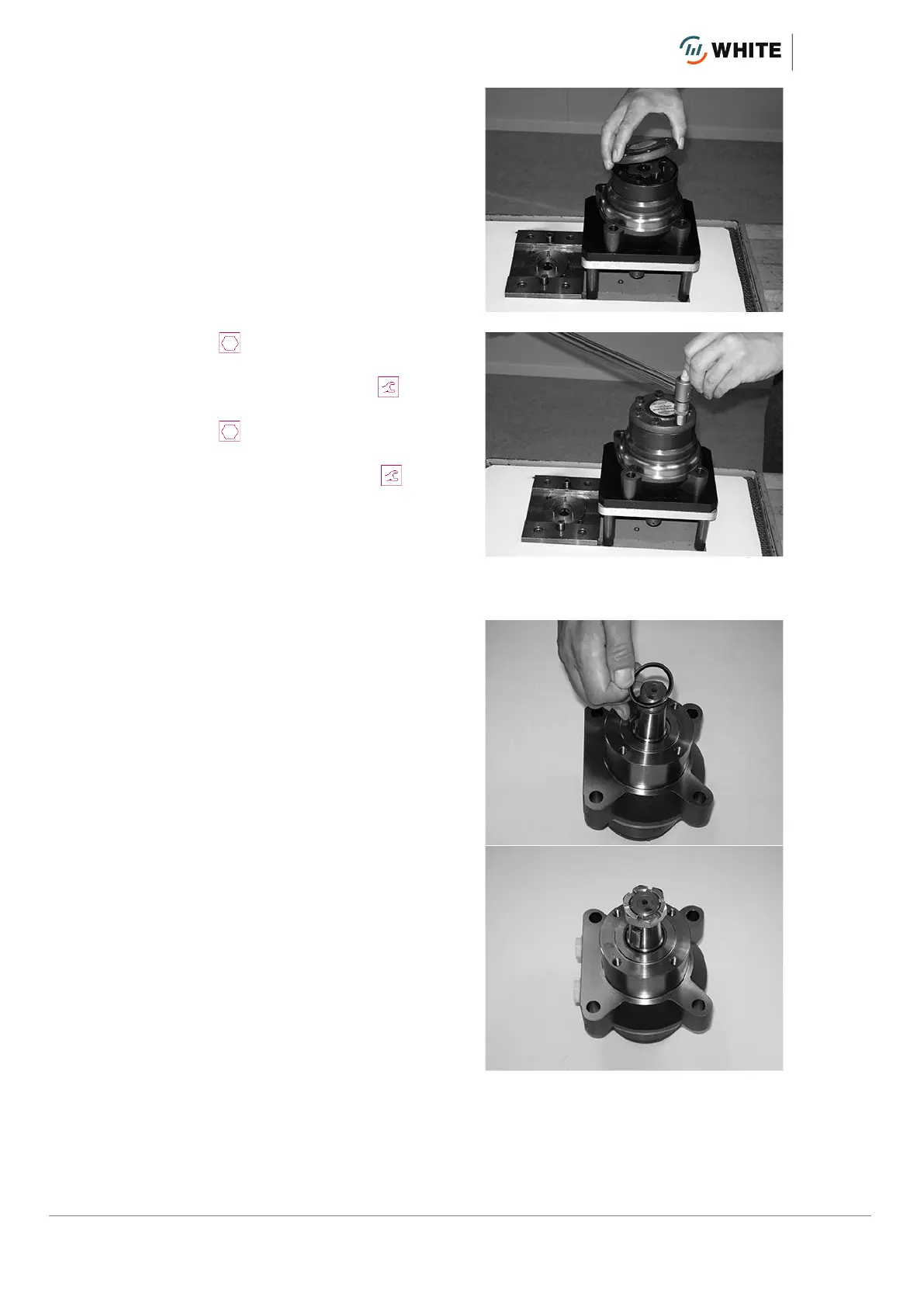

13. Place the end cover (22) on the gear
wheel set and line up the screw holes
14. OMEW series 0 and 1
With a 13 mm socket spanner ghtens
the bolts. (25)
Tightening torque: 35 - 40 N • m OMEW
series 2
With a 16 mm socket spanner ghten
the bolts. (25)
Tightening torque: 75 – 80 N • m
Note:
Remember about the new O-ring
Washer dimensions:
• Series 0 and 1: 8.2 •15.2 •1.6
• Series 2: 10.5 • 20 • 2
15. Fit the dust seal ring (3) into place with
a plasc hammer and suit able
mandrel.
Note:
Remember about the new dust seal
16. Mount the woodru key (10), nut (1),
plasc plugs (26) and washer (2).
Note:
SAE versions do not have washer
